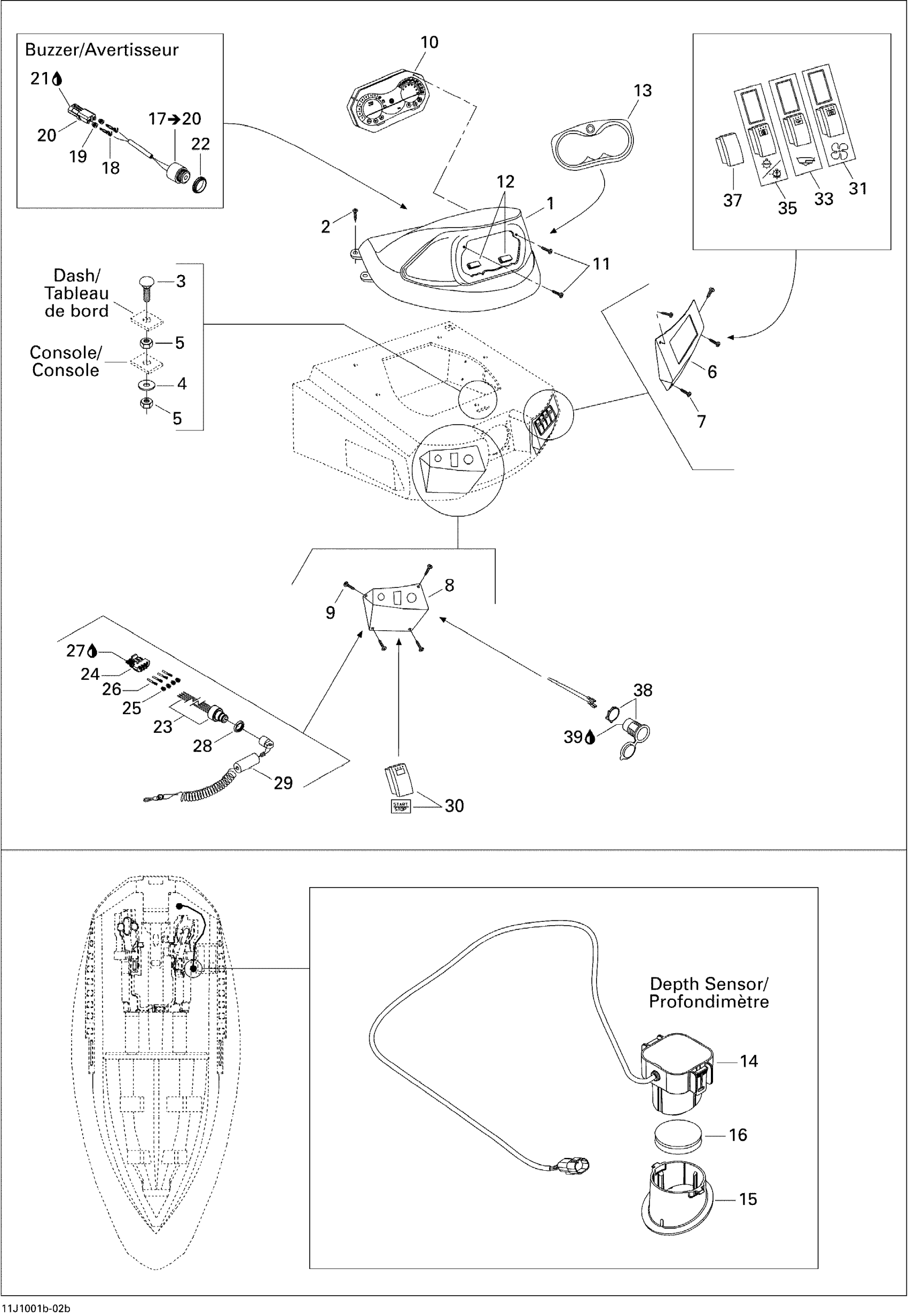

Sea-doo 150 Speedster 155 (1503NA), 2010 Electrical Accessories 2 Diagram

#

Description
Price

1

DASH - Call your local BRP dealership

204471300

Unavailable

2

Phillips Tapping Screw

204100058

$0.66

3

Elevator Bolt

204000130

Unavailable

4

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

5

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

6

RH SWITCH PANEL - Call your local BRP dealership

204471302

Unavailable

7

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

8

LH SWITCH PANEL - Call your local BRP dealership

204471301

Unavailable

9

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

10

Cluster Gauge

204471378

$899.99

11

Hex. Flange Screw K40 X 16

241141660

$1.48

12

TRIM - Call your local BRP dealership

293830113

Unavailable

13

Gauge Bezel, Chrome

278002144

$38.99

14

DEPTH SENSOR - Call your local BRP dealership

278001995

Unavailable

15

Depth Sensor Base

278001994

$27.99

16

Gel Pad

293550042

$21.99

17

Buzzer Ass'y

204470913

$92.99

18

Male Terminal | XT Models

278000222

$3.19

19

Wire Seal

278000218

$4.39

20

Female Housing, 2 Circuits

278000217

$9.59

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Buzzer Nut

278000707

Unavailable

23

Safety Switch

278002351

$114.99

24

Male Housing, 4 Circuits

278000395

$15.99

25

Wire Seal

278000218

$4.39

26

Female Terminal

278000223

$3.19

27

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

28

Safety Nut (DESS Switch)

278002963

$3.28

29

Safety Lanyard

204471206

$56.99

30

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

31

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

33

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

35

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

37

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

38

DC Outlet

710001248

$37.99

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
