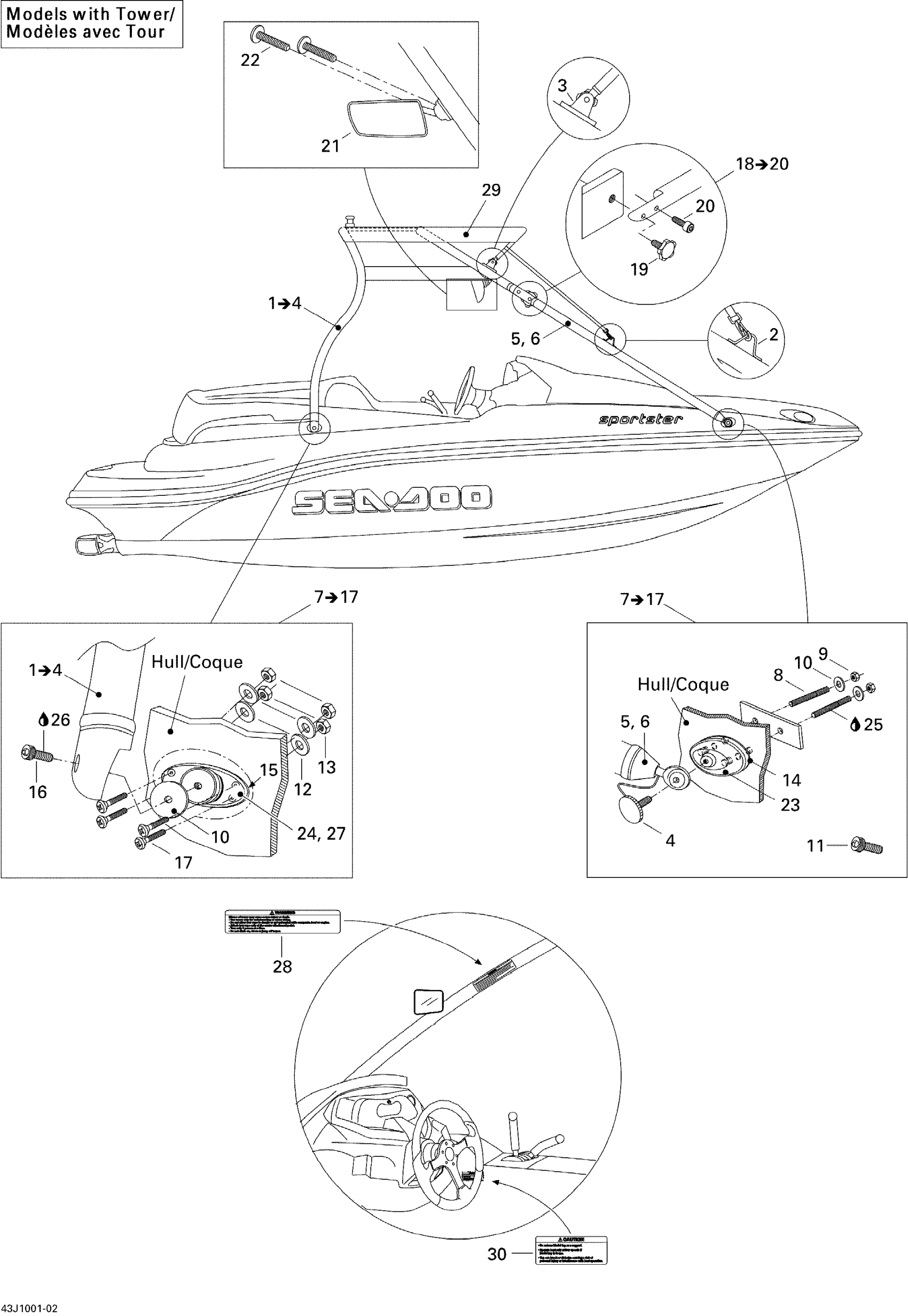

Sea-doo 150 Speedster 155 (1503NA), 2010 09- Tower And Bimini Top Diagram

#

Description
Price

1

Tower Ass'y | Includes 1 to 4

204950175

Unavailable

2

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

3

BIMINI BRACKET - Call your local BRP dealership

204071846

Unavailable

4

Knob, Black

204071847

Unavailable

5

LOWER TOWER, PORT - Call your local BRP dealership

204950224

Unavailable

6

LOWER TOWER, STARBOARD - Call your local BRP dealership

204950225

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Threaded Stud

204100152

Unavailable

9

LOCK NUT 1/2? - Call your local BRP dealership

204100131

Unavailable

10

FENDER WASHER - Call your local BRP dealership

204100132

Unavailable

11

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

12

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

13

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

14

Front Gasket

204130272

Unavailable

15

REAR GASKET - Call your local BRP dealership

204130273

Unavailable

16

Socket Screw 1/2-13 X 1-1/2"

204100190

Unavailable

17

PHILLIP HEAD SCREW 8-18 X 1 - Call your local BRP dealership

204100240

Unavailable

18

HARDWARE KIT - Call your local BRP dealership | Includes 14 to 21

204950267

Unavailable

19

Fluted Knob

204071433

Unavailable

20

HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership

204100135

Unavailable

21

SKI MIRROR - Call your local BRP dealership This part replaces 204071420.

295100386

Unavailable

22

PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership

204100129

Unavailable

23

FRONT TOWER SUPPORT, ANODIZED - Call your local BRP dealership

204950143

Unavailable

24

Tower Mount Support, Starboard

204950178

Unavailable

25

Loctite 271, 10 ml

293800005

$26.99

26

Loctite 243, 10 ml

293800060

$21.49

27

Tower Mount Support, Port

204950226

Unavailable

28

WARNING LABEL, TOWER - Call your local BRP dealership | With Tower

204902068

Unavailable

29

BIMINI TOP - Call your local BRP dealership

204950213

Unavailable

30

CAUTION LABEL, BIMINI TOP - Call your local BRP dealership

204901331

Unavailable
