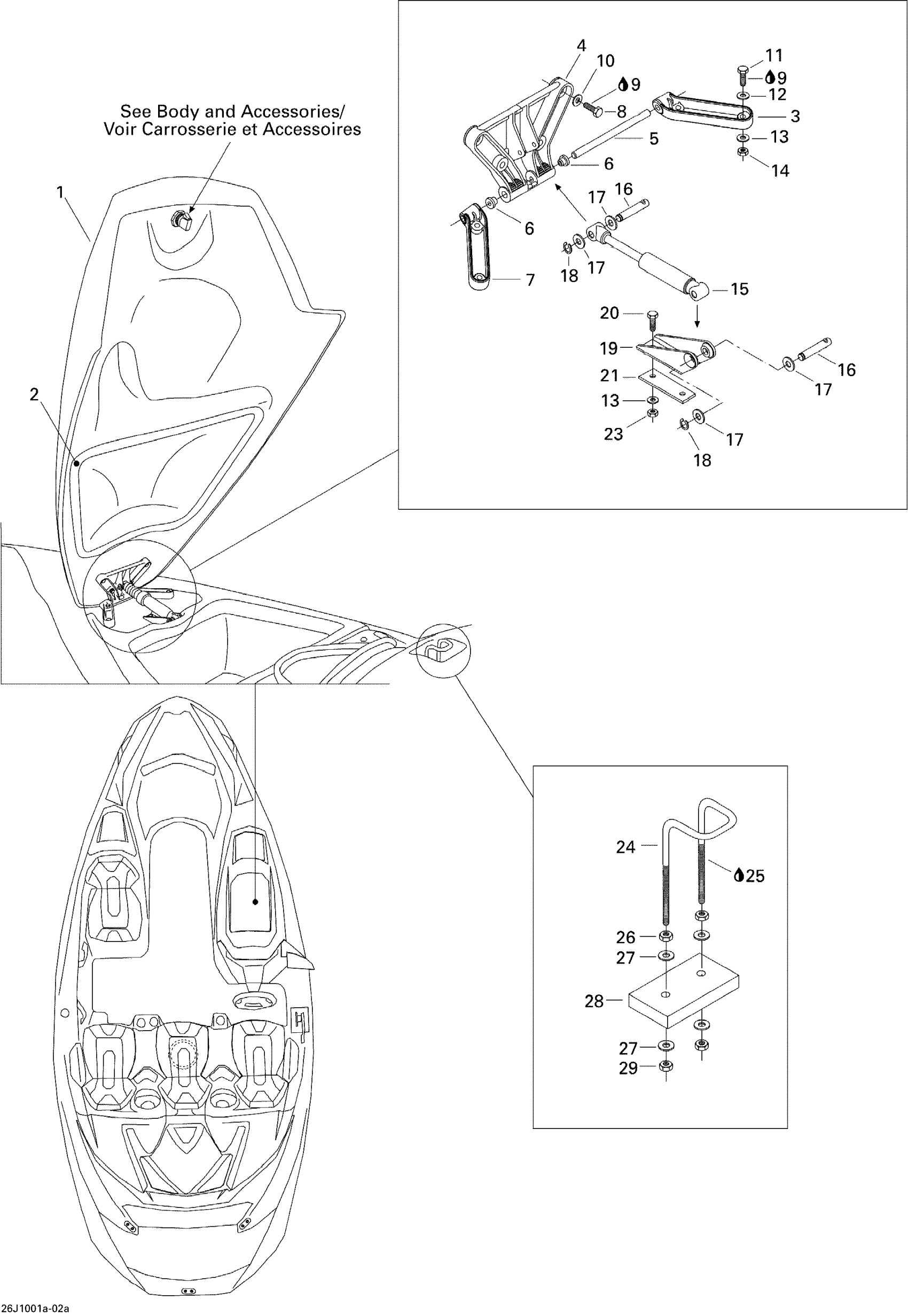

Sea-doo 150 Speedster 155 (1503NA), 2010 Storage Compartment, Front 1 Diagram

#

Description
Price

1

STORAGE COVER ASS'Y - Call your local BRP dealership | Red Model

204620352

Unavailable

1

STORAGE COVER ASS'Y - Call your local BRP dealership | Yellow Model

204620353

Unavailable

2

Seal Tray 1000Mm Long

219704368

$12.30

3

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

4

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

5

AXLE - Call your local BRP dealership

269700024

Unavailable

6

CUSHION - Call your local BRP dealership

293350016

Unavailable

7

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

8

Hex. Screw M6 X 25

207162560

$1.22

9

Loctite 243, 10 ml

293800060

$20.77

10

Stainless Flat Washer M6

234061600

$0.25

11

Hex. Screw M6 X 35

207063560

$1.85

12

Stainless Flat Washer M6

234061600

$0.25

13

Flat Washer M6, Stainless

234062600

$0.64

14

Hex. Elastic Stop Nut M6

232561600

$0.92

15

Shock-Gas This part replaces 269501864.

269501993

$46.12

16

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

17

Stainless, Flat Washer 8 mm

234081600

$0.46

18

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

19

SHOCK SUPPORT - Call your local BRP dealership

291000855

Unavailable

20

Hex. Screw M6 X 25

207162560

$1.22

21

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.64

23

Hex. Elastic Stop Nut M6

232561600

$0.92

24

HOOK - Call your local BRP dealership

204620326

Unavailable

25

Loctite 243, 10 ml

293800060

$20.77

26

Hex. Nut M6

232061600

$0.91

27

Flat Washer M6, Stainless

234062600

$0.64

28

REINFORCEMENT PLATE - Call your local BRP dealership

204620270

Unavailable

29

Hex. Elastic Stop Nut M6

232561600

$0.92
