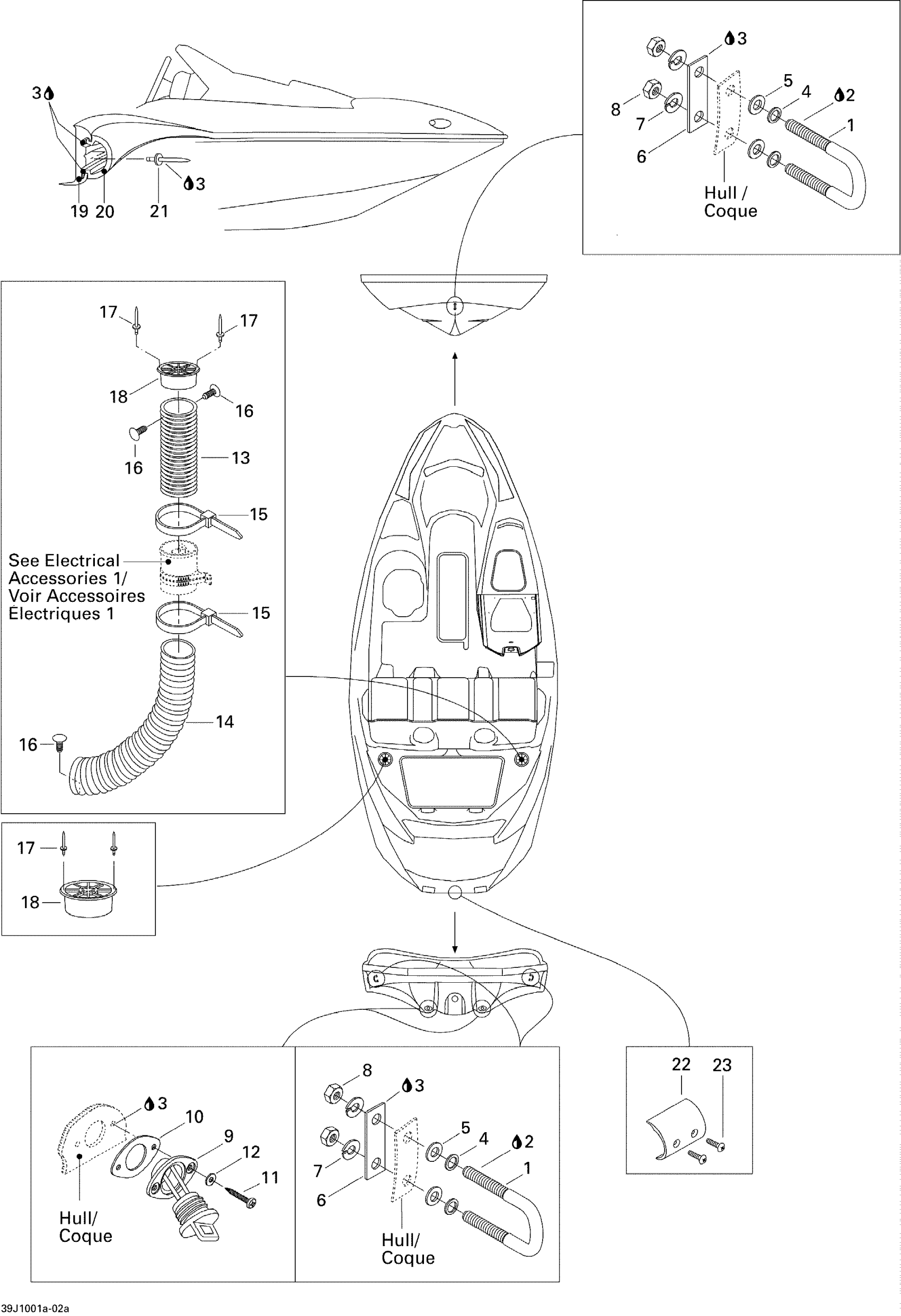

Sea-doo 150 Speedster 155 (1503NA), 2010 09- Hull 1 Diagram
#
Description
Price
1
U-Clamp
292000933
$59.49
2
Loctite 271, 10 ml
293800005
$26.99
3
Silicone Sealant 51388, 300 ml
296000309
$36.99
4
Flat Washer M8.5 x 18
293050001
$3.07
5
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
6
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
7
Lock Washer 8 mm, Stainless
234181601
$0.55
8
Hex. Nut M8
232081600
$1.47
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
Was 204050122 Vent Hose 4"
219704358
$25.99
14
Was 204050122 Vent Hose 4"
219704358
$25.99
15
Tie Rap, 533 mm
293750047
$2.09
16
Black, Dart
293730006
$0.99
17
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
18
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
19
Bumper, Black
204050467
Unavailable
20
Bumper Trim, Black
204050463
Unavailable
21
Pop Rivet 3/16"
293150013
$1.37
22
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
23
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
