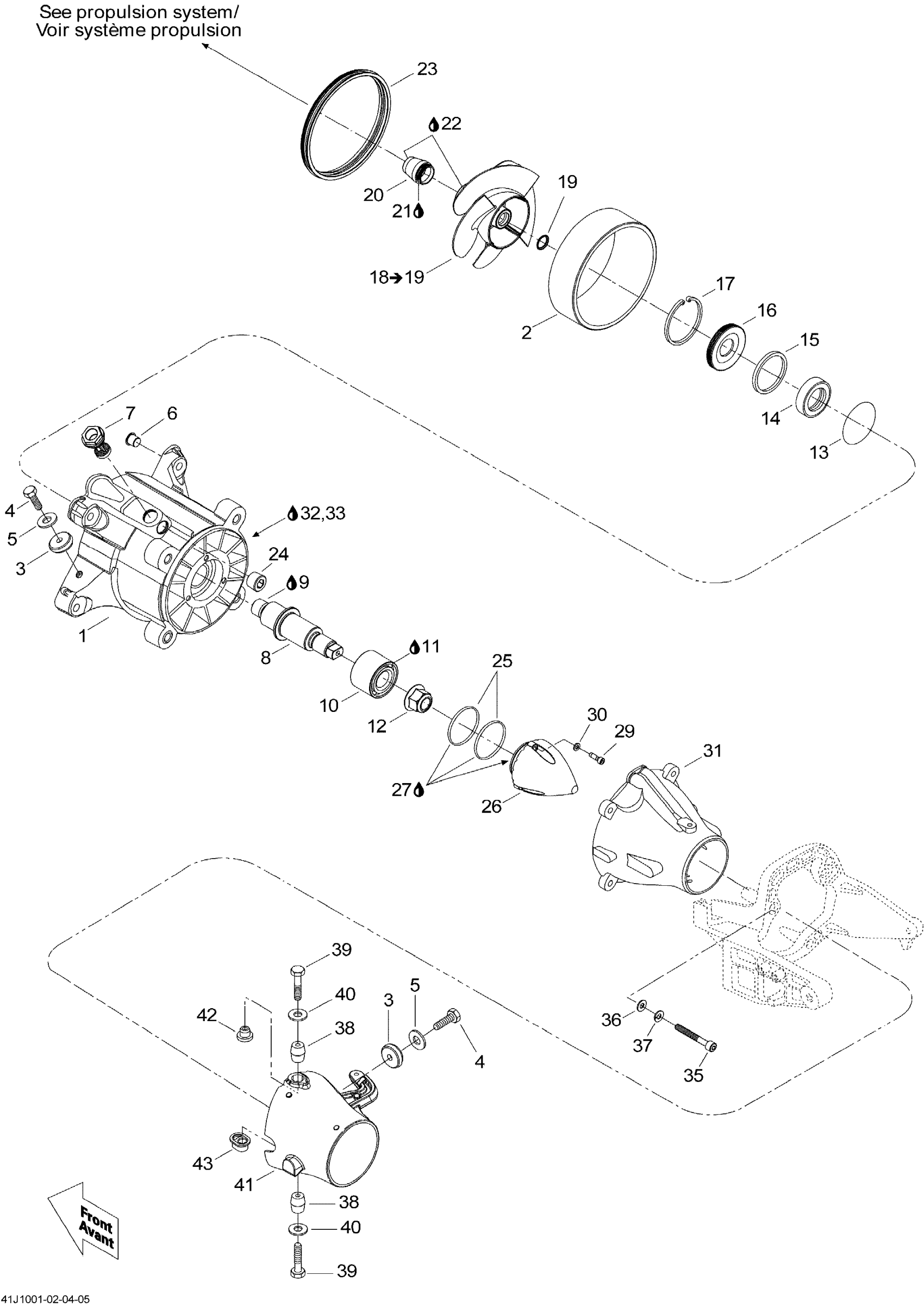

Sea-doo 150 Speedster 155 (1503NA), 2010 Pump Diagram

#

Description
Price

1

Housing Impeller Anodized This part replaces 267000417.

271002161

$329.99

2

Wear Ring

267000419

$84.99

3

Anode Zinc

271001813

$18.99

4

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

5

Stainless Flat Washer M6

234061600

$0.33

6

Bushing

267000093

$9.59

7

Plug | Includes 370z to 370z1

267000282

$19.49

8

Impeller Shaft

267000388

$116.49

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

10

Angled Bearing This part replaces 267000030.

267000900

$80.99

11

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

12

Elastic Flange Nut M20

250100104

$12.66

13

O-Ring

293300090

$7.20

14

Seal

271002071

$33.99

15

Spacer

271001393

$8.59

16

Oil Seal

293200089

$19.99

17

Circlip

293370038

$8.79

18

Impeller Ass'y | Includes 17 to 18 This part replaces 267000639.

267000968

$391.99

19

O-Ring

293300114

$15.89

20

Guard

271002225

$11.99

21

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

22

Synthetic Grease, 400 G

293550010

Unavailable

23

Neoprene Seal

293200087

$12.63

24

Black, Plastic Plug

267000469

$7.59

25

O-Ring

293300086

$3.59

26

Impeller Cover

267000428

$18.49

27

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

29

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

30

Stainless Flat Washer M6

234061600

$0.33

31

Black, Venturi - Call your local BRP dealership

204160302

Unavailable

32

Was 293800041 Loctite Primer 7649

219704458

$39.99

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

35

Socket Head Screw M8 X 100, Scotch Grip

250000464

$7.51

36

Flat Washer M8.5 x 18

293050001

$3.07

37

Lock Washer 8 mm, Stainless

234181601

$0.55

38

Sleeve

271001816

$14.99

39

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

40

Flat Washer M8.5 x 18

293050001

$3.07

41

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.

462125

Unavailable

42

Venturi Bushing

293900001

$7.62

43

Plastic Bushing

293900010

$9.59
