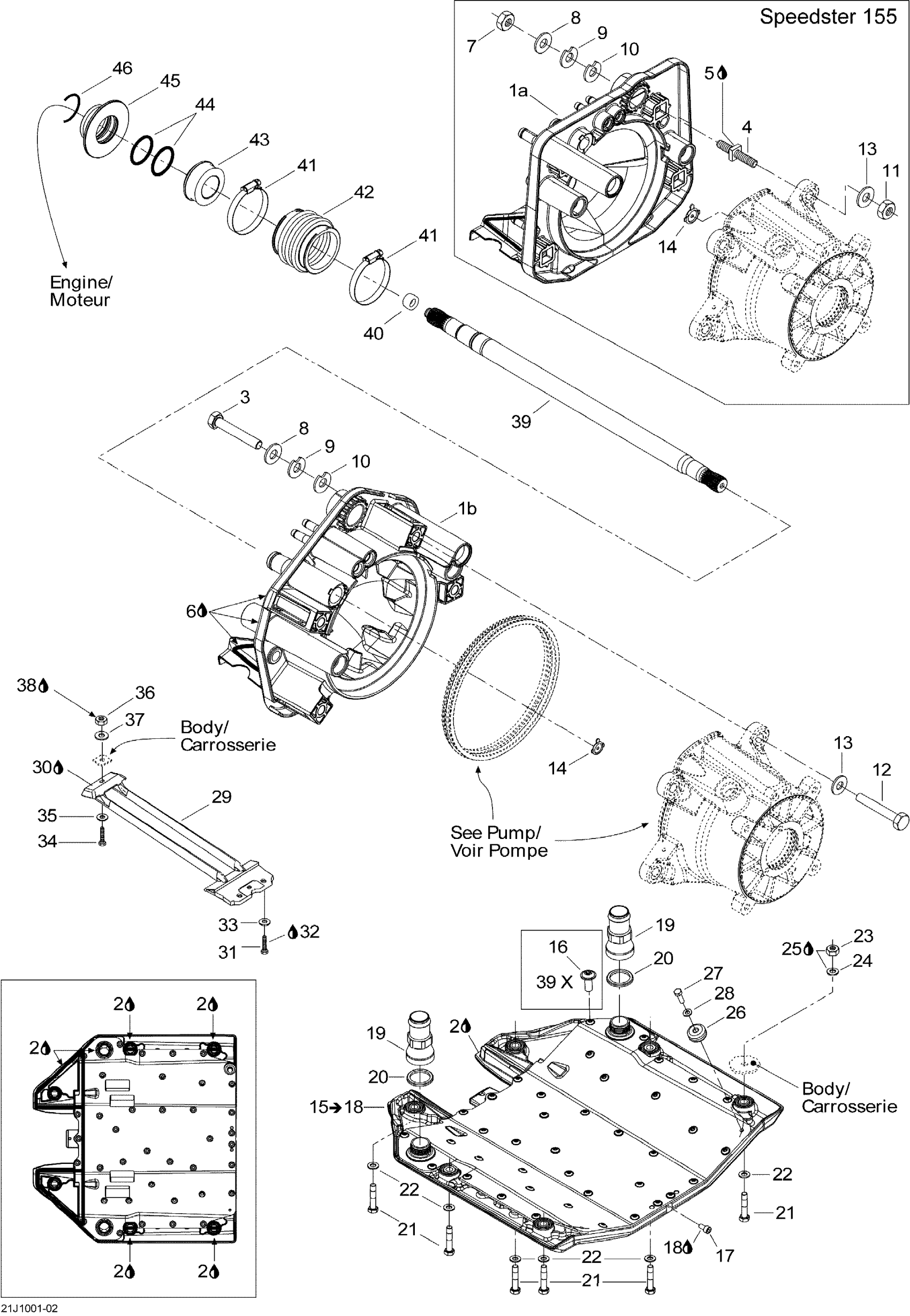

Sea-doo 150 Speedster 155 (1503NA), 2010 05- Propulsion Diagram
#
1a
PUMP SUPPORT - Call your local BRP dealership
204120314
Unavailable
1b
Not Available As Spare Parts
XXX
Unavailable
2
Instant Gasket
219701421
$51.99
3
Not Available As Spare Parts
XXX
Unavailable
4
Square Stud
250300022
$20.99
5
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
6
Not Available As Spare Parts
XXX
Unavailable
7
Elastic Stop Nut M10, Brass
232501200
$2.64
8
Flat Washer 10 mm, Stainless
234002600
$2.22
9
Shim 0.3 mm
272000053
$11.49
10
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
11
Elastic Stop Nut M10, Brass
232501200
$2.64
12
Not Available As Spare Parts
XXX
Unavailable
13
Flat Washer
211200051
$1.68
14
Reducer This part replaces 291001887.
291004649
$17.49
15
Riding Plate Ass'y | Includes 10 to 12
271001649
$275.49
16
Torx Button Head Screw M6 X 14
250000064
$6.66
17
Socket Drain Plug M6 X 12
250500005
$16.49
18
Was 293800013 Loctite 56765
219704454
$65.99
19
Straight Plastic Fitting
293710111
$8.47
20
O-Ring
293300121
$8.32
21
Hex. Screw M8 X 40
207084060
$2.22
22
Stainless, Flat Washer 8 mm
234081600
$0.55
23
Hex. Elastic Nut M8
232581600
$1.48
24
Flat Washer 8 mm, Stainless
234082600
$2.43
25
Silicone Sealant 51388, 300 ml
296000309
$36.99
26
Anode Zinc
271001813
$18.99
27
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
28
Stainless Flat Washer M6
234061600
$0.33
29
GRATE - Call your local BRP dealership
271001560
Unavailable
30
Instant Gasket
219701421
$51.99
31
Hex. Screw M6 X 16
207161660
$1.59
32
Loctite 271, 10 ml
293800005
$26.99
33
Stainless Flat Washer M6
234061600
$0.33
34
Hex. Screw M8 X 40
207184060
$2.22
35
Stainless, Flat Washer 8 mm
234081600
$0.55
36
Hex. Elastic Nut M8
232581600
$1.48
37
Stainless, Flat Washer 8 mm
234081600
$0.55
38
Silicone Sealant 51388, 300 ml
296000309
$36.99
39
Drive Shaft This part replaces 271001534.
271001724
$328.49
40
Drive Shaft Plug
272000173
$8.68
41
Norma Clamp
293650077
$7.41
42
Bellows
272000183
$28.99
43
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
44
O-Ring
293300044
$1.05
45
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
46
C-Clip
271001575
$6.11
