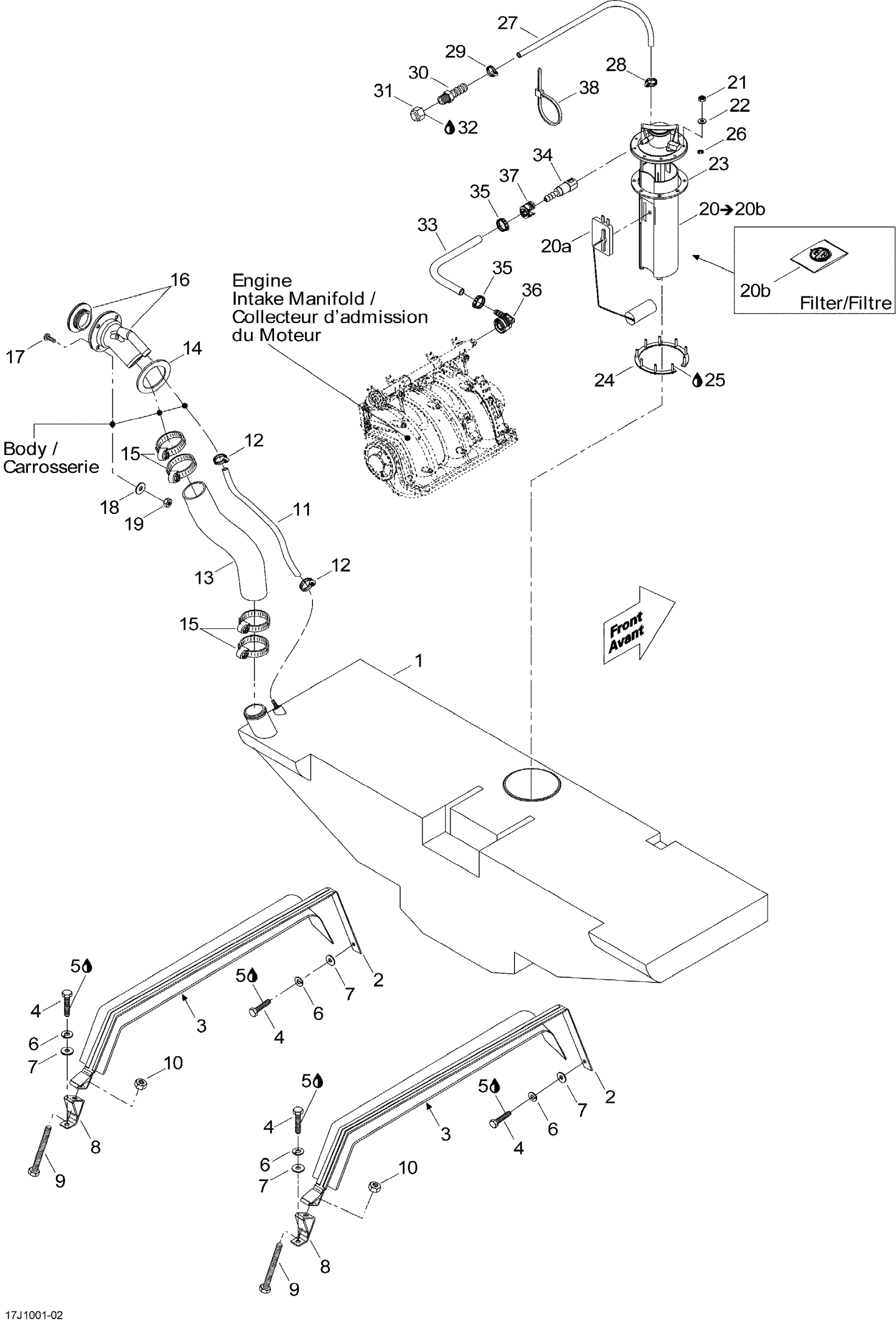

Sea-doo 150 Speedster 155 (1503NA), 2010 Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 1a to 1e

275500814

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.58

5

Loctite 271, 10 ml

293800005

$26.99

6

Lock Washer 8 mm, Stainless

234181601

$0.55

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

9

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

10

Hex. Elastic Nut M8

232581600

$1.48

11

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

12

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

13

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

14

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

15

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

16

FILLER NECK - Call your local BRP dealership

204560182

Unavailable

17

Phillips Screw M4 X 35

208643560

Unavailable

18

Flat Washer 4 mm

234040600

$0.55

19

Elastic Stop Nut M4

232541600

$1.15

20

FUEL PUMP MODULE ASSY - Call your local BRP dealership | Includes 20 to 20b

204560259

Unavailable

20a

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

20b

Fuel Filter, Bosch

219700368

$39.99

21

Elastic Stop Nut 5 mm

232551200

$1.47

22

Flat Washer 5 mm, Stainless

234052400

$2.85

23

Gasket

293250088

$14.99

24

C-Ring, 9 Studs

275500679

$77.49

25

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

26

Circlip 5 mm

293370002

$5.50

27

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

28

Tridon Gear Clamp

293650170

$1.99

29

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

30

COUPLER - Call your local BRP dealership

204560265

Unavailable

31

Pipe Cap

204560263

Unavailable

32

Was 293800013 Loctite 56765

219704454

$65.99

33

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

34

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

35

NORMA CLAMP - Call your local BRP dealership

204130224

Unavailable

36

Elbow Fitting 90°

293710105

$14.22

37

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

38

Tie-Rap 173 mm

293750009

$1.04
