- 150 Speedster, 1 x 215 SCIC, 2009
10- Electrical System

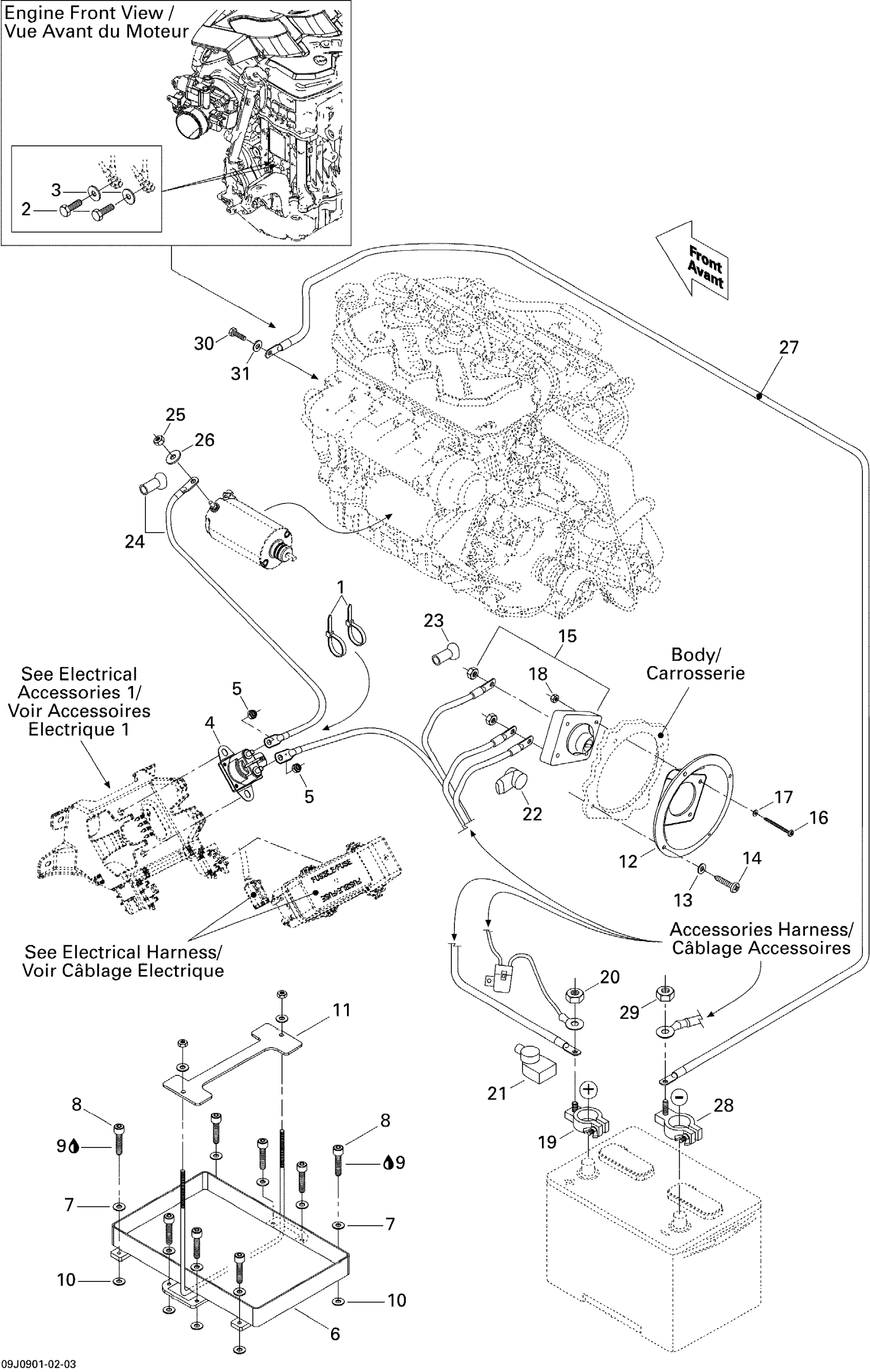

Sea-doo 150 Speedster, 1 x 215 SCIC, 2009 10- Electrical System Diagram
#
Description
Price
1
Tie Wrap 142 mm
293750002
$1.25
2
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
3
Stainless Flat Washer M6
234061600
$0.33
4
Starter Relay
278003012
$42.49
5
Hex. Elastic Stop Nut M6
232561600
$1.15
6
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
7
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
8
Socket Head Screw M6 X 25
205062560
$1.69
9
Loctite 243, 10 ml
293800060
$21.49
10
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
11
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
12
SWITCH SUPPORT - Call your local BRP dealership
204471341
Unavailable
13
Flat Washer 4 mm, Stainless
234041600
$1.15
14
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
15
BATTERY SWITCH - Call your local BRP dealership
204471339
Unavailable
16
Phillips Screw M5 X 25
208652560
$3.39
17
Flat Washer M5, Stainless
234051600
$0.77
18
Hex. Elastic Nut M5 | X
232551600
$1.15
19
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
20
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
21
RED BOOT - Call your local BRP dealership
204470269
Unavailable
22
RED BOOT - Call your local BRP dealership
204471376
Unavailable
23
RED BOOT - Call your local BRP dealership
204471377
Unavailable
24
RED CABLE - Call your local BRP dealership
204470798
Unavailable
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
Stainless Flat Washer M6
234061600
$0.33
27
RH GROUND CABLE - Call your local BRP dealership
204470199
Unavailable
28
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
29
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
30
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
31
Flat Washer M6, Stainless
234062600
$0.77
