10- Electrical Accessories 1

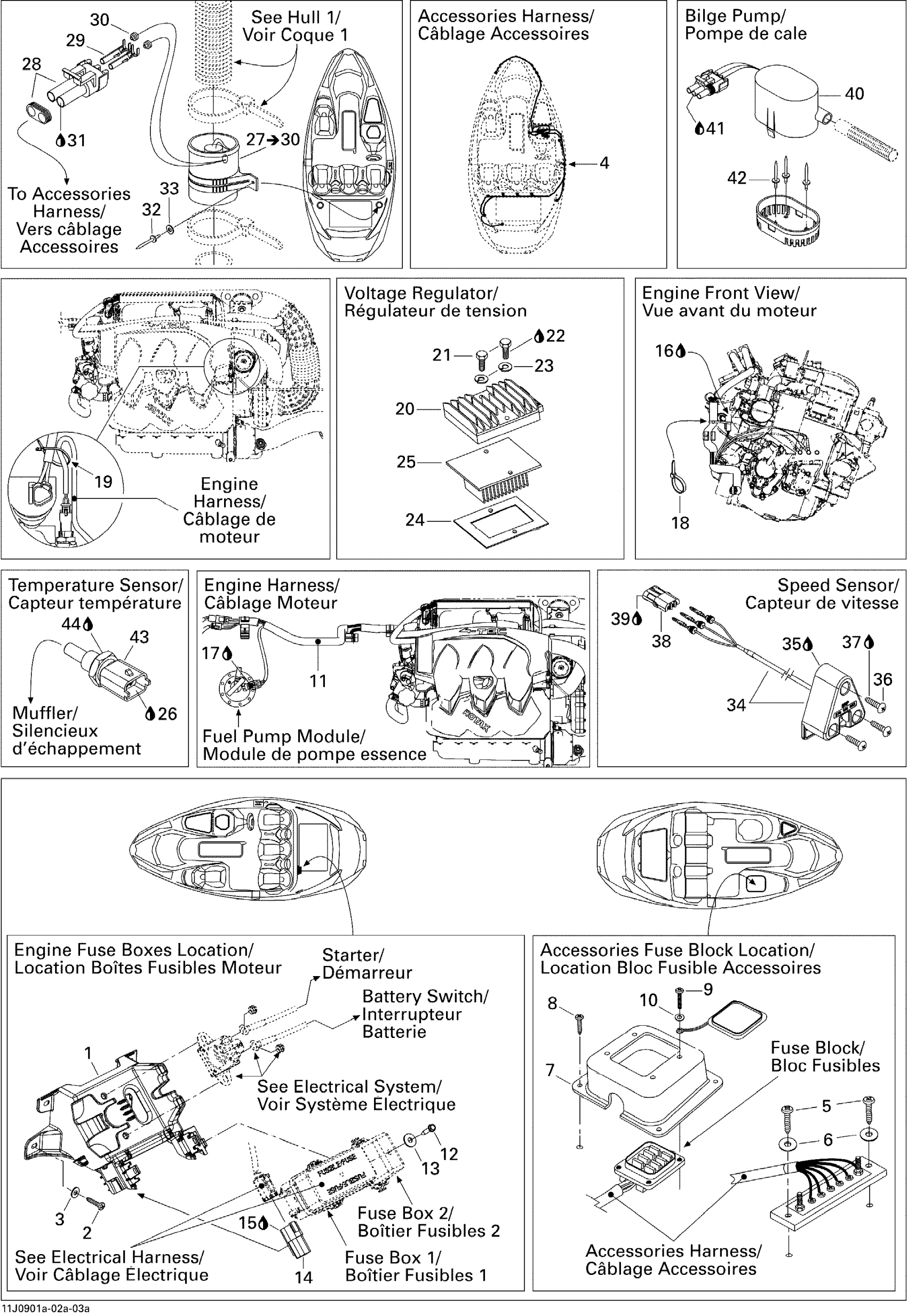

Sea-doo 150 Speedster, 1 x 215 SCIC, 2009 10- Electrical Accessories 1 Diagram
#
1
MODULE SUPPORT - Call your local BRP dealership
278002699
Unavailable
2
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership
204100203
Unavailable
3
Flat Washer M6, Stainless
234062600
$0.77
4
Accessories Harness | North America
204471343
Unavailable
5
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
6
Flat Washer 4 mm, Stainless
234041600
$1.15
7
FUSE BLOCK SUPPORT - Call your local BRP dealership
204471274
Unavailable
8
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
9
Pan Head Screw 10-32 X 1/2"
204100220
$2.51
10
Flat Washer 5 mm, Stainless
234052600
$0.77
11
ENGINE WIRING HARNESS - Call your local BRP dealership
204471289
Unavailable
12
Hex. Screw 10-14 X 7/8”
211000023
$3.59
13
Flat Washer 5 mm, Stainless
234052600
$0.77
14
Diagnostic Connector
278002704
$19.49
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
17
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
18
Tie-Rap 180 mm
414115200
$0.11
19
Tie Wrap 142 mm
293750002
$1.25
20
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
21
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst
204100226
Unavailable
22
Loctite 243, 10 ml
293800060
$21.49
23
Lock Washer 1/4”
211200025
$1.29
24
SEAL - Call your local BRP dealership
204471293
Unavailable
25
RECTIFIER HEAT SINK - Call your local BRP dealership
204471296
Unavailable
26
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
27
Fan Ass'y | Includes 44 to 47
204470108
$144.99
28
Male Connector, 2 Circuits
278000220
$15.49
29
Female Terminal
278000223
$3.19
30
Wire Seal
278000218
$4.39
31
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
32
Pop Rivet 3/16"
293150088
$0.99
33
Flat Washer 5 mm, Stainless
234052600
$0.77
34
Speed Sensor
278001993
$169.99
35
Silicone Sealant 51388, 300 ml
296000309
$36.99
36
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
37
Silicone Sealant 51388, 300 ml
296000309
$36.99
38
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
39
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
40
Bilge Pump
204471431
Unavailable
41
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
42
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
43
Temperature Sensor
278002895
$39.99
44
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
