- 150 Speedster, 1 x 215 SCIC, 2009
09- Storage Compartment, Front 1

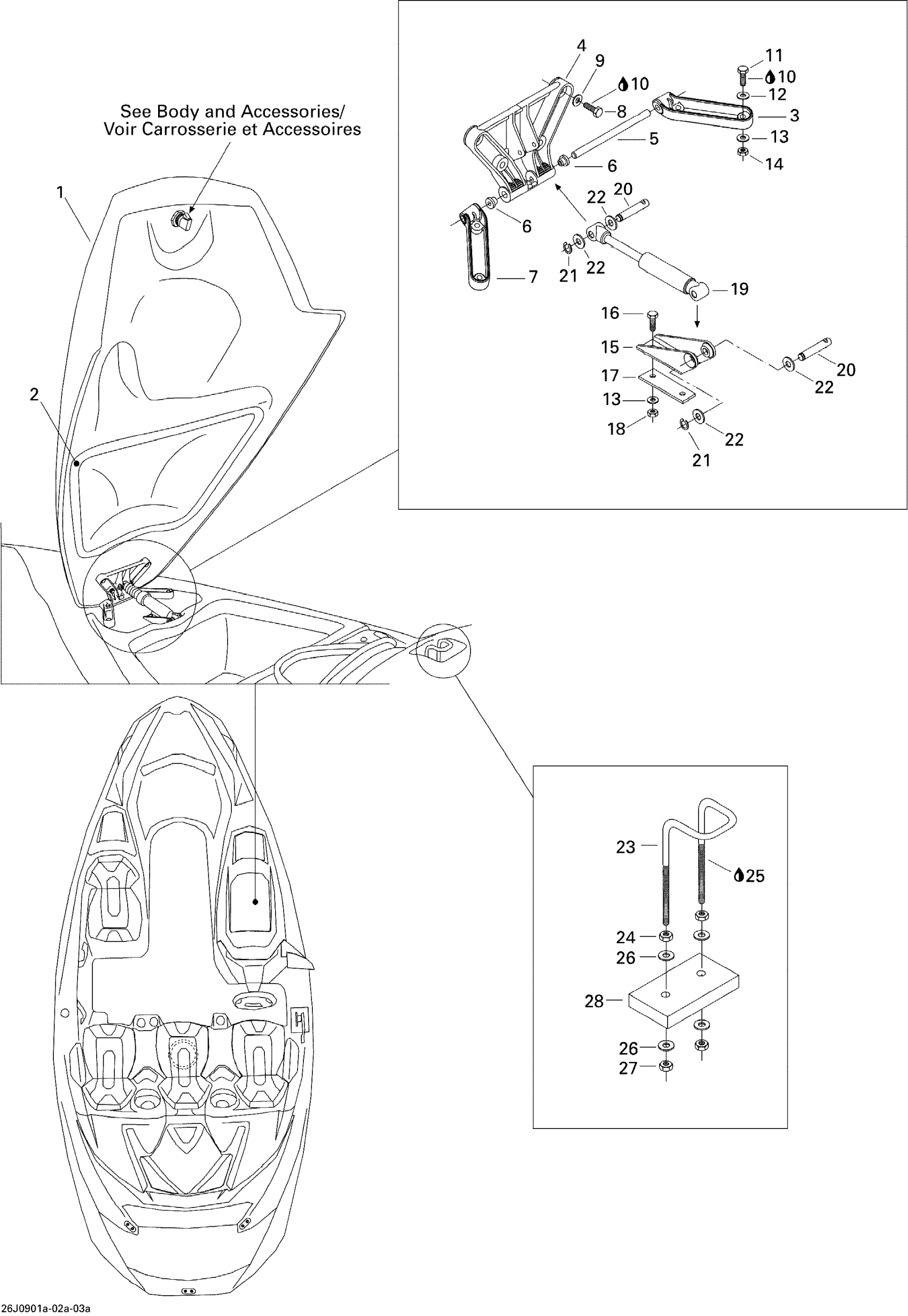

Sea-doo 150 Speedster, 1 x 215 SCIC, 2009 09- Storage Compartment, Front 1 Diagram
#
Description
Price
1
STORAGE COVER ASS'Y - Call your local BRP dealership | Red Model
204620352
Unavailable
1
STORAGE COVER ASS'Y - Call your local BRP dealership | Yellow Model
204620353
Unavailable
2
Seal Tray 1000Mm Long
219704368
$13.99
3
RH HINGE - Call your local BRP dealership
269700022111
Unavailable
4
COVER HINGE - Call your local BRP dealership
269700038
Unavailable
5
AXLE - Call your local BRP dealership
269700024
Unavailable
6
CUSHION - Call your local BRP dealership
293350016
Unavailable
7
LH HINGE - Call your local BRP dealership
269700023111
Unavailable
8
Hex. Screw M6 X 25
207162560
$1.47
9
Stainless Flat Washer M6
234061600
$0.33
10
Loctite 243, 10 ml
293800060
$21.49
11
Hex. Screw M6 X 35
207063560
$2.22
12
Stainless Flat Washer M6
234061600
$0.33
13
Flat Washer M6, Stainless
234062600
$0.77
14
Hex. Elastic Stop Nut M6
232561600
$1.15
15
SHOCK SUPPORT - Call your local BRP dealership
291000855
Unavailable
16
Hex. Screw M6 X 25
207162560
$1.47
17
REINFORCEMENT PLATE - Call your local BRP dealership
291000079
Unavailable
18
Hex. Elastic Stop Nut M6
232561600
$1.15
19
Shock-Gas This part replaces 269501864.
269501993
$56.99
20
SHORT PIN - Call your local BRP dealership
211400006
Unavailable
21
CIRCLIP - Call your local BRP dealership
293370008
Unavailable
22
Stainless, Flat Washer 8 mm
234081600
$0.55
23
HOOK - Call your local BRP dealership
204620326
Unavailable
24
Hex. Nut M6
232061600
$1.15
25
Loctite 243, 10 ml
293800060
$21.49
26
Flat Washer M6, Stainless
234062600
$0.77
27
Hex. Elastic Stop Nut M6
232561600
$1.15
28
REINFORCEMENT PLATE - Call your local BRP dealership
204620270
Unavailable
