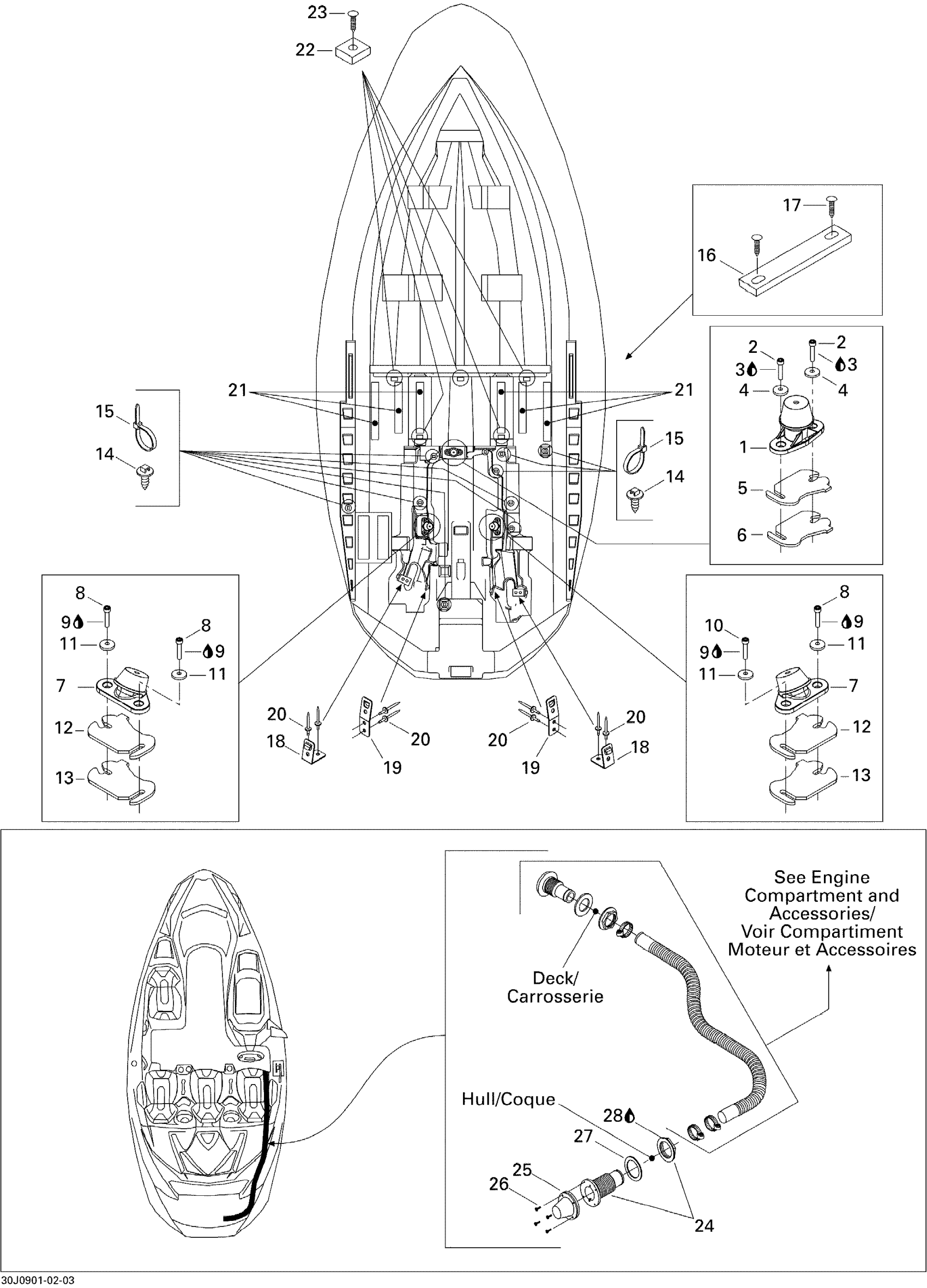

Sea-doo 150 Speedster, 1 x 215 SCIC, 2009 09- Lower Hull Diagram
#
Description
Price
1
Engine Support Ass'y
270001096
$97.99
2
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
3
Loctite 243, 10 ml
293800060
$21.49
4
Cone Washer
250200018
$5.61
5
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
6
Shim 1.3 mm
270000762
$12.99
7
Engine Support Ass'y
270001081
$109.99
8
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
9
Loctite 243, 10 ml
293800060
$21.49
10
Socket Head Screw M8 X 45
205084560
$3.59
11
Cone Washer
250200018
$5.61
12
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
13
Shim 1.3 mm
270000762
$12.99
14
Mount Dart
293730040
$1.04
15
Tie-Rap 180 mm
414115200
$0.11
16
MUFFLER RUBBER PAD - Call your local BRP dealership
204060702
Unavailable
17
Black, Dart
293730006
$0.99
18
Strap Clip 90°
204060017
Unavailable
19
Strap Clip
293850030
$11.12
20
Pop Rivet 3/16"
293150088
$0.99
21
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
22
RUBBER PAD - Call your local BRP dealership
204060684
Unavailable
23
Black, Dart
293730006
$0.99
24
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
25
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
26
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
27
GASKET - Call your local BRP dealership
292800106
Unavailable
28
Silicone Sealant 51388, 300 ml
296000309
$36.99
