- 150 Speedster, 1 x 215 SCIC, 2009
09- Body And Accessories

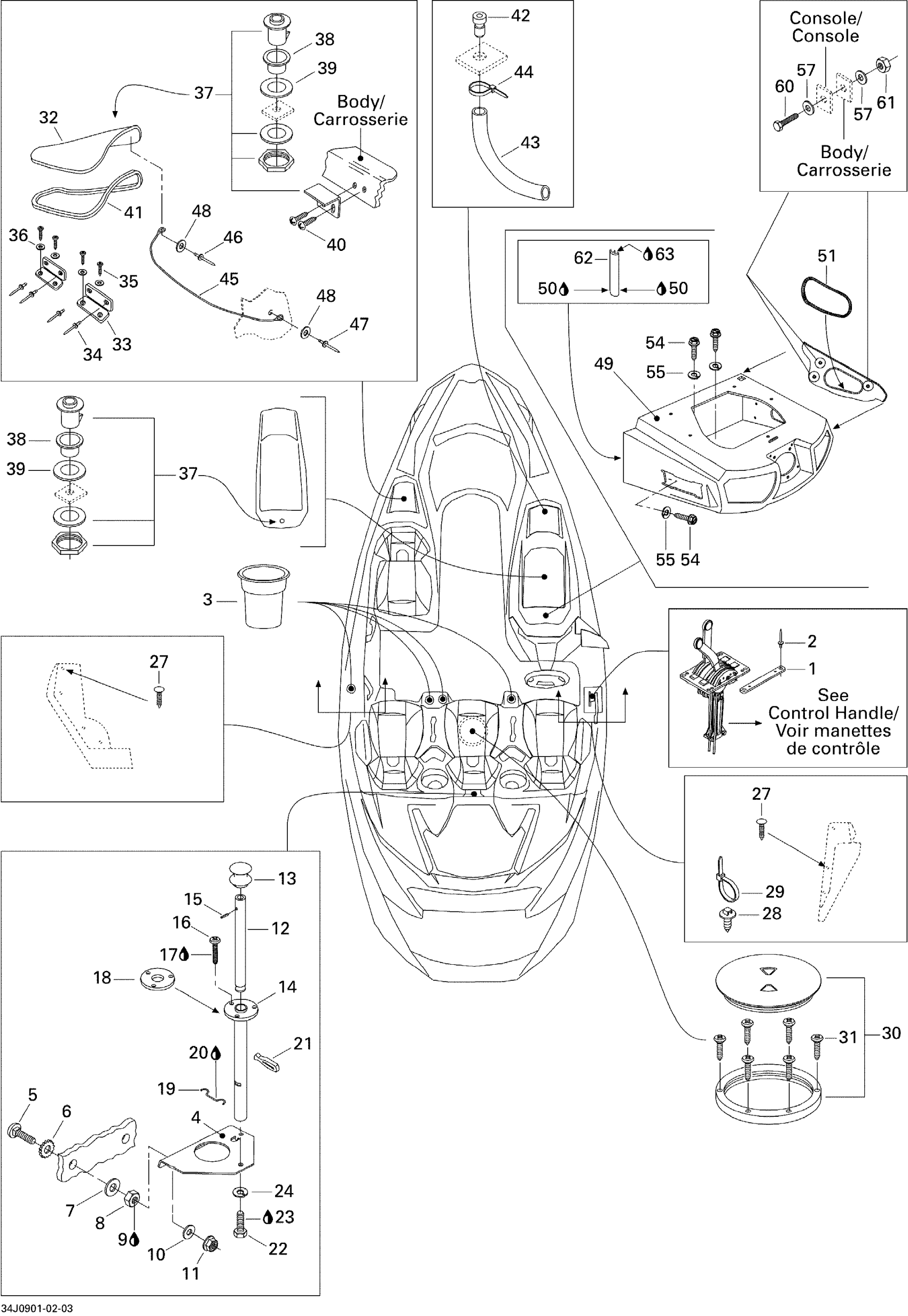

Sea-doo 150 Speedster, 1 x 215 SCIC, 2009 09- Body And Accessories Diagram
#
1
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
2
Pop Rivet 3/16"
293150013
$1.37
3
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
4
FIXATION PLATE - Call your local BRP dealership
204071140
Unavailable
5
Elevator Bolt
204000130
Unavailable
6
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
7
Flat Washer M6, Stainless
234062600
$0.77
8
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
9
Loctite 271, 10 ml
293800005
$26.99
10
Flat Washer M6, Stainless
234062600
$0.77
11
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
12
SKI SHAFT - Call your local BRP dealership
204071624
Unavailable
13
SKI SHAFT CAP - Call your local BRP dealership
293000004
Unavailable
14
FIXED TUBE - Call your local BRP dealership
204071495
Unavailable
15
ROLLED PIN M3 X 30 - Call your local BRP dealership
211400004
Unavailable
16
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
17
Loctite 243, 10 ml
293800060
$21.49
18
RUBBER WASHER - Call your local BRP dealership
293830045
Unavailable
19
SPRING - Call your local BRP dealership
291001205
Unavailable
20
Synthetic Grease, 400 G
293550010
Unavailable
21
Windshield Latch
570023800
$4.49
22
Hex. Screw M8 X 18
207181860
$1.48
23
Loctite 243, 10 ml
293800060
$21.49
24
Lock Washer 8 mm, Stainless
234181601
$0.55
27
Black Dart
293730014
$0.99
28
Mount Dart
293730040
$1.04
29
Tie-Rap 180 mm
414115200
$0.11
30
DECK PLATE 8 - Call your local BRP dealership
204073192
Unavailable
31
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
32
STORAGE DOOR, PORT SIDE, YELLOW - Call your local BRP dealership | Yellow Model
204073023
Unavailable
32
STORAGE DOOR, PORT SIDE, RED - Call your local BRP dealership | Red Model
204072639
Unavailable
33
Hinge
269700031
$9.99
34
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
35
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
36
Flat Washer 4 mm
234040600
$0.55
37
LATCHES KIT, 2 SUB-ASSEMBLIES - Call your local BRP dealership
204071753
Unavailable
38
LATCH INSERT - Call your local BRP dealership
204620007
Unavailable
39
COMPENSATION GASKET - Call your local BRP dealership
204620045
Unavailable
40
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
41
Seal Tray 1000Mm Long
219704368
$13.99
42
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
43
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
44
Tie Wrap 94 mm | 4X4
293750001
$1.03
45
RETAINER CABLE - Call your local BRP dealership
204000117
Unavailable
46
POP RIVET 3/16 - Call your local BRP dealership
204130050
Unavailable
47
Pop Rivet 3/16"
293150039
$1.49
48
Flat Washer 5 mm, Stainless
234052600
$0.77
49
CONSOLE ASS'Y - Call your local BRP dealership
204073119
Unavailable
50
Silicone Sealant 51388, 300 ml
296000309
$36.99
51
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
54
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
55
Lock Washer 1/4”
211200025
$1.29
57
Flat Washer M6, Stainless
234062600
$0.77
60
Hex. Screw M6 X 35
207163560
$1.49
61
Hex. Elastic Stop Nut M6
232561600
$1.15
62
TRIM, WHITE - Call your local BRP dealership
204050042
Unavailable
63
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
