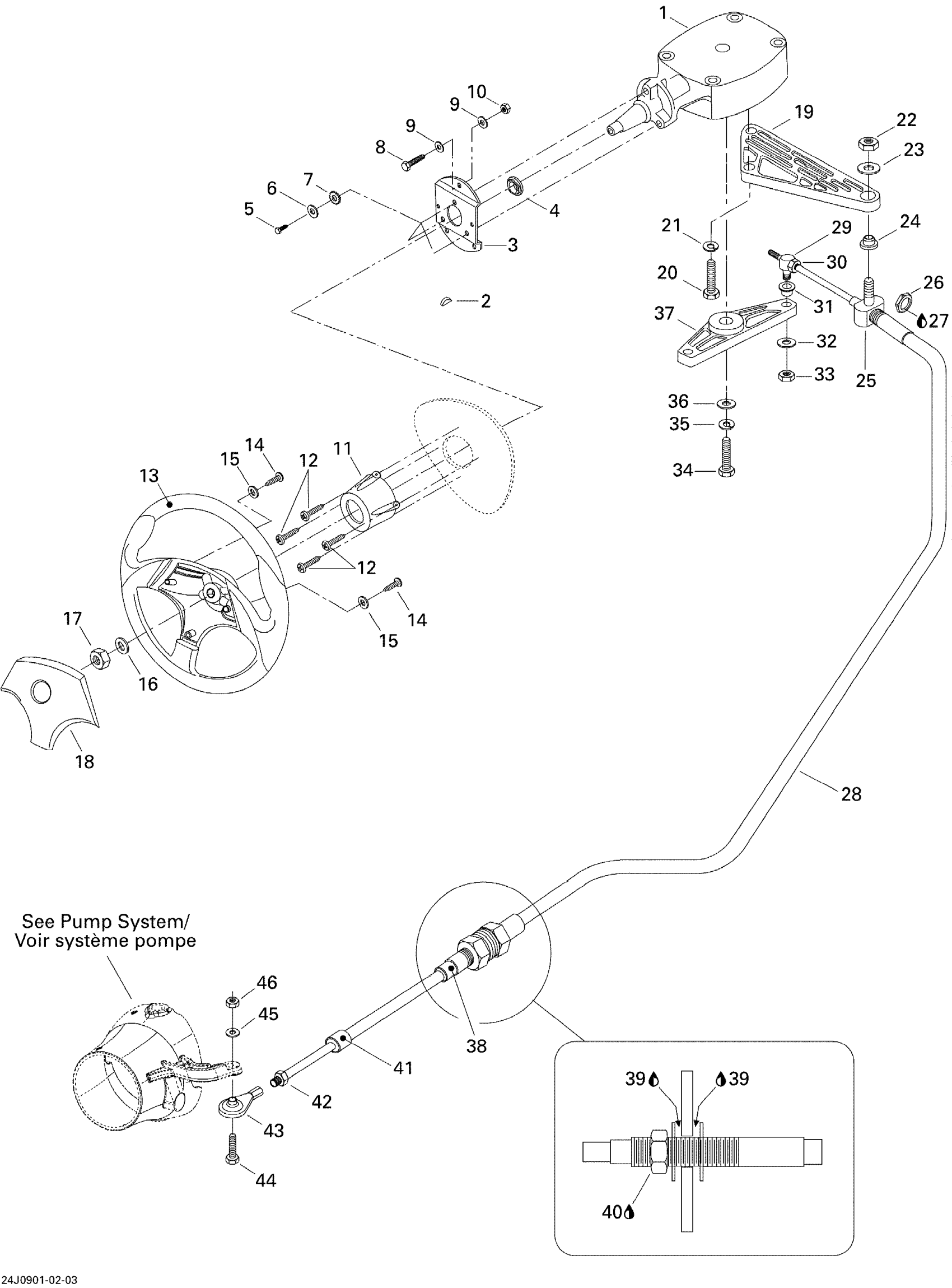

Sea-doo 150 Speedster, 1 x 215 SCIC, 2009 07- Steering Diagram
#
1
HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models
204390361
Unavailable
2
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
3
Support
277000383
Unavailable
4
SPACER - Call your local BRP dealership
204130155
Unavailable
5
HEX. SCREW SCOTCH GRIP - Call your local BRP dealership
204100191
Unavailable
6
Flat Washer M6, Stainless
234062600
$0.77
7
Serrated Lock Washer 8 mm
234481608
$1.15
8
Hex. Screw M6 X 40
207164060
$3.38
9
Stainless Flat Washer M6
234061600
$0.33
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
HELM FASCIA - Call your local BRP dealership | Single HO Engine Models
204390577
Unavailable
12
Phillips Tapping Screw
204100058
$0.66
13
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
14
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
15
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
16
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
17
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
18
STEERING CENTER - Call your local BRP dealership
204390479
Unavailable
19
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
20
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
21
Lock Washer 1/4”
211200025
$1.29
22
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
23
Flat Washer 10 mm, Stainless
234001600
$1.15
24
Flanged Bushing
293350014
$12.99
25
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
26
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
27
Loctite 243, 10 ml
293800060
$21.49
28
STEERING CABLE - Call your local BRP dealership
204390427
Unavailable
29
PIVOT - Call your local BRP dealership
277000456
Unavailable
30
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
31
BUSHING - Call your local BRP dealership
204130095
Unavailable
32
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
33
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
34
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
35
Lock Washer 1/4”
211200025
$1.29
36
Flat Washer M6, Stainless
234062600
$0.77
37
ARM - Call your local BRP dealership
204390040
Unavailable
38
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
39
Silicone Sealant 51388, 300 ml
296000309
$36.99
40
Loctite 243, 10 ml
293800060
$21.49
41
Terminal Wiper
277000441
$11.99
42
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
43
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
44
Hex. Screw M6 X 35
207063560
$2.22
45
Stainless Flat Washer M6
234061600
$0.33
46
Hex. Elastic Stop Nut M6
232561600
$1.15
