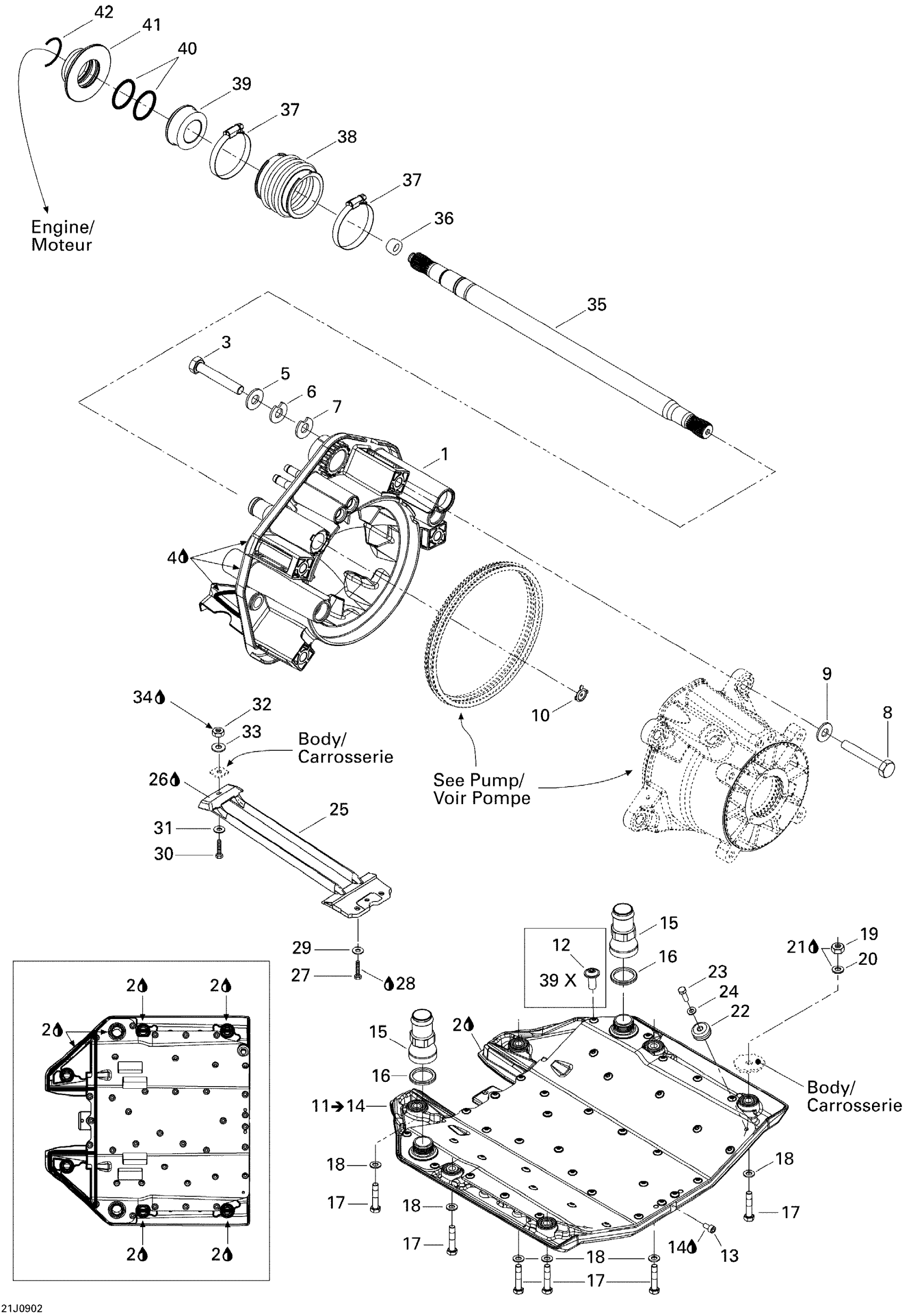

Sea-doo 150 Speedster, 1 x 215 SCIC, 2009 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120315

Unavailable

2

Instant Gasket

219701421

$51.99

3

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

4

Silicone Sealant 51388, 300 ml

296000309

$36.99

5

Flat Washer 10 mm, Stainless

234002600

$2.12

6

Shim 0.3 mm

272000053

$9.21

7

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

8

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

9

Flat Washer

211200051

$1.54

10

Reducer This part replaces 291001887.

291004649

$14.43

11

Riding Plate Ass'y | Includes 10 to 12

271001649

$252.96

12

Torx Button Head Screw M6 X 14

250000064

$7.06

13

Socket Drain Plug M6 X 12

250500005

$13.48

14

Was 293800013 Loctite 56765

219704454

$63.40

15

Straight Plastic Fitting

293710111

$7.90

16

O-Ring

293300121

$7.09

17

Hex. Screw M8 X 40

207084060

$2.12

18

Stainless, Flat Washer 8 mm

234081600

$0.52

19

Hex. Elastic Nut M8

232581600

$1.43

20

Flat Washer 8 mm, Stainless

234082600

$2.27

21

Silicone Sealant 51388, 300 ml

296000309

$36.99

22

Anode Zinc

271001813

$15.64

23

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

24

Stainless Flat Washer M6

234061600

$0.28

25

Pump Grate

204120294

Unavailable

26

Instant Gasket

219701421

$51.99

27

Hex. Screw M6 X 16

207161660

$1.40

28

Loctite 271, 10 ml

293800005

$23.85

29

Stainless Flat Washer M6

234061600

$0.28

30

Hex. Screw M8 X 40

207184060

$2.12

31

Stainless, Flat Washer 8 mm

234081600

$0.52

32

Hex. Elastic Nut M8

232581600

$1.43

33

Stainless, Flat Washer 8 mm

234081600

$0.52

34

Silicone Sealant 51388, 300 ml

296000309

$36.99

35

Drive Shaft

204120309

$442.51

36

Drive Shaft Plug

272000173

$8.06

37

Norma Clamp

293650077

$7.01

38

Bellows

272000183

$26.09

39

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

40

O-Ring

293300044

$0.99

41

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

42

C-Clip

271001575

$5.21
