- 150 Speedster, 1 x 215 SCIC, 2009
05- Control Handle

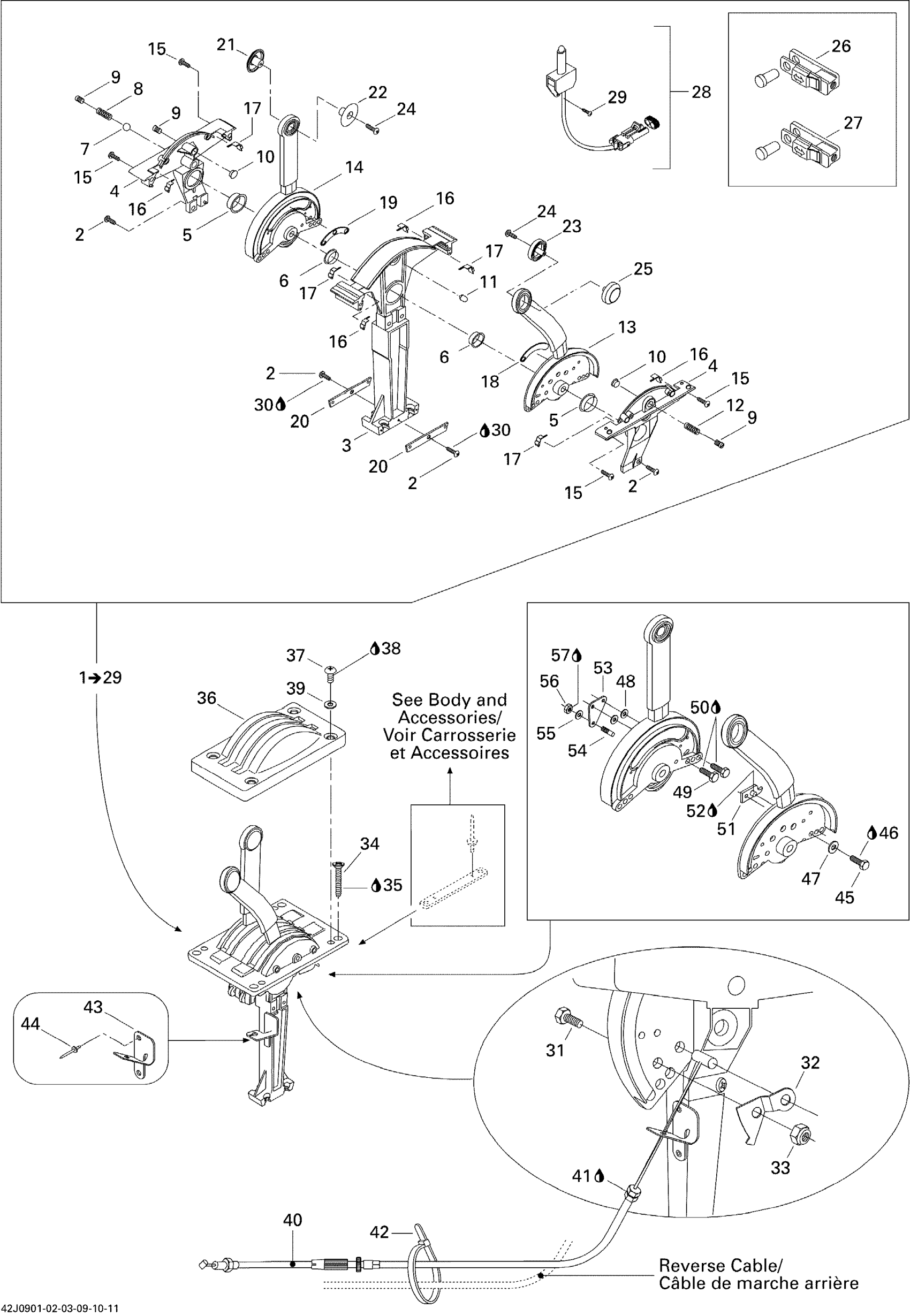

Sea-doo 150 Speedster, 1 x 215 SCIC, 2009 05- Control Handle Diagram
#
1
Ultraflex Control Ass'y | Includes 18 to 46
204390377
$1.00
2
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Half-Case
277000703
Unavailable
5
BUSHING - Call your local BRP dealership
277000397
Unavailable
6
BUSHING - Call your local BRP dealership
277000398
Unavailable
7
BALL - Call your local BRP dealership
277000399
Unavailable
8
SPRING - Call your local BRP dealership
277000400
Unavailable
9
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
10
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
11
BLOCKING PIVOT - Call your local BRP dealership
277000404
Unavailable
12
SPRING - Call your local BRP dealership
277000401
Unavailable
13
THROTTLE LEVER - Call your local BRP dealership
277000655
Unavailable
14
SHIFT LEVER - Call your local BRP dealership
277000414
Unavailable
15
SCREW M5 X 20 - Call your local BRP dealership
204100016
Unavailable
16
RH Water Seal
277000423
Unavailable
17
LH Water Seal
277000424
Unavailable
18
THROTTLE LEVER SPACER - Call your local BRP dealership
277000659
Unavailable
19
Shift Lever Spacer
277000408
Unavailable
20
RETAINING PLATE - Call your local BRP dealership
204390227
Unavailable
21
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership
277000417
Unavailable
22
HALF-SHIFT HANDLE - Call your local BRP dealership
277000418
Unavailable
23
HALF-THROTTLE HANDLE - Call your local BRP dealership
277000416
Unavailable
24
SCREW M3.5 X 25 - Call your local BRP dealership
277000419
Unavailable
25
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership
277000415
Unavailable
26
CLEVIS L26 - Call your local BRP dealership | Not Shown
204390226
Unavailable
27
CLEVIS L25 - Call your local BRP dealership
204390225
Unavailable
28
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership
278001195
Unavailable
29
SCREW M3 X 6 - Call your local BRP dealership
208630660
Unavailable
30
Loctite 243, 10 ml
293800060
$21.49
31
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
32
THROTTLE LINK - Call your local BRP dealership
204390045
Unavailable
33
Hex. Elastic Nut M5 | X
232551600
$1.15
34
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
35
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
36
Control Cover
204390123
Unavailable
37
Phillips Screw M4 X 10
208641060
$1.01
38
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
39
Flat Washer 4 mm
234040600
$0.55
40
THROTTLE CABLE - Call your local BRP dealership
204390571
Unavailable
41
Loctite 243, 10 ml
293800060
$21.49
42
Tie-Rap 180 mm
414115200
$0.11
43
CABLE SUPPORT - Call your local BRP dealership
277000504
Unavailable
44
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
45
Hex. Cap Screw M6 X 12
207161260
$1.26
46
Loctite 243, 10 ml
293800060
$21.49
47
Lock Washer 1/4”
211200025
$1.29
48
Lock Washer 1/4”
211200025
$1.29
49
Hex. Cap Screw M6 X 12
207161260
$1.26
50
Loctite 243, 10 ml
293800060
$21.49
51
REVERSE CATCH - Call your local BRP dealership
204390373
Unavailable
52
Sealant Loctite 648
219703000
$45.99
53
STOP-REVERSE - Call your local BRP dealership
204390369
Unavailable
54
REVERSE PIN - Call your local BRP dealership
204390370
Unavailable
55
Lock Washer 1/4”
211200025
$1.29
56
Hex. Elastic Stop Nut M6
232561600
$1.15
57
Loctite 243, 10 ml
293800060
$21.49
