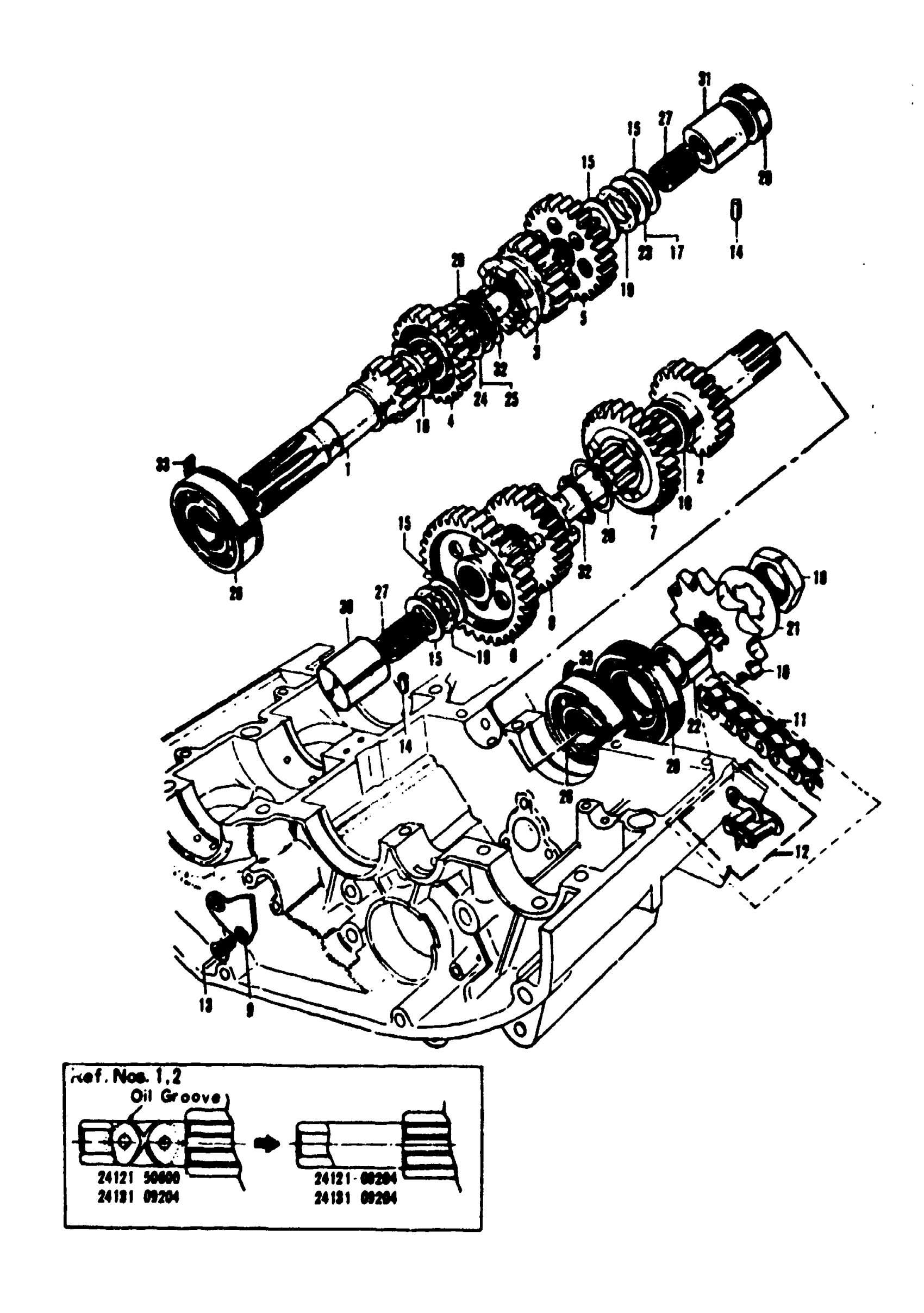

Suzuki S32-2 (1968) TRANSMISSION-DRIVE CHAIN Diagram

#

Description
Price

1

COUNTER SHAFT | N.T. 13

24121-09204

Unavailable

1

COUNTER SHAFT | N.T 13 UP TO E.NO.S 32 14820

24121-50600

Unavailable

2

DRIVE SHAFT | N.T. 22 UP TO E.NO S32 14830

24131-09205

Unavailable

2

DRIVE SHAFT | N.T. 22 UP TO E.NO S32 14820

24131-09204

Unavailable

3

SECOND PINION | N.T 18

24221-08000

Unavailable

4

THIRD PINION | N.T. 22

24231-08001

Unavailable

5

TOP PINION COMP. | N.T. 24

24240-09204

Unavailable

6

LOW GEAR COMP. | N.T 33

24310-08000

Unavailable

7

SECOND GEAR | N.T. 28

24321-08000

Unavailable

8

THIRD GEAR | N.T 25

24330-08000

Unavailable

9

TRANSMISSION OIL RESERVOIR CAP

24871-09200

Unavailable

10

ENGINE SPROCKET | STANDARD 428 N.T 13.

27511-08710

Unavailable

10

SPROCKET, ENGINE (NT:12) | OPTIONAL Z428 N.T 12. This part replaces 27511-08700.

27511-20411

$33.27

10

ENGINE SPROCKET | OPTIONAL Z428 N.T. 14.

27511-08720

Unavailable

11

DRIVE CHAIN ASSY | # 428 x 110L

27600-09010

Unavailable

12

CHAIN JOINT ASSY | # 428

27620-08011

Unavailable

13

CROSS HEAD SCREW | ISO

02121-05128

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 02121-05121.

02122-05121

Unavailable

14

ROLLER

06221-07093

Unavailable

14

DOWEL PIN | UP TO E.NO 532 14829

04221-07109

Unavailable

15

TOP PINION LOW GEAR THRUST WAS | OD=25(0.98) ID=14(0.55) T=1.0(0.04)

08211-14251

Unavailable

15

TOP PINION LOW GEAR THRUST WAS | OD=25(0.98) ID=14(0.55) T=2.0(0.08)

08211-14253

Unavailable

16

THIRD PINION THRUST WASHER | OD=28(1.10) ID=20(0.79) T=1.5(0.06)

08211-20282

Unavailable

17

TOP PINION ADJUSTING WASHER | OD=24(0.95) ID=15(0.59) T=0.2(0.008)

08221-15244

Unavailable

18

ENGINE SPROCKET NUT

09140-20001

$3.37

19

TOP PINION LOW GEAR THRUST WAS | OD 27(1.06) ID=14(0.55) T=1.0(0.04)

09160-14004

Unavailable

20

THIRD PINION SECOND GEAR THRUS | OD 27(1.06) ID=20(0.79) T=1.0(0.04)

09160-20009

Unavailable

21

LOCK WASHER | OD 38(1.11) ID=16.5(0.65) T=1.2(0.05) This part replaces 09167-20006.

09167-20009

$2.03

21

ENGINE SPROCKET WASHER | FOR 27511 06700 SB2511S12 OXIESAL

09167-20005

Unavailable

22

ENGINE SPROCKET SPACER | OD=24(0.95) ID=15(0.59) T=0.3(0.012)

09180-20009

Unavailable

23

TOP PINION ADJUSTING WASHER | OD 27(1.06) ID=20(0.79) T=0.2(0.008)

09181-15002

Unavailable

24

THIRD PINION ADJUSTING WASHER | OD=27(1.06) ID=20(0.79) T=0.3(0.012)

09181-20002

Unavailable

25

THIRD PINION ADJUSTING WASHER

09181-20003

Unavailable

26

TRANSMISSION SLOTTLED BEARING

09262-20010

Unavailable

27

TRANSMISSION SHAFT NEEDLE BEAR | OD=42(1.65) ID=25(0.99) W=10(0.39)

09263-14002

Unavailable

28

DRIVE SHAFT OIL SEAL | OD=24(0.95) ID=6(0.24) W=8(0.32)

09283-25010

Unavailable

29

PUSH ROD OIL SEAL | OD=24(0.94) ID=18(0.71) L=25.5(1.01)

09285-06003

Unavailable

30

DRIVE SHAFT BUSHING

09319-18001

Unavailable

30

DRIVE SHAFT BUSHING | UP TO E.NO.S32 14290 OD=24(0.94) ID=15(0.59) L=25.5(1.00)

24382-50520

Unavailable

31

COUNTER SHAFT BUSHIN | OD=24(0.94) ID=18(0.71) L=19.5(0.77)

09319-18002

Unavailable

31

COUNTER SHAFT BUSHING | UP TO E.NO.S 32 14820 OD=24(0.94)ID 14(0.55) L=20.5(0.81)

24381-50600

Unavailable

32

TRANSMISSION SHAFT CIRCLIP

09380-20002

Unavailable

33

CRANKSHAFT SLOTTED BEARING POS

09390-47001

Unavailable
