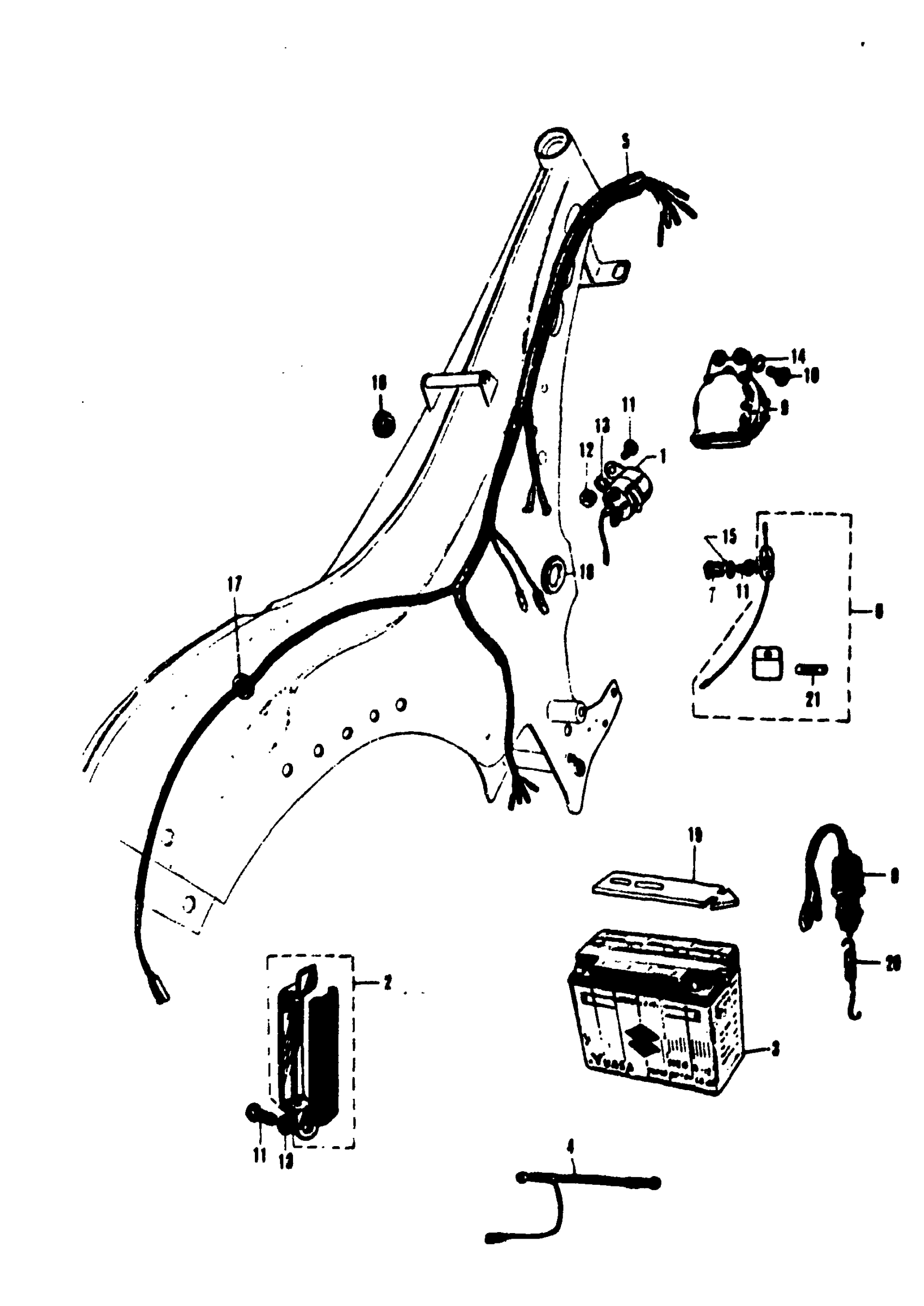

Suzuki S32-2 (1968) STARTER SWITCH-BATTERY-FUSE CASE WIRING HARNESS-BRAKE LAMP SWITCH-HORN Diagram

RELAY ASSY,STAR | 150 This part replaces 31800-09031.

31800-37021

$71.42

BATTERY HOLDING PLATE

33600-08820

Unavailable

BATTERY ASSY | 12V 10AH

33610-09010

Unavailable

BATTERY CABLE

33820-08000

Unavailable

MAIN WIRING HARNESS

36610-09610

Unavailable

FUSE CASE ASSY | 15A

36740-01010

Unavailable

FUSE CASE HOLDER

36791-09010

Unavailable

BRAKE LAMP SWITCH ASSY

37740-11010

Unavailable

HORN | 150

38500-08321

Unavailable

BOLT, REAR This part replaces 01121-08208.

01500-08207

$2.53

SCREW This part replaces 02111-06128.

02112-06127

$1.84

.NUT This part replaces 08311-31068.

08310-00067

$2.13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

MAIN WIRING HARNESS BUSHING | OD=22(0.87) ID=6(0.24) W=10(0.93)

09308-06002

Unavailable

MAIN WIRING HARNESS BUSHING | OD=22(0.87) ID=14(0.55) W=8(0.32)

09308-14001

Unavailable

MAIN WIRING HARNESS BUSHING

09308-16001

Unavailable

STARTER DYNAMO WIRING HARNESS

09410-00004

Unavailable

BRAKE LAMP SWITCH SPRING

09443-06006

Unavailable

FUSE | 15A D=6.5(0.26) L=30(1.18)

09481-15001

$2.06
