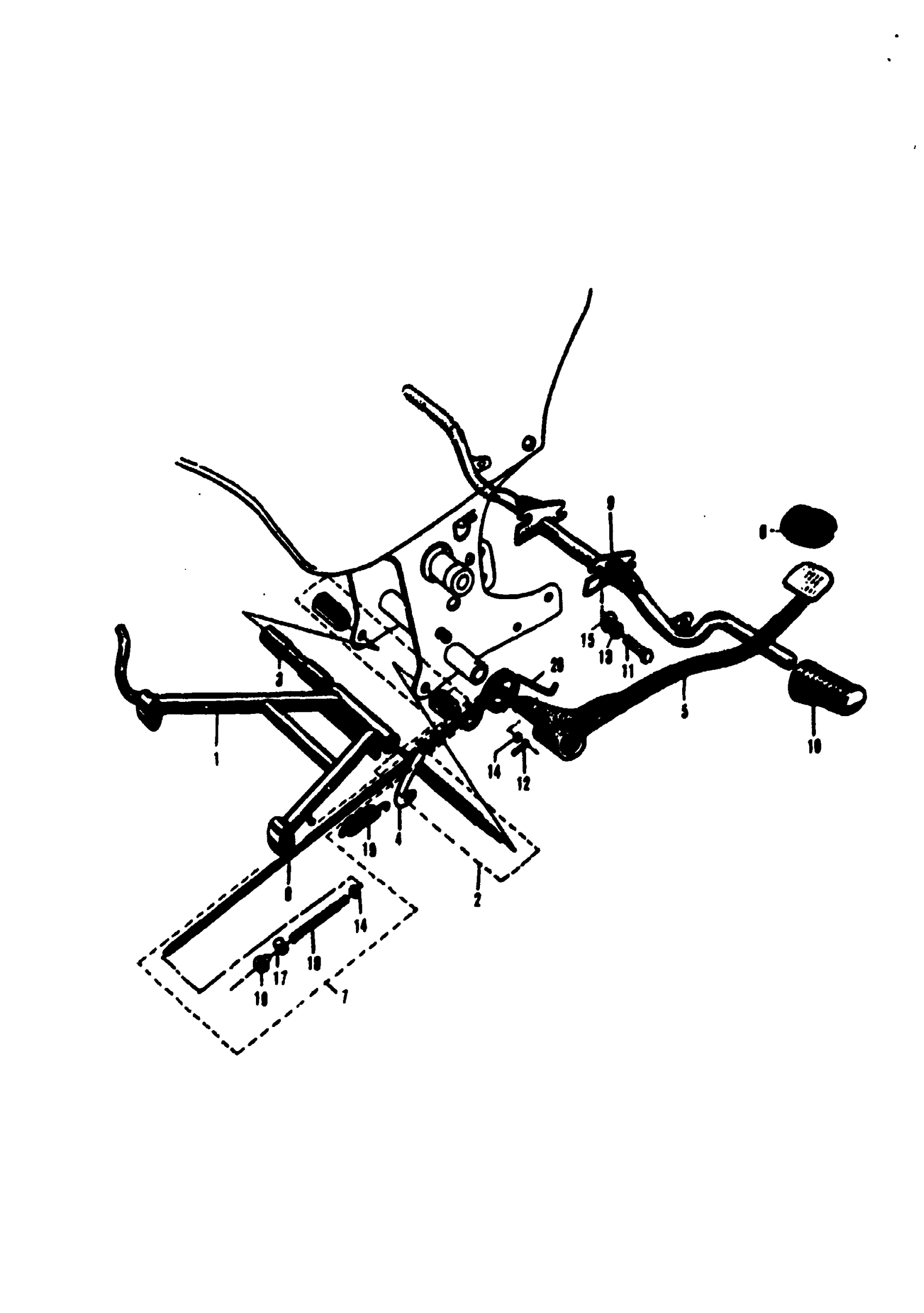

Suzuki S32-2 (1968) STAND-BRAKE PEDAL-FOOTREST Diagram

#

Description
Price

1

CENTER STAND

42100-09001

Unavailable

2

CENTER STAND FITTINGS

42100-09821

Unavailable

3

CENTER STAND SPACER | OD=16(0.63) ID=10.4(0.41) L=107.1(4.22)

42221-08001

Unavailable

4

CENTER STAND SPRING HOOK

42250-08000

Unavailable

5

BRAKE PEDAL

43110-09003

Unavailable

6

BRAKE PEDAL RUBBER

43151-01000

Unavailable

7

BRAKE ROD ASSY

43300-08000

Unavailable

8

BRAKE ROD

43311-08000

Unavailable

9

FOOTREST BAR

43510-09200

Unavailable

10

FOOTREST RUBBER

43551-09000

Unavailable

11

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

12

COTTER PIN

04111-20188

Unavailable

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

WASHER This part replaces 08322-21088.

08322-01087

$2.13

16

.NUT This part replaces 09150-06001.

09150-06010

$3.10

17

.PIN (13X18) This part replaces 09209-13001.

09209-13018

$3.42

18

BRAKE RED ADJUSTING SPRING

09440-09002

Unavailable

19

CENTER STAND SPRING

09443-16004

Unavailable

20

SPRING This part replaces 09448-37002.

09448-37002-XC0

Unavailable
