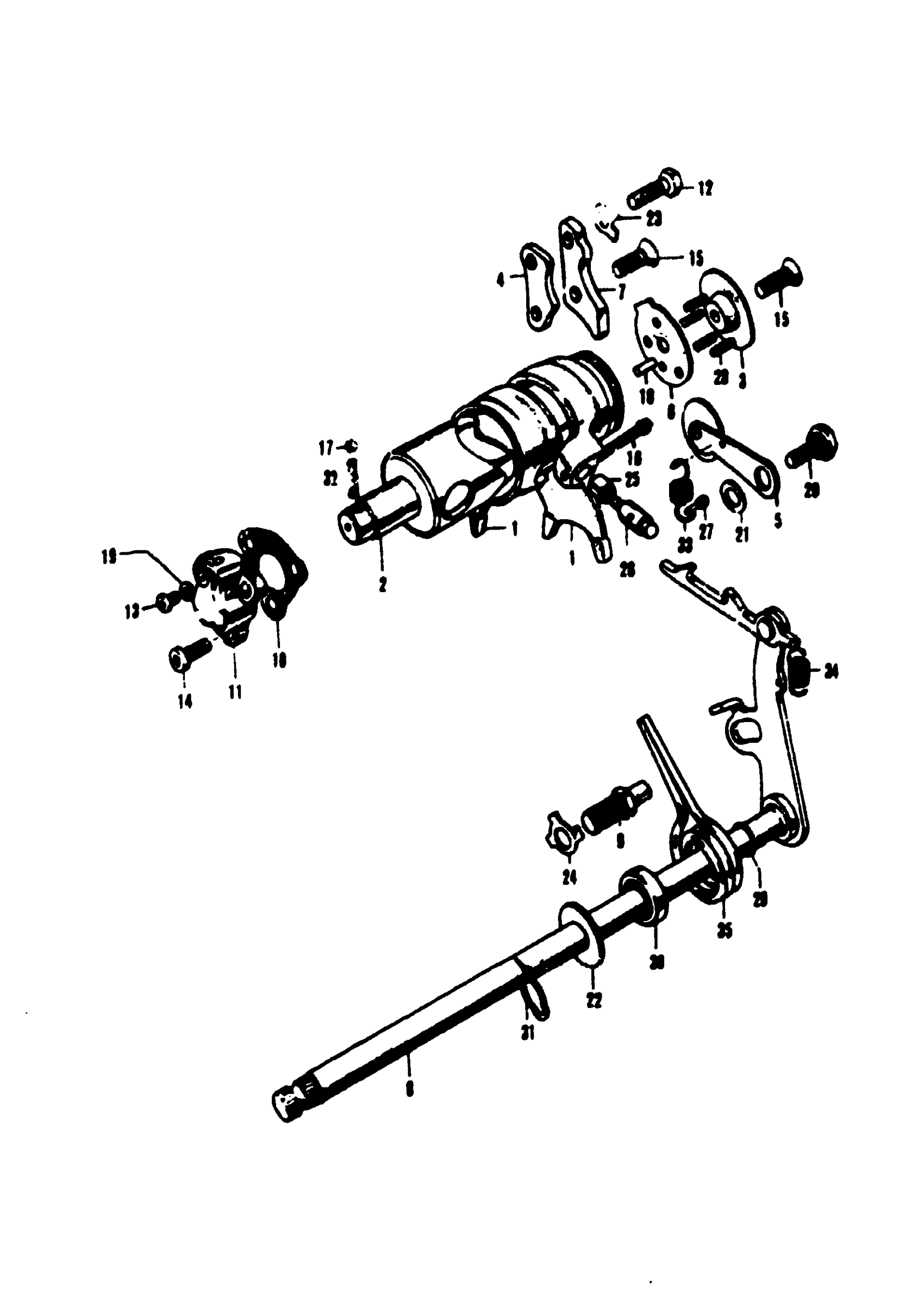

Suzuki S32-2 (1968) SHIFTING CAM-CHANGE SHAFT NEUTRAL INDICATOR SWITCH Diagram

#

Description
Price

1

HIGH SPEED GEAR SHIFTING FORK

25221-08600

Unavailable

2

SHIFTING CAM

25311-09600

Unavailable

3

SHIFTING CAM PIN RETAINER

25322-09000

Unavailable

4

SHIFTING CAM GUIDE

25341-09000

Unavailable

5

SHIFTING CAM STOPPER COMP.

25350-09000

Unavailable

6

SHIFTING CAM SIDE PLATE

25361-09600

Unavailable

7

CHANGE POWL GUIDE

25462-09600

Unavailable

8

CHANGE SHAFT COMP.

25510-09201

Unavailable

9

CHANGE ARM STOPPER

25671-09000

Unavailable

10

NEUTRAL INDICATOR SWITCH GASKE

37712-09001

Unavailable

11

NEUTRAL INDICATOR SWITCH | ISO

37721-09002

Unavailable

12

BOLT This part replaces 01112-06208.

01500-06207

$2.28

13

SCREW | ISO This part replaces 02111-04068.

02112-0406B

$1.55

13

NO DESCRIPTION AVAILABLE This part replaces 02111-04061.

02111-04062

Unavailable

14

SCREW | ISO This part replaces 02111-05168.

02112-05167

$1.97

14

CROSS HEAD SCREW

02111-05161

Unavailable

15

CROSS HEAD SCREW

02121-06208

Unavailable

16

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

17

NEUTRAL INDICATOR SWITCH BALL

06111-06004

Unavailable

18

DOWEL PIN

06211-04123

Unavailable

19

WASHER This part replaces 08322-21048.

08322-01047

$1.86

20

SHIFTING CAM STOPPER BOLT

09111-06003

Unavailable

21

SHIFTING CAM STOPPER WASHER | O.D. 13 0.51 .I.D. 6.5 0 26, T. 1 00 04

09160-06008

Unavailable

22

WASHER (12.5X26X1.6) | O.D. 27 1 06. I.D 12 5 0.49. T. 1 50.06 This part replaces 09160-12020.

09160-12089

$1.97

23

SHIFTING CAM GUIDE LOCK WASHE This part replaces 09167-06001.

09167-06002

Unavailable

24

CHANGE ARM STOPPER FOLDING WAS | O.D. 14 0 55 .I.D. 10 0 39. 1 2 0 0O.D. 14 0 55 .I.D. 10 0 39. 1 2 0 05

09167-10001

Unavailable

25

ROLLER | O.D 9 3 0.39 I.D. 6 0 24 @ 6 0 24O.D 9 3 0.39 I.D. 6 0 24 @ 6 0 24 This part replaces 09180-06004.

09180-06086

$2.50

26

GEAR SHIFTING FORK GUIDE

09209-10003

Unavailable

27

SHIFTING CAM STOPPER SPRING HO

09220-04002

Unavailable

28

SHIFTING CAM PM | O.D 4 0 16 I. 20 0 78

09261-04003

Unavailable

29

CHANGE SHAFT RIGHT OIL SEAL | O.D 12 0 47 I.D 10 0 39. T 1.5 0 06

09280-10001

$2.02

30

OIL SEAL (12X22X9) | O.D. 22 0 87. I.D 12 9 47. @ 7 0 28 This part replaces 09285-12001.

09285-12006

$6.32

31

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

32

NEUTRAL INDICATOR SWITCH BALL

09440-04005

Unavailable

33

SHIFTING CAM STOPPER SPRING

09443-07005

Unavailable

34

CHANGE PAWL RETURN SPRING

09443-07006

Unavailable

35

CHANGE SHAFT RETURN SPRING

09444-26003

Unavailable
