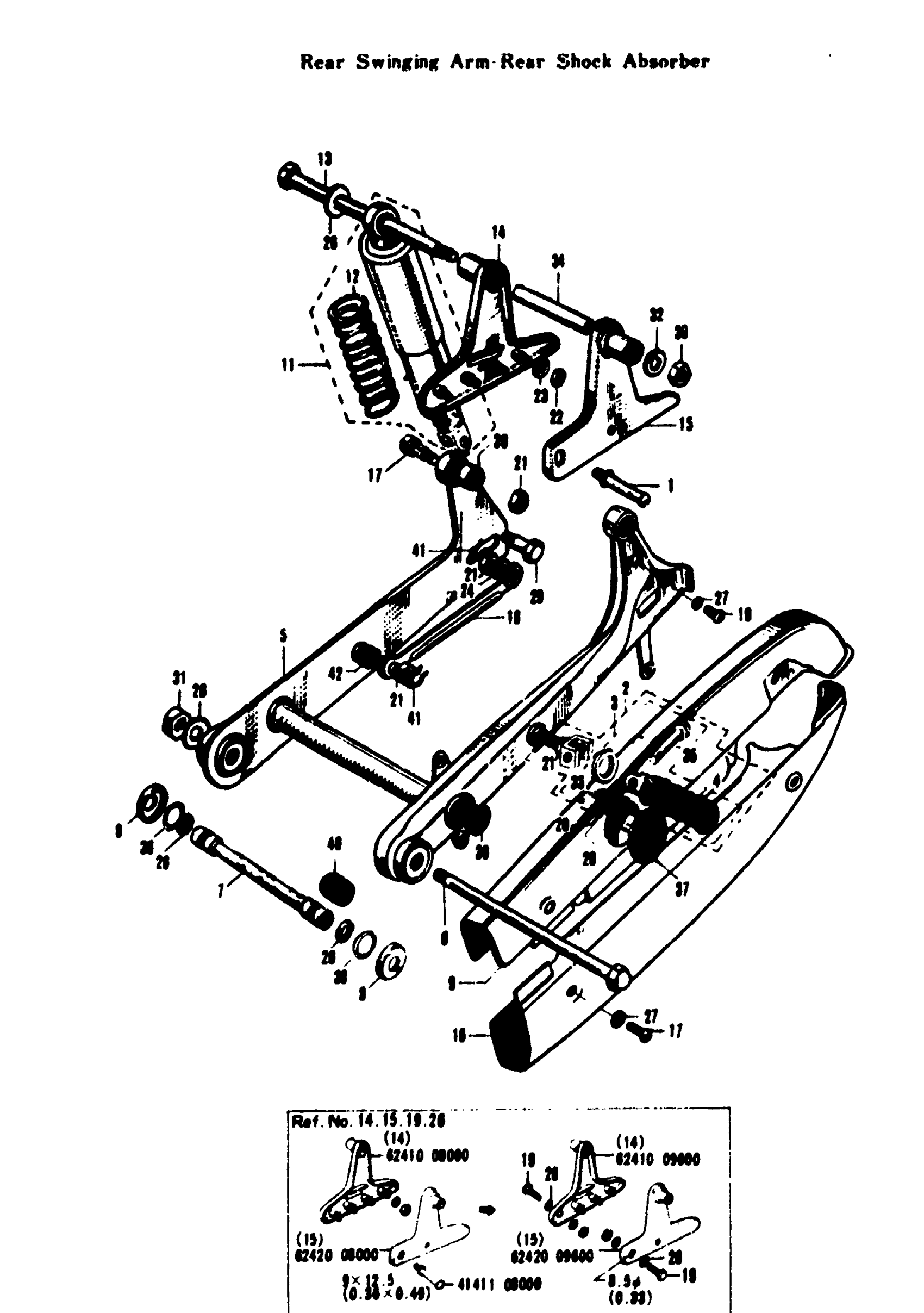

Suzuki S32-2 (1968) REAR SWINGING ARM-REAR SHOCK ABSORBER Diagram

#

Description
Price

1

FRAME HAND GRIP | UP TO E.NO S32 20578 CHROME PLATED

41411-08000

Unavailable

2

REAR FOOTREST ASS'Y

43600-03000

Unavailable

3

FOLDING FOOTREST RUBBER ASS'Y

43600-03805

Unavailable

4

FOLDING FOOTREST RUBBER

43610-03000

Unavailable

5

REAR SWINGING ARM COMP.

61101-09814

Unavailable

6

REAR SWINGING ARM PIVOT SHAFT | ISO

61211-09200

Unavailable

7

REAR SWINGING ARM PIVOT SHAFT | L=182.2(7.17)

61251-09200

Unavailable

8

REAR SWINGING ARM PIVOT DUST S

61262-09200

$3.59

9

CHAIN CASE UPPER

61310-08001

Unavailable

10

CHAIN CASE LOWER

61320-08001

Unavailable

11

REAR SHOCK ABSORBER ASS'Y | CHROME PLATED

62100-09600

Unavailable

12

REAR SHOCK ABSORBER SPRING

62211-09210

Unavailable

13

REAR SHOCK ABSORBER UPPER SHAF | CHROME PLATEDCHROME PLATED

62311-08001

Unavailable

14

RIGHT REAR SHOCK ABSORBER FITT | CHROME PLATEDCHROME PLATED

62410-09600

Unavailable

14

RIGHT REAR SHOCK ABSORBER FITT | CHROME PLATED UP TO E.NO S32 30573CHROME PLATED UP TO E.NO S32 30573

62410-08000

Unavailable

15

LEFT REAR SHOCK ABSORBER FITTI | CHROME PLATEDCHROME PLATED

62420-09600

Unavailable

15

LEFT REAR SHOCK ABSORBER FITTI | CHROME PLATED UP TO E.NO S32 20578CHROME PLATED UP TO E.NO S32 20578

62420-08000

Unavailable

16

REAR TORQUE LINK

64310-08000

Unavailable

17

CROSS HEAD SCREW

01111-06088

Unavailable

18

CROSS HEAD SCREW

01111-06168

Unavailable

19

BOLT | FROM E NO S32 20579 This part replaces 01221-08207.

01204-08207

$2.30

20

COTTER PIN

04111-20188

Unavailable

21

NUT This part replaces 08311-31108.

08310-00107

$2.19

22

NUT This part replaces 08312-31088.

08310-00087

$2.13

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

WASHER | FROM E NO S32 20579 This part replaces 08322-11088.

08322-01087

$2.13

26

WASHER This part replaces 08322-11128.

08322-01127

$1.84

27

WASHER This part replaces 08322-21068.

08322-01067

$2.13

28

REAR SHOCK ABSORBER LOWER BOLT

09111-10001

Unavailable

29

REAR TORQUR LINK FITTING BOLT

09119-10001

Unavailable

30

REAR SHOCK ABSORBER UPPER NUT | CHROME PLATED

09140-10001

Unavailable

31

REAR SWINGING ARM PIVOT SHAFT | ISOISO

09140-12101

Unavailable

31

REAR SWINGING ARM PIVOT SHAFT | CHROME PLATEDCHROME PLATED

09140-12001

Unavailable

32

WASHER, LOWER (10.5X24X2.3) | OD=24(0.95) ID=10.5(0.41) T=2.3(0.09) This part replaces 09160-10001.

09160-10093

$2.35

33

WASHER This part replaces 09160-19004.

09160-19024

$2.65

34

REAR SHOCK ABSORBER FITTING BR | OD=18.6(0.73) ID 12.2(0.48), L=114(0.79)

09180-12004

Unavailable

35

FOLDING FOOTREST RUBBER FITTIN

09200-06010

$1.72

36

SWINGING ARM JOINT CAP

09250-22002

$1.99

37

CHAIN LASPECTION HOLE CAP

09250-40001

Unavailable

38

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

39

REAR SHOCK ABSORBER BUSHING | OD=22.3(0.88) ID=12(0.47) W=20(0.79)

09319-12002

Unavailable

40

REAR SWINGING ARM PIVOT SHAFT | OD=36(1.42) ID=26(1.02) W=36(1.42)

09320-26001

Unavailable

41

REAR TORQUE LINK FITTING CLIP

09384-08001

Unavailable

42

REAR TORQUE LINK SPRING

09440-18002

$1.49
