Partiron

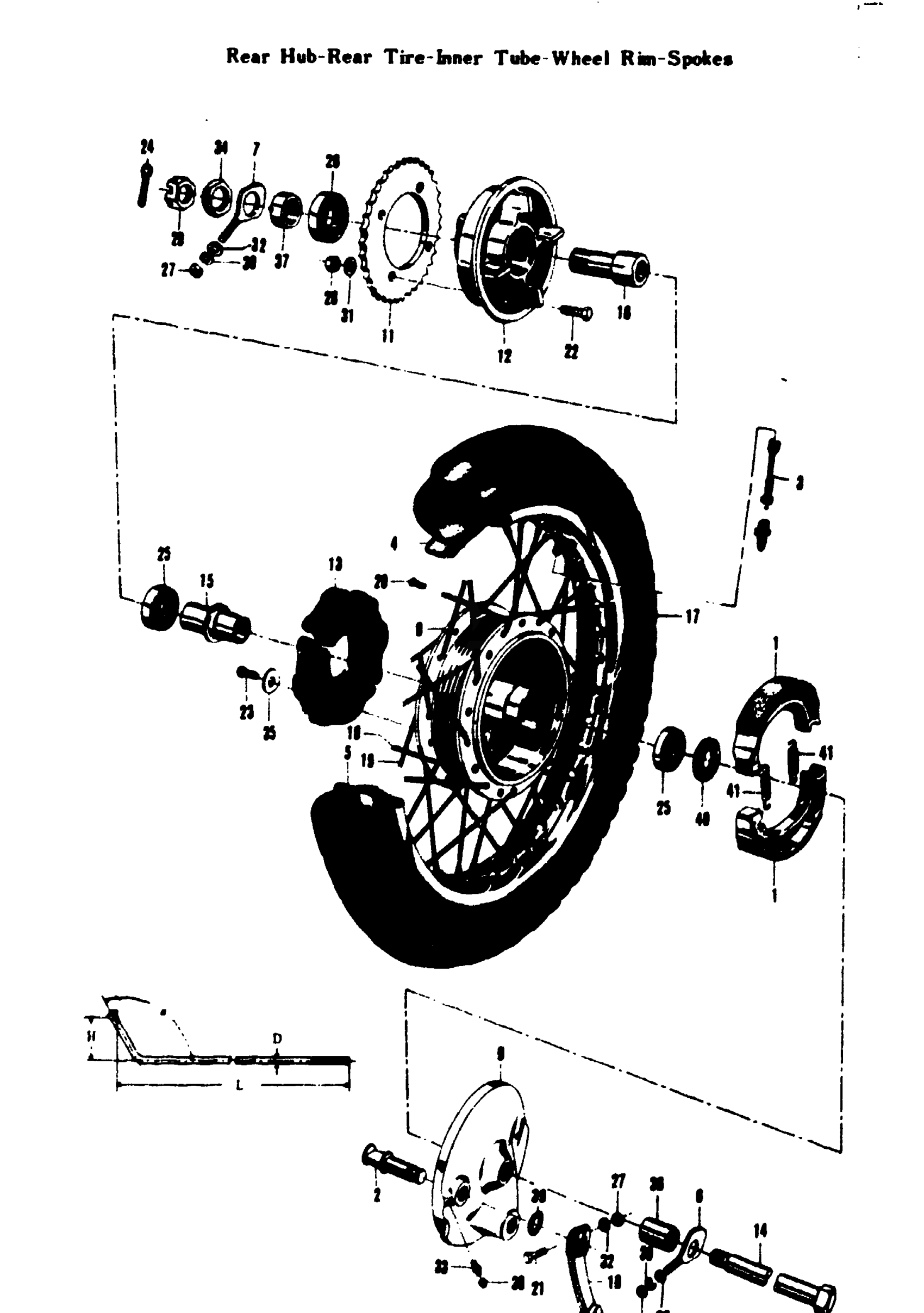

Suzuki S32-2 (1968) REAR HUB-REAR TIRE-INNER TUBE-WHEEL RIM-SPOKES Diagram

#

Description
Price

0

REAR HUB ASSY | INCLUDES REF NO. 1,2,8~10,12-16,21,23~27,29,30,32-40&41

64000-08825

Unavailable

1

BRAKE SHOE

54410-08800

Unavailable

2

CAM, REAR BRAKE This part replaces 54440-08000.

54440-08004

$27.62

3

INNER TUBE VALVE

55250-01000

Unavailable

4

INNER TUBE PROTACTOR | SIZE=2.73-17

55261-08020

Unavailable

5

WHEEL RIM | SIZE=1.644x17 CHROME PLATED

55311-09220

Unavailable

6

RIGHT CHAIN ADJUSTER | CHROME PLATED

61411-08601

Unavailable

7

LEFT CHAIN ADJUSTER | CHROME PLATED

61421-08601

Unavailable

8

REAR HUB DRUM

64110-08601

Unavailable

9

REAR HUB PANEL

64210-08600

Unavailable

10

REAR BRAKE CAM LEVER | CHROME PLATED

64451-09600

Unavailable

11

REAR SPRECKET | N.T.=38

64511-08001

Unavailable

11

REAR SPROCKET | N.T.=36 OPTIONAL

64511-08710

Unavailable

11

REAR SPROCKET | N.T.=40 OPTIONAL

64511-08720

Unavailable

12

SPROCKET MOUNTING DRUM

64610-08001

Unavailable

13

REAR HUB DRUM SHOCK ABSORBER

64651-08000

Unavailable

14

REAR AXLE | CHROME PLATED

64710-08600

Unavailable

15

REAR HUB BEARING SPACER

64730-08000

Unavailable

16

SPROCKET MOUNTING DRUM SHAFT

64761-08001

Unavailable

17

REAR TIRE | SIZE=2.75-'17'

65100-09210

Unavailable

17

SPOKE SET | INCLUDES REF.NO 18,19&20

65300-08819

Unavailable

18

INNER SPOKE | D=3.2(0.126) L=150(5.91) a=100 H=7(0.276

65321-09220

Unavailable

19

OUTER SPOKE | D=3.2(0.126) L=149.5(5.89) a=78.5'H=8.7(0.343)

65322-09220

Unavailable

20

SPOKE NIPPLE

65325-03020

Unavailable

21

HEXAGON BOLT

01111-06308

Unavailable

22

HEXAGON BOLT

01111-08308

Unavailable

23

SCREW This part replaces 02111-06128.

02112-06127

$1.84

24

COTTER PIN

04111-40358

Unavailable

25

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

26

BEARING (25X52X15) | SEALED BEARING This part replaces 08143-62050.

08143-62057

$24.40

27

.NUT | CHROME PLATED This part replaces 08311-11068.

08310-00067

$2.13

28

NUT This part replaces 08312-11088.

08310-00087

$2.13

29

CASTLE NUT | CHROME PLATED

08314-31167

Unavailable

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

WASHER This part replaces 08322-21068.

08322-01067

$2.13

33

GREASE NIPPLE

08351-11009

$7.51

34

NUT | CHROME PLATED This part replaces 09140-24002.

09140-24010

Unavailable

35

WASHER (6.5X24X1.2) | OD=24(0.95) ID=6.5(0.26) T=1.2(0.05) This part replaces 09160-06002.

09160-06114

$2.03

36

REAR AXLE SPACER | OD=28(1.10) ID=17.5(0.69) L==33.25(1.31) CHROME PLATED

09180-17003

Unavailable

37

SPROCKET MOUNTING DRUM SHAFT S | OD=30.5(1.20) ID=25(0.99),OD=30.5(1.20) ID=25(0.99) L=12.5(0.49)

09180-25002

Unavailable

38

GREASE NIPPLE CAP

09251-04001

Unavailable

39

BRAKE CAM SHAFT DUST SEAL

09281-15001

Unavailable

40

HUB DRUM OIL SEAL | OD=44(1.58) ID=24(0.95) W=6(0.24)

09283-25001

Unavailable

41

BRAKE SHOE SPRING

09443-10001

Unavailable
