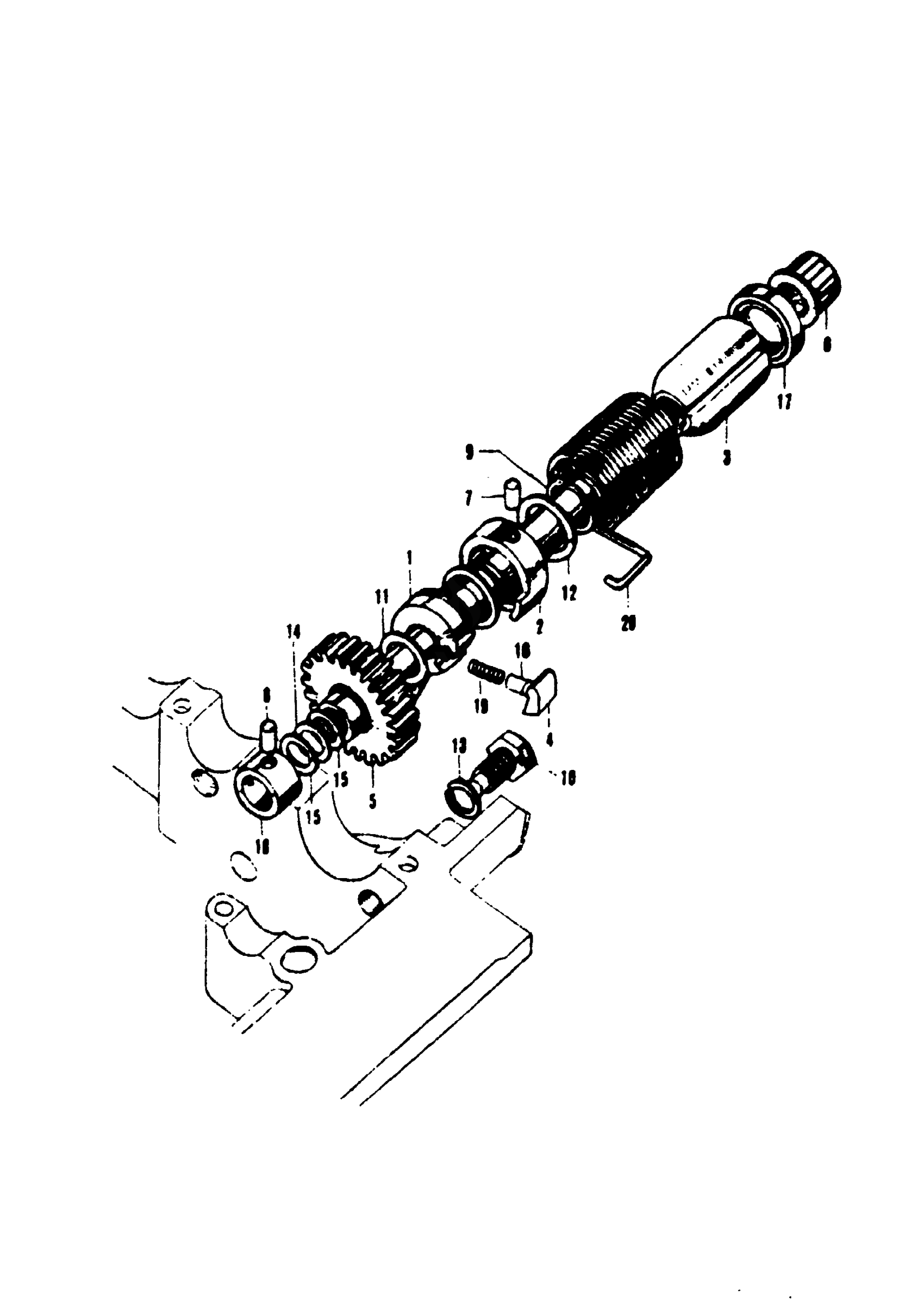

Suzuki S32-2 (1968) KICK STARTER Diagram

#

Description
Price

1

KICK STARTER SHAFT

26211-09000

Unavailable

2

KICK STARTER SHAFT RIGHT BUSHI | OD=37(1.46) ID=20(0.79) W=15(0.59)

26215-09000

Unavailable

3

KICK STARTER SHAFT RETURN SPRI

26221-08000

Unavailable

4

KICK STARTER PAWL

26231-08000

Unavailable

5

KICK STARTER PINION | NT=24

26241-09000

Unavailable

6

KICK STARTER SHAFT CAP

26391-08000

Unavailable

7

DOWEL PIN

04221-07109

Unavailable

8

DOWEL PIN

04221-07129

$1.86

9

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

$2.03

10

KICK STARTER SHAFT STOPPER | ISO

09135-12101

Unavailable

10

KICK STARTER SHAFT STOPPER

09135-12001

Unavailable

11

KICK STARTER PINION OUTER THRU | OD 31.5(1.24) ID=13(0.51) T=1.5(0.06)

09160-13002

Unavailable

12

KICK STARTER SHAFT THRUST WASH | OD=30.5(1.20) ID=20(0.79) T=1.0(0.04)

09160-20004

Unavailable

13

KICK STARTER SHAFT STOPPER LOC | OD=18.9(0.78) ID=12.3(0.49) T=2.5(0.10)

09162-12001

Unavailable

14

WASHER | OD=24(0.95) ID=13(0.52) T=0.5(0.02) This part replaces 09164-13001.

09164-13005

$3.90

15

KICK STARTER PINION THRUST WAS | OD=24(0.95) ID=13(0.51) T=0.5(0.02)

09181-13001

Unavailable

16

KICK STARTER SHAFT PAWL ROLLER | OD=5(0.12) ID=10.5(0.41)

09202-05003

Unavailable

17

SEAL,OIL(16X30X | OD=30(1.18) ID=16(0.03) W=8(0.34) This part replaces 09285-16002.

09285-16005

$2.75

18

KICK STARTER SHAFT LEFT BUSHIN | OD=24(0.95) ID=13(0.51) W=15(0.59)

09300-13001

Unavailable

19

KICK STARTER SHAFT PAWL SPRING

09440-04002

Unavailable

20

KICK STARTER SHAFT RETURN SPRI

09448-37006

Unavailable
