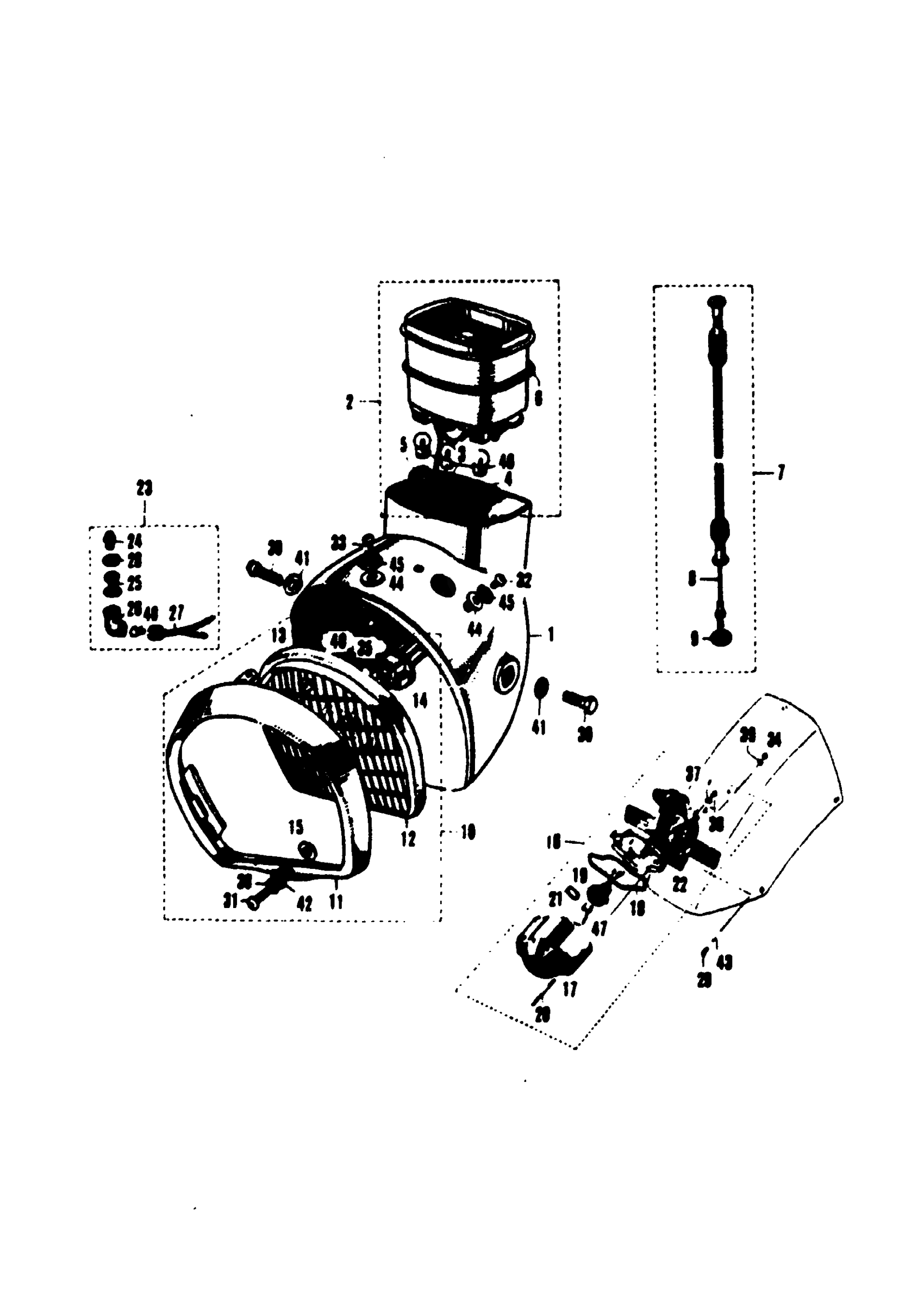

Suzuki S32-2 (1968) HEAD LAMP-TAIL/BRAKE LAMP HIGH BEAM INDICATOR SPEEDOMETOR Diagram

#

Description
Price

1

HEAD LAMP HOUSING | PRIMARY

00056-65575

Unavailable

1

HEAD LAMP HOUSING | BLACK

00056-65580

Unavailable

1

HEAD LAMP HOUSING | PERMANENT RED

00056-65595

Unavailable

1

HEAD LAMP HOUSING | PURE WHITE

00056-65600

Unavailable

1

HEAD LAMP HOUSING | LIGHT PERMANENT BLUE

00056-65610

Unavailable

2

SPEEDOMETER ASSY

00058-21740

Unavailable

3

SPEEDOMETER LAMP SOCKET

34173-01010

Unavailable

4

CHARGE INDICATOR LAMP SOCKET | UP TO E.NO.S32 24977

34174-09010

Unavailable

5

NEUTRAL INDICATOR LAMP SOCKET | UP TO E.NO.S32 24977

34179-09010

Unavailable

6

SPEEDOMETER GASKET

34181-09010

Unavailable

7

SPEEDOMETER CABLE ASSY | L=735(28.94)

34910-09220

Unavailable

8

SPEEDOMETER INNER CABLE | L=735(28.94)

34911-08040

Unavailable

9

SPEEDOMETER INNER CABLE OIL SE | OD=14(0.55) ID=7(0.26) W=4(0.20)

34928-08040

Unavailable

10

HEAD LAMP ASSY | ISO

35100-09611

Unavailable

11

HEAD LAMP RIM | ISO; CHROME PLATED

35111-09610

Unavailable

12

HEAD LAMP SEALED BEAM

35121-09610

Unavailable

13

HEAD LAMP FITTING SPRING CLAMP

35128-03611

Unavailable

14

HEAD LAMP SOCKET

35171-09611

Unavailable

15

HEAD LAMP REFLECTOR WASHER

35189-03611

Unavailable

16

TAIL BRAKE LAMP ASSY | ISO

35710-11010

Unavailable

17

TAIL BRAKE LAMP LEAS

35712-11011

Unavailable

17

TAIL BRAKE LAMP LEAS | UP TO E.NO S32 14416

35712-11010

Unavailable

18

TAIL BRAKE LAMP LEAS GASKET

35713-11010

Unavailable

19

TAIL BRAKE LAMP SOCKET | ISO

35715-11012

Unavailable

20

3 x 15CROSS HEAD SCREW | ISO

35723-03312

Unavailable

20

3 x 15CROSS HEAD SCREW

35723-03310

Unavailable

21

"O" RING | UP TO E. NO S32 14416

35726-08000

Unavailable

22

TAIL BRAKE LAMP BRACKET

35726-11012

Unavailable

23

HIGH BEAM INDICATOR LAMP ASSY | 12V 15W

36330-01610

Unavailable

24

HIGH BEAM INDICATOR LAMP LENS

36331-01610

Unavailable

25

HIGH BEAM INDICATOR LAMP LEAS

36332-01610

Unavailable

26

HIGH BEAM INDICATOR LAMP HOLDE

36334-01610

Unavailable

27

HIGH BEAM INDICATOR LAMP SOCKE

36335-01610

Unavailable

28

HIGH BEAM INDICATOR LAMP LEAS | OD=18(0.71) ID=10.5(0.41) T=10(0.04)

36337-01610

Unavailable

29

HEXAGON BOLT

01111-06128

Unavailable

30

BOLT This part replaces 01221-08257.

01204-08257

$1.96

31

SCREW | ISOCHROME PLATED This part replaces 02111-05207.

02112-05207

$1.97

32

SCREW | ISO This part replaces 02131-04107.

02122-0410A

$1.49

32

CROSS HEAD SCREW | CHROME PLATED

02131-04102

Unavailable

33

.SCREW | ISO This part replaces 02131-04127.

02122-0412A

$1.93

33

CROSS HEAD SCREW | CHROME PLATED

02131-04122

Unavailable

34

.NUT This part replaces 08311-11068.

08310-00067

$2.13

35

NUT This part replaces 08312-11088.

08310-00087

$2.13

36

CROWN NUT | ISO

08313-11047

Unavailable

36

CROWN NUT | CHROME PLATED

08313-11042

Unavailable

37

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

39

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

40

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

41

WASHER | CHROME PLATED This part replaces 08322-11087.

08322-01087

$2.13

42

WASHER This part replaces 08322-21058.

08322-01057

$2.13

43

WASHER This part replaces 08322-21068.

08322-01067

$2.13

44

IGNITION SWITCH FITTING GASKET | OD=12.5(0.49) ID=4.2(0.17) T=0.3(0.01)

09161-04005

Unavailable

45

HEAD LAMP RIM FITTING WASHER | OD=4.5(0.18) ID=11.5(0.45) T=0.3(0.01).3 0.01

09165-04004

$1.93

46

SPEEDOMETER LAMP BULB

09471-12001

$1.65

47

BULB (12V,23W/8W) | 12V32 4CP This part replaces 09471-12002.

09471-12035

$4.49

48

HIGH BEAM INDICATER LAMP BULB | 12V 1 5W

09471-12004

$2.69
