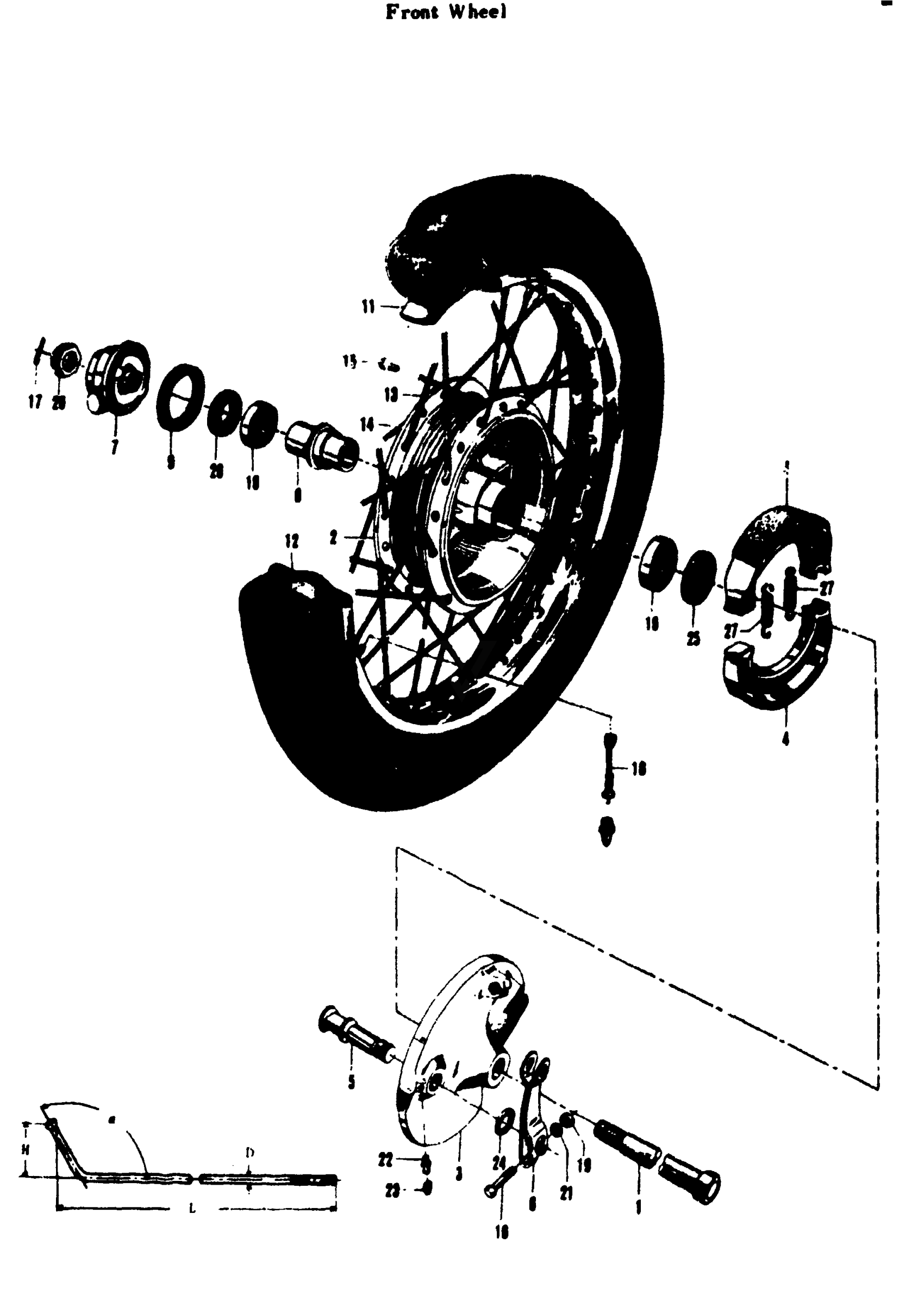

Suzuki S32-2 (1968) FRONT WHEEL Diagram

#

Description
Price

0

FRONT HUB ASSY | INCLUDES REF NO 2.6 5 9.16 27

00058-25541

Unavailable

1

FRONT AXLE | CHROME PLATED

00059-65630

Unavailable

2

FRONT HUB DRUM

54110-08602

Unavailable

3

FRONT HUB PANEL

54210-08600

Unavailable

4

BRAKE SHOE

54410-08000

Unavailable

5

BRAKE CAM SHAFT

54440-09200

Unavailable

6

FRONT BRAKE CAM LEVER | CHROME PLATED

54451-08600

Unavailable

7

SPEEDOMETER GEAR BOX | 150

54600-08011

Unavailable

8

FRONT HUB BEARING SPACER | L=51.5(2.03)

54730-08000

Unavailable

9

SPEEDOMETER GEAR BOX DUST SEAL | OD=72.2(2.84) ID=52(2.05) W=5(0.20)

54871-08000

Unavailable

10

INNER TUBE VALUE

55250-01000

Unavailable

11

PROTECTOR | SIZE=2.75'17' This part replaces 55261-08010.

65261-37300

Unavailable

12

WHEEL RIM | SIZE=1.60A x 17 CHROME PLATED

55311-09220

Unavailable

12

SPOKE SET | INCLUDES REF. NO. 13, 14 & 15

65300-08819

Unavailable

13

INNER SPOKE | D=3.2(0.126) L=150(5.91) a=100 H=7(0.276)

65321-09220

Unavailable

14

OUTER SPOKE | D=3.2(0.126) L=149(5.89) a=78.5 H=8.7(0.343)

65322-09220

Unavailable

15

SPOKE NIPPLE

65325-03020

Unavailable

16

HEXAGON BOLT

01111-06307

Unavailable

17

COTTER PIN

04111-40358

Unavailable

18

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

19

HEXAGON NUT

08311-11067

Unavailable

20

CASTLE NUT

08314-31167

Unavailable

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

GREASE NIPPLE

08351-11009

$7.51

23

GREASE NIPPLE CAP

09251-04001

Unavailable

24

BRAKE CAM SHAFT DUST SEAL | OD=20(0.79) ID=15(0.59) T=2.5(0.09)

09281-15001

Unavailable

25

HUB DRAM OIL SEAL | OD=40(1.58) ID=24(0.95) W=6(0.24)

09283-25001

Unavailable

26

HUB DRUM OUTER OIL SEAL | OD=40(1.58) ID=24(0.95) W=6(0.24)

09289-25001

Unavailable

27

BRAKE SHOE SPRING

09443-10001

Unavailable
