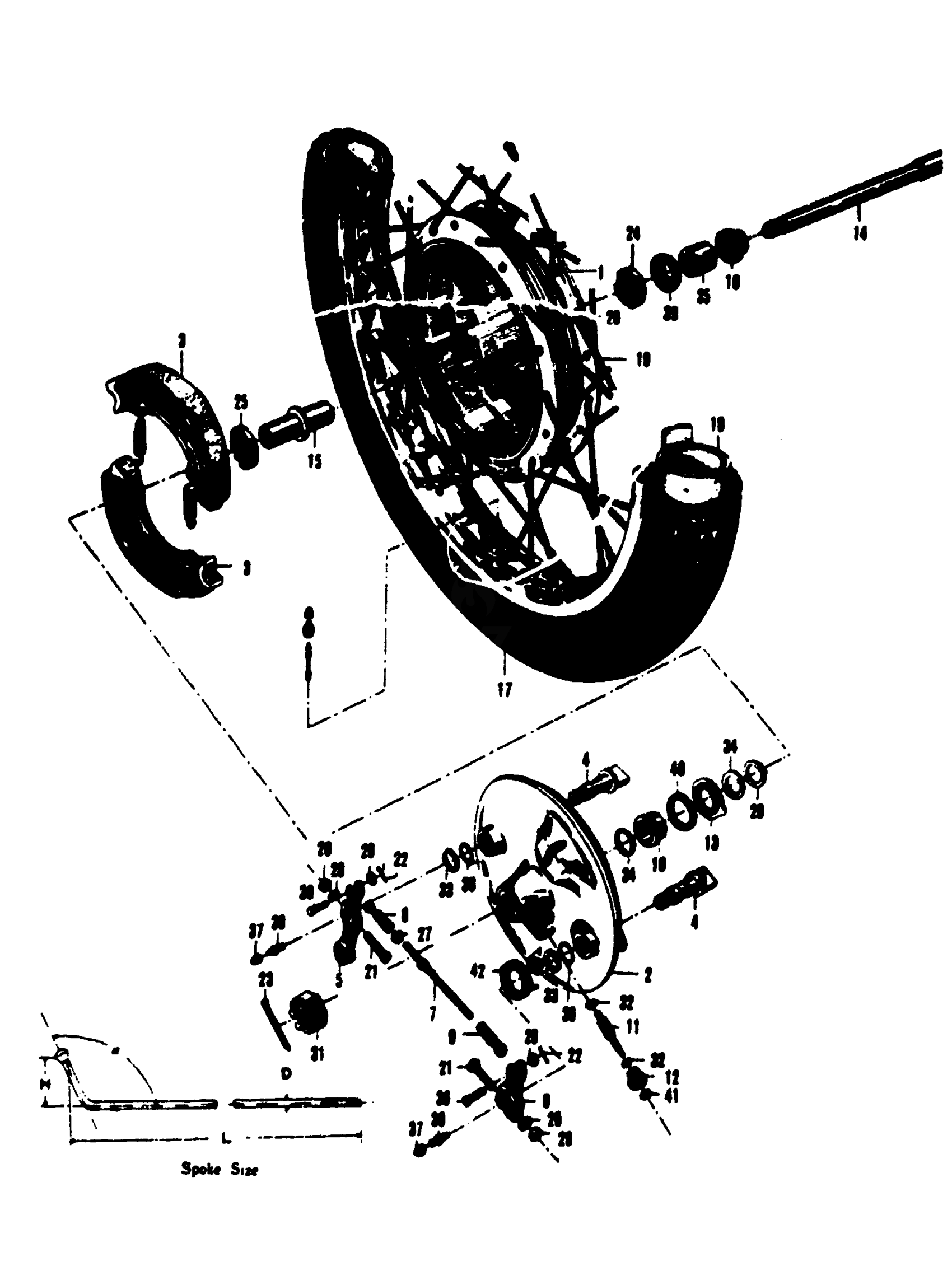

Suzuki S32-2 (1968) FRONT HUB-FRONT TIRE-INNER TUBE-WHEEL RIM-SPOKES Diagram

#

Description
Price

0

FRONT HUB ASS'Y | ISO. INCLUDES REF NO 1~16,21~42 09443-10001(AAH 1261)

54100-08100

Unavailable

1

FRONT HUB DRUM

54110-08100

Unavailable

2

FRONT HUB PANEL

54210-08100

Unavailable

3

BRAKE SHOE

54410-08100

Unavailable

4

BRAKE CAM SHAFT

54440-11002

Unavailable

5

FRONT BRAKE CAM SHAFT FIRST LE

54450-11000

Unavailable

6

FRONT BRAKE CAM SHAFT SECOND L

54401-11000

Unavailable

7

BRAKE CAM LEVER CONNECTING RED

54470-08100

Unavailable

8

BRAKE CAM LEVER CONNECTING RED

54481-11000

Unavailable

9

BRAKE CAM LEVER CONNECTING RED

54482-11000

Unavailable

10

SPEEDEMETER GEAR | N.T=23

54611-08100

Unavailable

11

SPEEDOMETER PINION | N.T.=9

54621-11000

Unavailable

12

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

13

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

14

FRONT AXLE

54710-08100

Unavailable

15

FRONT HUB BEARING SPACER | L=55(2.17)

54730-08100

Unavailable

16

FRONT HUB DRUM DUST SEAL

54892-11000

Unavailable

17

FRONT TIRE | SIZE=2.75'-17'

55100-09210

Unavailable

18

NO DESCRIPTION AVAILABLE | SIZE=2.75'-17' This part replaces 55200-09620.

65200-47C00

Unavailable

18

SPOKE SET | INCLUDES REF.NO.19, 20 & 65325-03020(K10 TO 6542K2)

55300-08809

Unavailable

19

INNER SPOKE | D=3.2(0.13) L=145.5(5.72) a=103 H=7.6(0.30)

55321-08120

Unavailable

20

OUTER SPOKE | D=3.2(0.13) L=145(5.71) a=83.5 H=10.8(0.43)

55322-08120

Unavailable

21

HEXAGON BOLT | CHROME PLATED

01111-06308

Unavailable

22

PIN This part replaces 04111-12108.

04111-1210A

$1.50

23

COTTER PIN

04111-30358

Unavailable

24

BALL BEARING

08113-62000

$13.63

25

BALL BEARING | SEALED BEARING

08143-62002

Unavailable

26

.NUT | CHROME PLATED This part replaces 08311-11068.

08310-00067

$2.13

27

HEXAGON NUT | 150

08311-21058

Unavailable

27

HEXAGON NUT | CHROME PLATED This part replaces 08311-21051.

08311-11051

Unavailable

28

WASHER This part replaces 08322-21068.

08322-01067

$2.13

29

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

30

GREASE NIPPLE

08351-11009

$7.51

31

FRONT AXLE NUT

09141-14001

$4.60

32

WASHER,5.1X9X0. | OD=9(0.35) ID=5.1(0.20) T=0.4(0.015) This part replaces 09160-05001.

09160-05001-A05

$1.87

33

WASHER | OD=24(0.94) ID=15(0.59) T=1.6(0.06) This part replaces 09160-15001.

09160-15048

$2.56

34

SPEEDOMETER GEAR THRUST WASHER | OD=27(1.06) ID=22.5(0.88) T=1.0(0.04)

09160-22001

$2.47

35

FRONT AXLE SPACER | OD=22(0.83) ID=15(0.59) W=25.4(1.00)

09180-15001

Unavailable

36

BRAKE CAM LEVER PIN

09200-06001

Unavailable

37

GREASE NIPPLE CAP.

09251-04001

Unavailable

38

O RING (ID:14.8,D:2.40) | OD=19.6(0.81) ID=14.8(0.58) T=2.4(0.09) This part replaces 09280-15001.

09280-15003

$1.76

39

HUB DRUM OIL SEAL | OD=33(1.30) ID=22(0.87) W=10(0.39)

09284-22001

Unavailable

40

SEAL,OIL(26X38X | OD=38(1.49) ID=26(1.02) W=6(0.24) This part replaces 09285-26001.

09285-26005

Unavailable

41

SPEEDOMETER PINJON OIL SEAL | OD=10(0.39) ID=4.8(0.19) W=4(0.16)

09289-08001

Unavailable

42

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable
