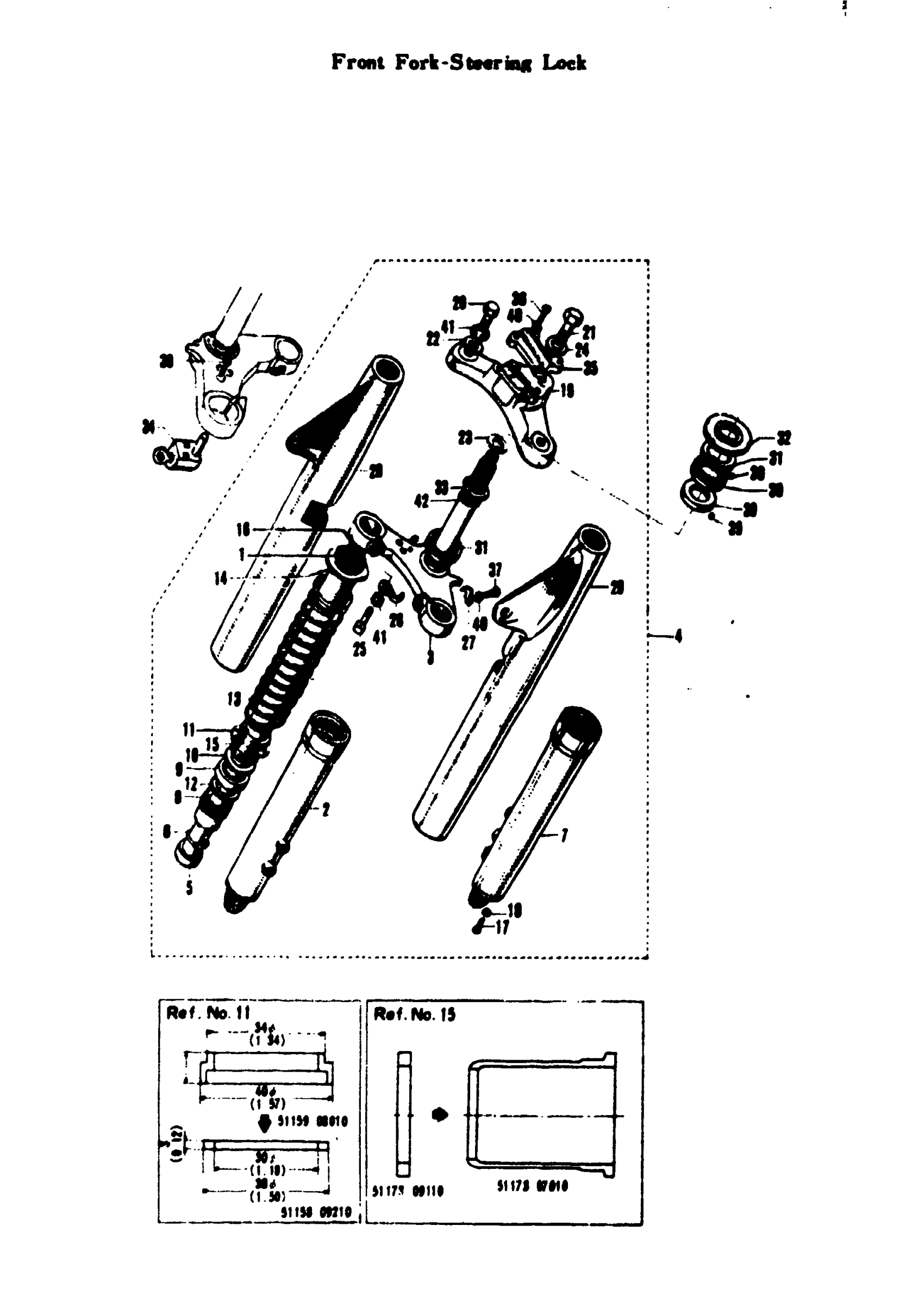

Suzuki S32-2 (1968) FRONT FORK-STEERING LOCK Diagram

#

Description
Price

1

FORK SPRING SPACER | OD=42(1.65), ID=31(1.22) W=12.5(0.49)

00037-40509

Unavailable

2

FORK RIGHT OUTER TUBE | CHROME PLATED

00037-10548

Unavailable

3

STEERING STEM | ISO.INCLUDES REF.NO.29 1 PIECE BLACK

51002-08818-019

Unavailable

4

FRONT FORK ASSY | ISO

51100-09211

Unavailable

5

FORK INNER TUBE

51110-09211

Unavailable

6

O RING | OD 36.5(1.20) ID=26.5(1.04) DIA OFMATERIAL 2(0.08)

51117-08011

Unavailable

7

FORK LEFT OUTER TUBE | CHROME PLATED

51140-08011

Unavailable

8

FORK INNER TUBE GUIDE

51152-08010

Unavailable

9

OIL SEAL | OD=40.5(1 59) ID=30(1.18) W=10.5(0.41 This part replaces 51153-08010.

51153-08011

Unavailable

10

FORK DUST SEAL LOWER WASHER | OD=40.2(1.58) ID=34(1.34) T=1.5(0.06)

51158-08010

Unavailable

11

FORK SPRING SEAT | OD=40.5(1.59) ID=31(1.22) W=9.4(0.37)

51159-08010

Unavailable

11

FORT SPRING SEAT

51158-09210

Unavailable

12

FORK OIL SEAL LOWER WASHER | OD=40.2(1.58) ID=34(1.34) T=1.2(0.05)

51159-50600

Unavailable

13

FORK SPRING

51171-08110

Unavailable

14

FORK SPRING COVER GUIDE | H.=12(0.47)

51172-50601

Unavailable

14

FORK SPRING COVER GUIDE | H.=43(1.69)

51172-50600

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 51173-07010.

51173-07011

Unavailable

15

FORK DUST SEAL | OD=40.5(1.59) ID=30(1.18) T=4(0.16)

51173-07110

Unavailable

16

FORK INNER TUBE SHOCK DAMPER

51181-08010

Unavailable

17

FORK DRAIN PLUG

51182-50761

Unavailable

18

DRAIN PLUG GASKET | OD=10.5(0.41) ID=6(0.24) T=2(0.08)

51183-08010

Unavailable

19

STEERING STEM HEAD

51310-50601

Unavailable

20

FORK FITTING BOLT | OD=12(0.47) L=27(1.06)

51351-50602

Unavailable

21

STEERING STEM HEAD FITTING BOL | ISO,CHROME PLATEDISO,CHROME PLATED

51352-50602

Unavailable

21

STEERING STEM HEAD FITTING BOL | CHROME PLATEDCHROME PLATED

51352-50601

Unavailable

22

FORK FITTING BOLT WASHER | OD=26(1.02) ID=10.5(0.41) T=2.3(0.09)CHROME PLATED

51356-07010

$6.65

23

STEERING STEM HEAD FITTING WAS | OD=34(1.34) ID=18(0.71) T=2.3(0.09)09

51356-08010

Unavailable

24

STEERING STEM HEAD WASHER | OD=30(1.18) ID=12.5(0.49) T=2.3(0.09)CHROME PLATED

51355-08010

Unavailable

25

BOLT This part replaces 51451-03010.

01500-1030A

$3.16

26

SPEEDOMETER CABLE CLIP

51452-08010

Unavailable

27

BRAKE CABLE CLIP

51453-03010

$5.50

28

NO DESCRIPTION AVAILABLE This part replaces 51510-08010.

51500-08880-126

Unavailable

29

FORK LEFT COVER

51520-08010

Unavailable

30

STEERING INNER RACE

51611-08000

Unavailable

31

STEERING OUTER RACE

51621-08000

Unavailable

32

NUT, STEERING STEM This part replaces 51631-08010.

51631-08000

Unavailable

33

STEERING STEM LOCK NUT

51632-01000

Unavailable

34

NO DESCRIPTION AVAILABLE | ISO This part replaces 51900-08012.

51900-08013

Unavailable

35

HANDLEBER CLAMP

56211-11010

Unavailable

36

BOLT 6X25 This part replaces 01211-06257.

01204-06257

$2.07

37

CROSS HEAD SCREW

02111-06108

Unavailable

38

SCREW | ISO This part replaces 02121-05208.

02122-0520A

$2.27

38

CROSS HEAD SCREW

02121-05201

Unavailable

39

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

40

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

41

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

42

STEERING STEM LOCK WASHER | OD=32(1.26) ID=26(1.02) T=1.2(0.05)

09166-26001

$2.07
