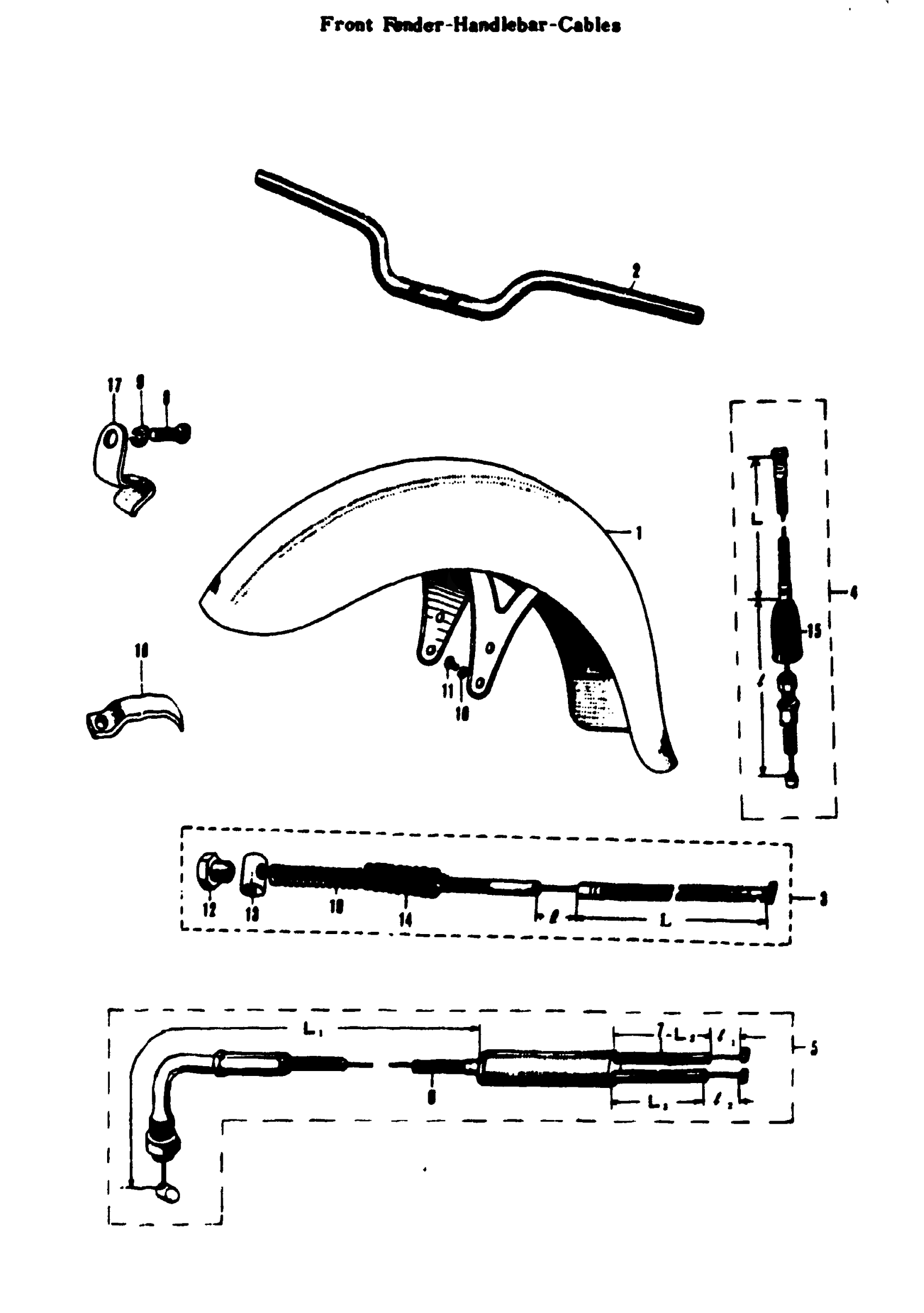

Suzuki S32-2 (1968) FRONT FENDER-HANDLEBAR-CABLES Diagram

#

Description
Price

1

FRONT FENDER

00037-10564

Unavailable

2

HANDLEBAR | CHROME PLATED WESTERN This part replaces 56111-11000.

56110-11600

Unavailable

3

BRAKE CABLE ASSY | L=1000(39.37), l=59(2.32)

58100-09200

Unavailable

4

CLUTCH CABLE ASSY | L=990(38.98), l=122(4.80)

58200-09620

Unavailable

5

THROTTLE CABLE ASSY | ISO.L1=746(29.37) L2(L3)=155(6.10)

58300-09200

Unavailable

6

THROTTLE CABLE COMP.A | ISO.L1=746(29.37)

58310-09200

Unavailable

7

THROTTLE CABLE COMP.B | ISO.L2(L3)+l1(l2)=214(8.42)

58350-09200

Unavailable

8

HEXAGON BOLT

01111-06128

Unavailable

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

FRONT FENDER BRACE BOLT

09100-08003

Unavailable

12

.NUT This part replaces 09150-06001.

09150-06010

$3.10

13

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

14

BRAKE CABLE BOOT

09287-08001

Unavailable

15

CLUTCH CABLE BOOT

09287-10002

Unavailable

16

CLAMP, CABLE This part replaces 09403-00003.

09403-06301

Unavailable

17

THROTTLE CABLE CLIP BAND

09403-00019

Unavailable

18

BRAKE CABLE SPRING

09440-07007

Unavailable
