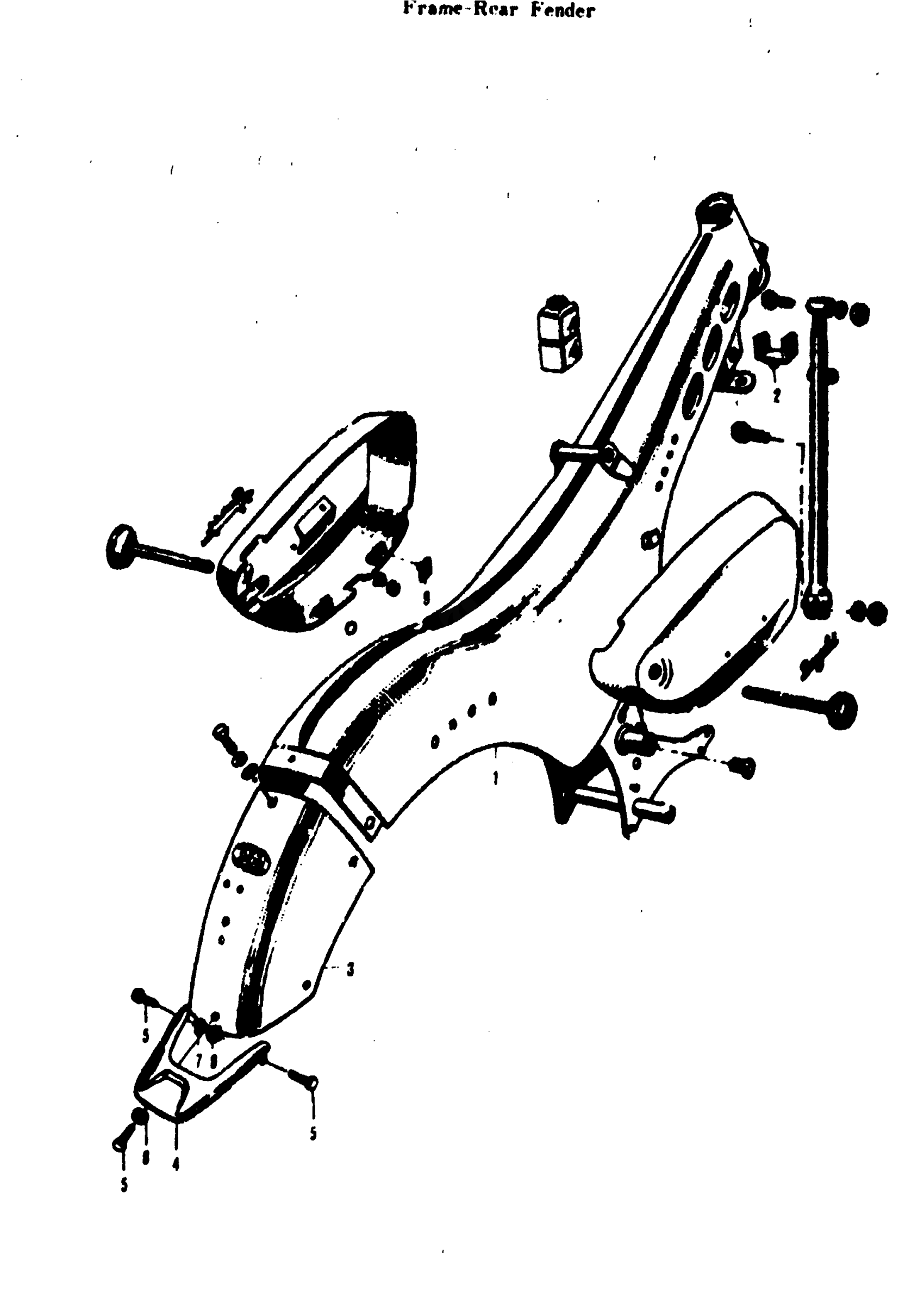

Suzuki S32-2 (1968) FRAME-REAR FENDER Diagram

#

Description

Price

1

FRAME

41100-09202

Unavailable

2

STEERING STOPPER

41360-09600

Unavailable

3

REAR FENDER

63110-09601

Unavailable

4

REAR FENDER EXTENSION | CHROME PLATED

63310-09100

Unavailable

5

BOLT | ISO This part replaces 01111-05088.

01112-05088

Unavailable

6

NUT | ISO This part replaces 08311-11058.

08310-00057

$1.84

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

WASHER This part replaces 08322-21058.

08322-01057

$2.13

9

FRAME COVER FITTING BUSHING

09321-05002

Unavailable
