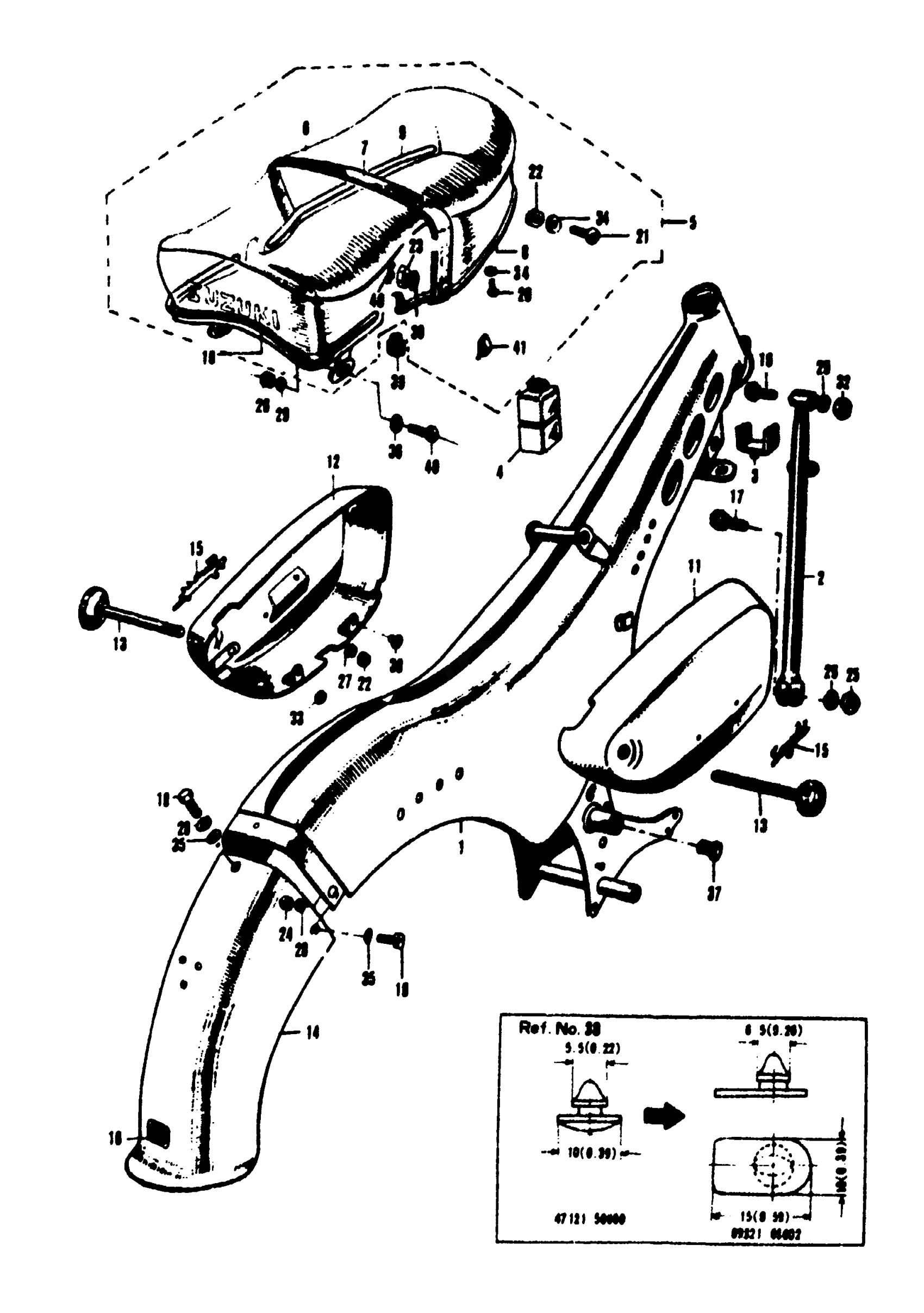

Suzuki S32-2 (1968) FRAME DUAL SEAT COVERS REAR FENDER OIL BOTTLE Diagram

#

Description
Price

1

FRAME

41100-09200

Unavailable

2

ENGINE SUPPORT PIPE

41300-09000

Unavailable

3

STEERING STOPPER

41360-09200

Unavailable

4

OIL BOPLE ASSY

44910-03601

Unavailable

5

DUAL SEAT ASS'Y | ISO

45100-09600

Unavailable

6

DUAL SEAT LEATHER

45160-09600

Unavailable

7

DUAL SEAT PASSENGER STRAP

45180-09600

Unavailable

8

DUAL SEAT RIGHT FRONT RIM

45191-08700

Unavailable

9

DUAL SEAT LEFT FRONT RIM

45192-08700

Unavailable

10

DUAL SEAT REAR RIM

45193-09600

Unavailable

11

FRAME RIGHT COVER | CHROME PLATED

47110-08001

Unavailable

12

FRAME LEFT COVER | CHROME PLATED

47210-08001

Unavailable

13

FRAME COVER KNOB

47230-08201

Unavailable

14

REAR FENDER

63110-08971

Unavailable

15

FRAME COVER EMBLEM | ISO

68131-07601

Unavailable

16

REAR FENDER EMBLEM

68151-01000

Unavailable

17

SMALL HEAD HEXAGON BOLT

01121-08407

Unavailable

18

BOLT This part replaces 01211-06127.

01204-06127

$2.07

19

CROWN HEAD BOLT

01221-08601

Unavailable

20

CROSS HEAD SCREW | ISO

02141-03038

Unavailable

20

CROSS HEAD SCREW

02141-03081

Unavailable

21

NO DESCRIPTION AVAILABLE | ISO This part replaces 02141-03208.

02142-03208

Unavailable

21

CROSS HEAD SCREW

02141-03201

Unavailable

22

NUT | ISO This part replaces 08311-11038.

08310-0003B

$2.83

22

HEXAGON NUT

08311-11031

Unavailable

23

.NUT This part replaces 08311-11068.

08310-00067

$2.13

24

.NUT This part replaces 08311-31068.

08310-00067

$2.13

25

SMALL HEXAGON NUT

08312-11087

Unavailable

26

SMALL HEXAGON NUT

08312-31068

Unavailable

27

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

WASHER This part replaces 08322-21068.

08322-01067

$2.13

31

DEAL SEAT BOLT | OD=8(0.31) SCREW L=22(0.87)

09104-08002

Unavailable

32

ENGINE SUPPORT PIPE UPPER NUT | CHROME PLATED

09140-08001

Unavailable

33

FRAME COVER KNOB STOPPER

09148-08001

Unavailable

34

DEAL SEAT LEATHER FITTING WASH

09160-03001

Unavailable

35

WASHER | CHROME PLATED This part replaces 09160-06007.

09160-06084

$1.78

36

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

37

REAR SWINGING ARM PIVOT BUSHIN

09301-18001

Unavailable

38

FRAME COVER FITTING BUSHING

09321-05002

Unavailable

38

FRAME COVER FITTING BUSHING | UP TO E NO.S32 13600

47121-50600

Unavailable

39

DUAL SEAT BUFFER

09321-10002

$2.22

40

DUAL SEAT PASSENGERSTRAP FITTI

09385-06001

$3.10

41

DUAL SEAT LEATHER FITTING CLIP

09410-00004

Unavailable
