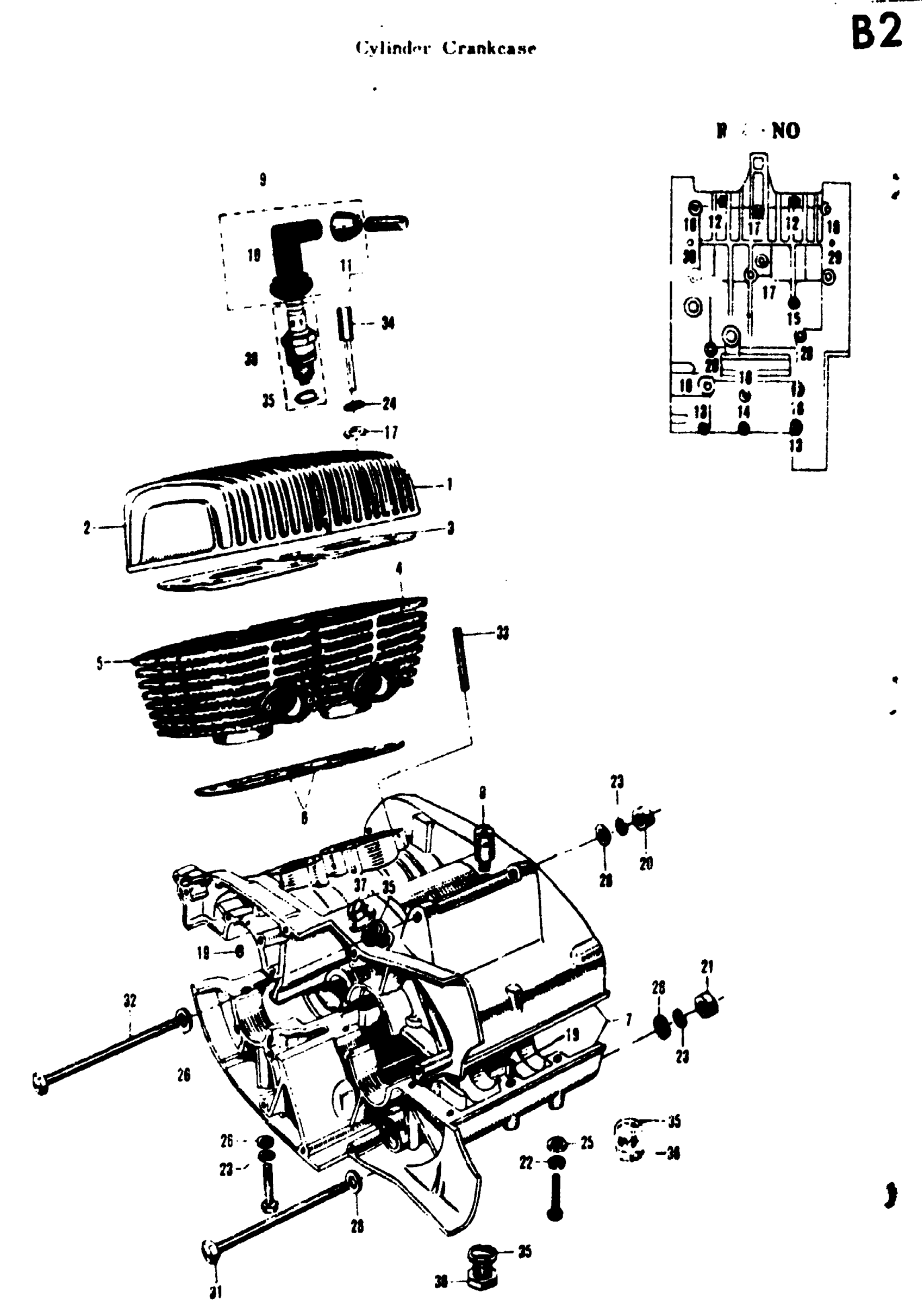

Suzuki S32-2 (1968) CYLINDER CRANKCASE Diagram

#

Description
Price

1

RIGHT CYLINDER HEAD

11111-09605

Unavailable

2

LEFT CYLINDER HEAD

11121-09605

Unavailable

3

CYLINDER HEAD GASKET

11141-09204

Unavailable

3

CYLINDER HEAD GASKET | ID=47.5(1.87) OPTIONAL

11141-09714

Unavailable

4

RIGHT CYLINDER

11210-09204

Unavailable

5

LEFT CYLINDER

11220-09204

Unavailable

6

CYLINDER GASKET

11241-09204

Unavailable

7

CRANKCASE ASSY | ISO INCLODES REF NO. 12-19 23.26 29& 30

11305-09813

Unavailable

8

PLUG, BREATHER This part replaces 24821-09000.

24821-09001

$9.33

9

SPARK PLUG CAP ASSY

33501-10801

Unavailable

10

SPARK PLUG CAP SEAL

33541-11000

Unavailable

11

SPARK PLUG CAP HIGH TENSION CO

33542-11000

Unavailable

12

BOLT This part replaces 01112-06358.

64455-07L00

$1.59

13

BOLT (6X60) This part replaces 01112-06608.

09103-06064

$2.12

14

BOLT 6X50 This part replaces 01112-06658.

09100-06038

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 01112-06758.

01500-06753

Unavailable

16

BOLT This part replaces 01112-06858.

01500-0685B

$3.85

17

BOLT This part replaces 01122-08658.

01500-0865B

$3.49

18

BOLT This part replaces 01122-08908.

01500-0890B

$3.88

19

DOWEL PIN

04211-11129

$1.76

20

SMALL HEXAGON NUT | CHROME PLATED

08312-11087

Unavailable

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

26

WASHER This part replaces 08322-11088.

08322-01087

$2.13

27

WASHER This part replaces 08322-11108.

08322-01107

$2.15

28

STRONG HEXAGON BOLT

09100-06025

Unavailable

29

STRONG SMALL HEAD HEXAGON BOLT

09100-08023

Unavailable

30

BOLT This part replaces 09100-08024.

09100-08228

$7.02

31

STRONG SMALL HEAD HEXAGON BOLT

09100-08032

Unavailable

32

NO DESCRIPTION AVAILABLE | CHROME PLATED This part replaces 09100-08038.

09100-08031

Unavailable

33

CYLINDER STUD BOLT

09108-06003

Unavailable

34

CYLINDER HEAD NUT

09159-06004

Unavailable

35

DRAIN PLUG GASKET | OD=20.5(0.81) ID=14.5(0.58), T=1(0.04)

09168-14004

$1.83

36

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

37

OIL FILLER PLUG

09259-14002

Unavailable

38

SPARK PLUG ASSY | NGK B77C

09482-00010

Unavailable

38

SPARK PLUG ASSY | NGKB 7 OPTIONAL

09482-00008

Unavailable

38

SPARK PLUG ASSY | NGKB 8 OPTIONAL

09482-00014

Unavailable

38

SPARK PLUG ASSY | NGKB 9 OPTIONAL

09482-00017

Unavailable
