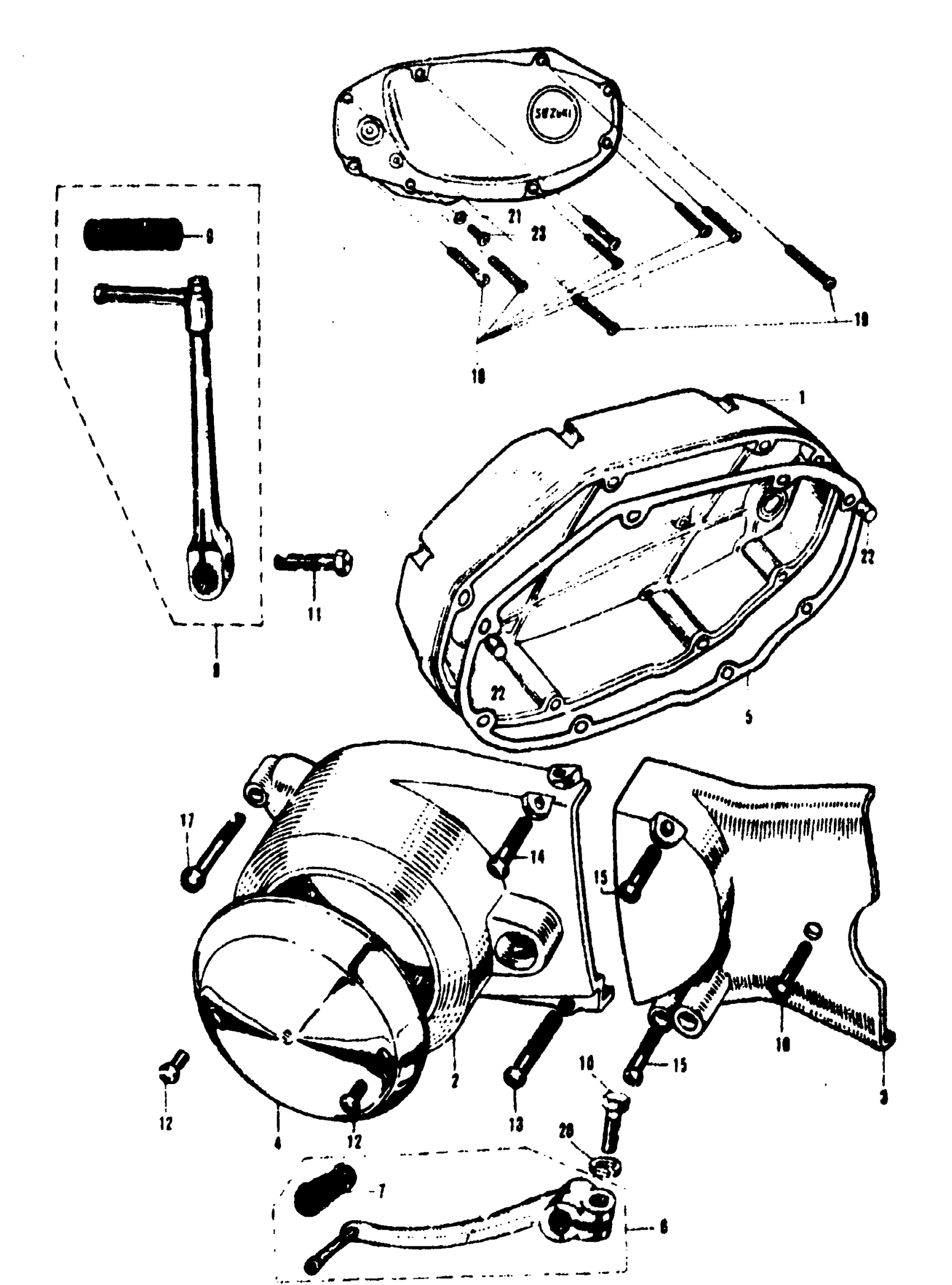

Suzuki S32-2 (1968) CRANKCASE COVERS-GEAR SHIFTING LEVER KICK STARTER LEVER Diagram

#

Description
Price

1

CRANKCASE RIGHT COVER

11341-09601

Unavailable

2

CRANKCASE LEFT COVER | ISO

11351-09600

Unavailable

3

ENGINE SPROCKET COVER

11361-09601

Unavailable

4

DYNAMO INSPECTION CAP | CHROME PLATED

11381-09000

Unavailable

5

CRANKCASE RIGHT COVER GASKET

11482-09201

Unavailable

6

GEAR SHIFTING LEVER ASS'Y | CHROME PLATED

25604-09816

Unavailable

7

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-03201.

25652-16510

$3.74

8

KICK STARTER LEVER ASS'Y | CHROME PLATED

26300-08000

Unavailable

9

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

10

BOLT This part replaces 01112-06207.

01500-06207

$2.28

11

BOLT This part replaces 01122-08257.

01500-08257

$2.50

12

CROSS HEAD SCREW | ISO

02111-05088

Unavailable

12

CROSS HEAD SCREW

02111-05081

Unavailable

13

CROSS HEAD SCREW

02111-06208

Unavailable

14

CROSS HEAD SCREW

02111-06308

Unavailable

15

CROSS HEAD SCREW

02111-06358

Unavailable

16

CROSS HEAD SCREW

02111-06408

Unavailable

17

CROSS HEAD SCREW

02111-06808

Unavailable

18

SCREW This part replaces 02112-06358.

02112-06357

$1.78

19

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

OIL LEVEL SCREW GASKET | OD=11(0.43) ID=6.2(0.25) T=1(0.04)

09168-06001

$1.49

22

CRANKCASE COVER DOWEL PIN | OD=3(0.32) ID=6.2(0.25) W=11(0.43)

09206-08001

$1.78

23

CROSS HEAD SCREW

09247-06001

Unavailable
