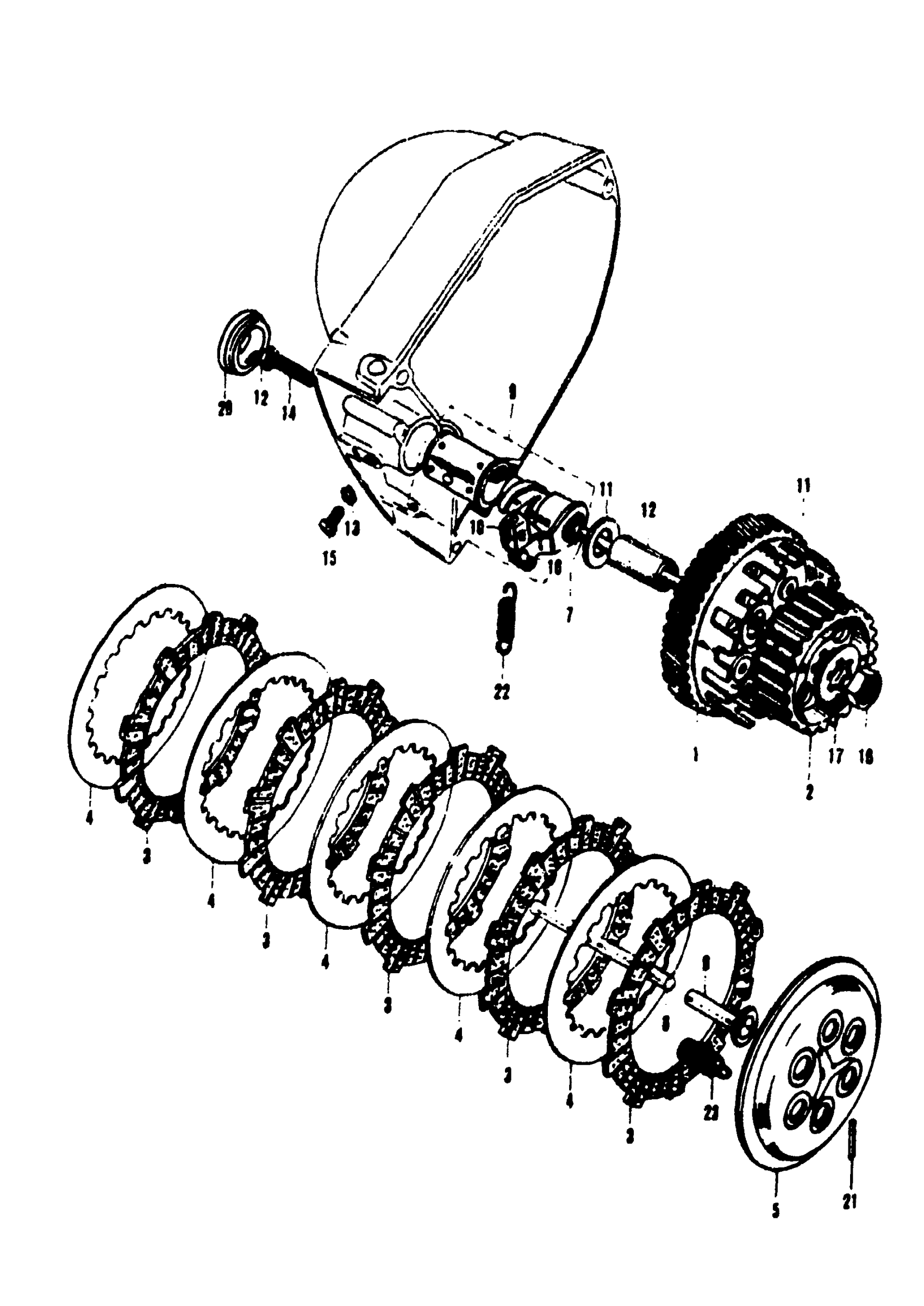

Suzuki S32-2 (1968) CLUTCH Diagram
#
Description
Price
1
CLUTCH HOUSING ASS'Y | N.T. 59
21200-09205
Unavailable
2
CLUTCH SLEEVE HUB
21411-09204
Unavailable
3
CLUTCH CORK PLATE
21441-09204
Unavailable
4
CLUTCH STEEL PLATE
21451-08000
Unavailable
5
CLUTCH PRESSURE PLATE
21460-08000
Unavailable
6
CLUTCH INNER PUSH ROD | O.D.=6(0.24) L=128(5.04)
23111-09004
Unavailable
7
CLUTCH PUSH ROD | O.D.=6(0.24) L=116(4.57)
23111-09200
Unavailable
8
CLUTCH RELEASE ROD
23121-09210
Unavailable
9
CLUTCH RELEASE SCREW ASS'Y
23200-09030
Unavailable
10
CLUTCH RELEASE SCREW ARM HOOK
23221-01000
Unavailable
11
CLUTCH HOUSING THRUST WASHER | O.D.=34(1.34) I.D.=20(0.79) T=2.0(0.08)
08211-20343
Unavailable
15
CLUTCH RELEASE SCREW GUIDE BOL
09135-06003
Unavailable
15
T
09135-08003
Unavailable
17
LOCK WASHER | O.D.=38(1.49) I.D.=16.5(0.55) T=0.8(0.03) This part replaces 09167-20006.
09167-20009
$2.03
18
CLUTCH HOUSING SPACER | O.D.=25(0.99) I.D.=20(0.79) L=36(.5(1.04)
09180-20014
Unavailable
19
CLUTCH RELEASE SCREW ARM HOOK
09209-04004
Unavailable
23
CLUTCH SPRING
09443-12002
Unavailable
