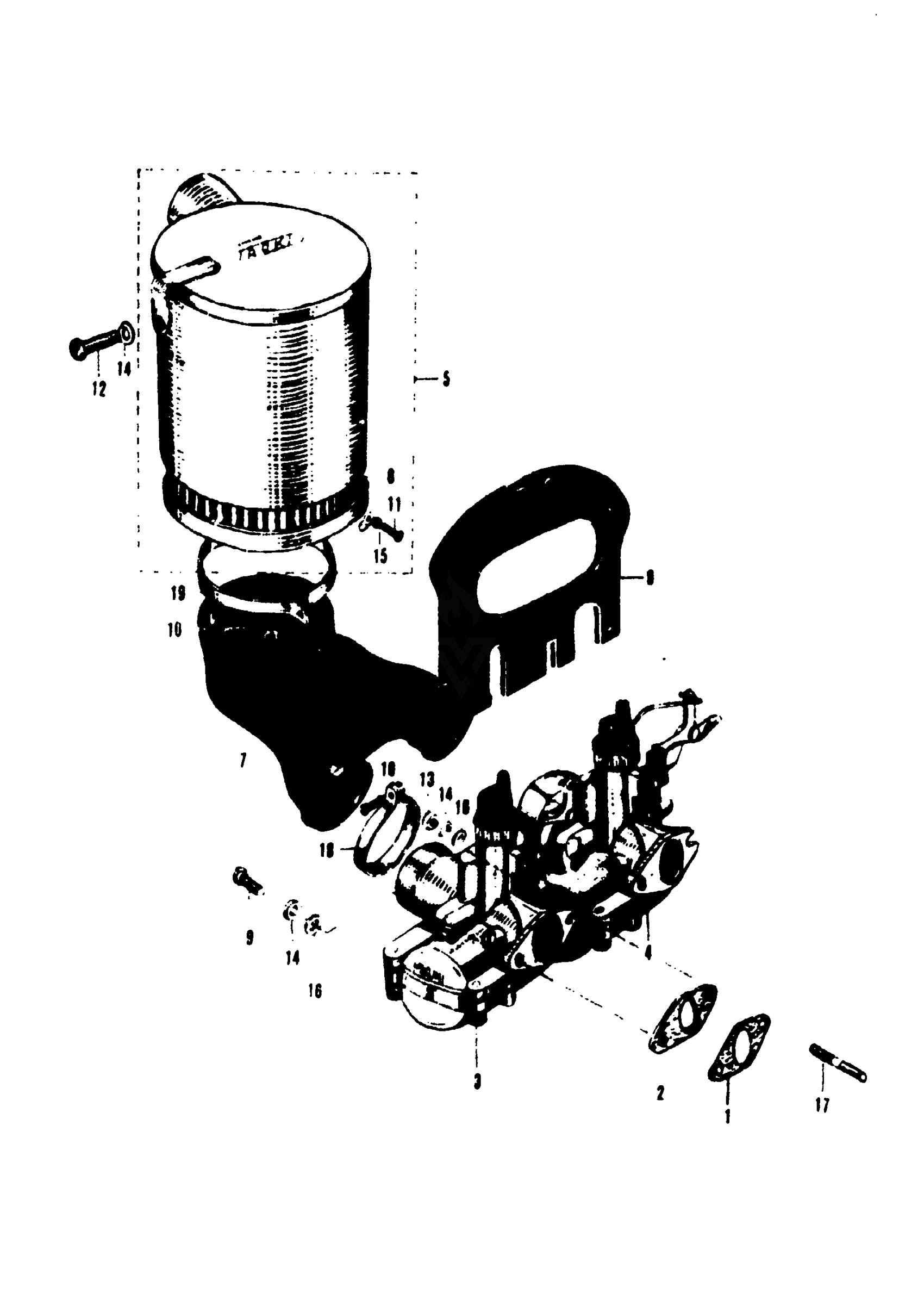

Suzuki S32-2 (1968) AIR CLEANER CARBURELOR Diagram

#

Description
Price

1

CARBURETOR GASKET

13125-09204

Unavailable

2

CARBURETOR INSULATOR GASKET

13129-09204

Unavailable

3

RIGHT CARBURETOR ASS'Y

13201-09214

Unavailable

4

LEFT CARBURETOR ASS'Y

13202-09214

Unavailable

5

AIR CLEANER ASS'Y | ISO

13700-08011

Unavailable

6

AIR CLEANER ELEMENT

13780-08010

Unavailable

7

AIR CLEANER TUBE

13881-09204

Unavailable

8

FRAME DUST SEAL

13891-09204

Unavailable

9

HEXAGON BOLT

01111-06258

Unavailable

10

SCREW | ISO This part replaces 02111-04208.

02112-0420A

$1.49

10

CROSS HEAD SCREW

02111-04201

Unavailable

11

CROSS HEAD SCREW | ISO

02111-05088

Unavailable

11

CROSS HEAD SCREW

02111-05081

Unavailable

12

CROSS HEAD SCREW

02111-06088

Unavailable

13

.NUT This part replaces 08311-11068.

08310-00067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 08322-21058.

08322-01057

$2.13

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

STUD BOLT

09108-06002

$2.23

18

CLAMP | ISO This part replaces 09402-00107.

09402-44208

$5.80

19

CLAMP | ISOISO This part replaces 09402-00123.

09402-70306-XC0

$5.55
