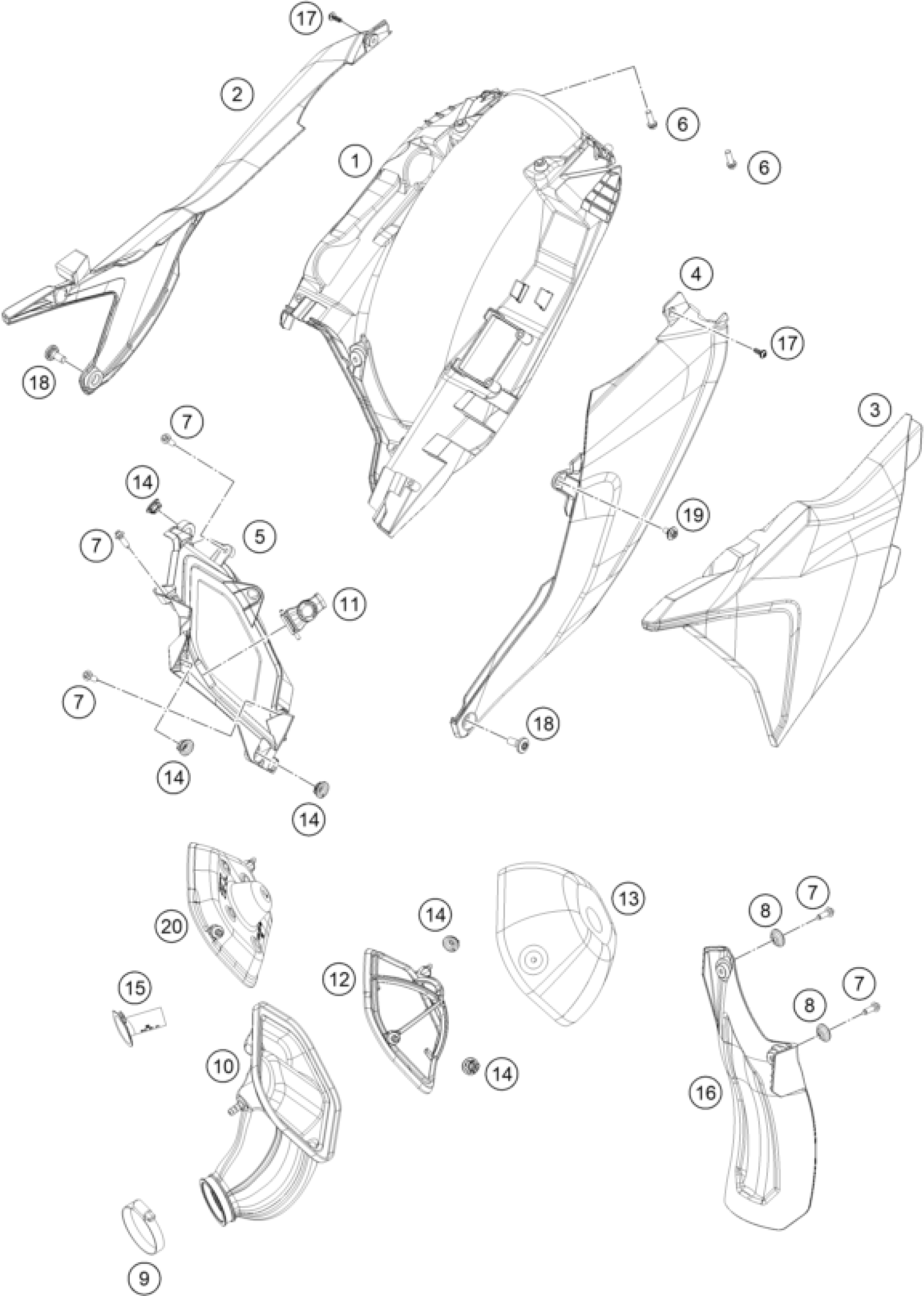

KTM 150 EXC 2025 AIR FILTER Diagram

#

Description
Price

1

Air filter box, bottom part XC

A46006101000EB

$44.12

2

Air filter panel

A46006004000EB

$29.74

3

Air filter cover

A46006003000EB

$29.74

4

Side fairing

A46006005000EB

$29.74

5

Air filter box front part

A46006001010EB

$16.99

6

HH collar screw M6x20 TX30

0025060206

$3.08

7

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

8

Chain slider bushing

77304066150

$1.49

9

HOSE CLAMP 45-65MM

78006027000

$5.23

10

Air boot

A45006026000

$57.96

11

Air filter holding bracket

A46006017000

$9.34

12

Air filter support

A42006016000

$11.59

13

Air filter

A46006015000

$31.27

14

quick release rubber grommet

47106003160

$4.11

15

Air restrictor

A43006012050

Unavailable

16

Splash protection

A46004050000

$11.64

17

EJOT PT screw K50x14

0081050141

$1.49

18

Special screw M8X18 TORX45 SL

79003003000

$3.08

19

special screw M6x12x3

83008000012

$3.08

20

Air restrictor

A45006012050

Unavailable
