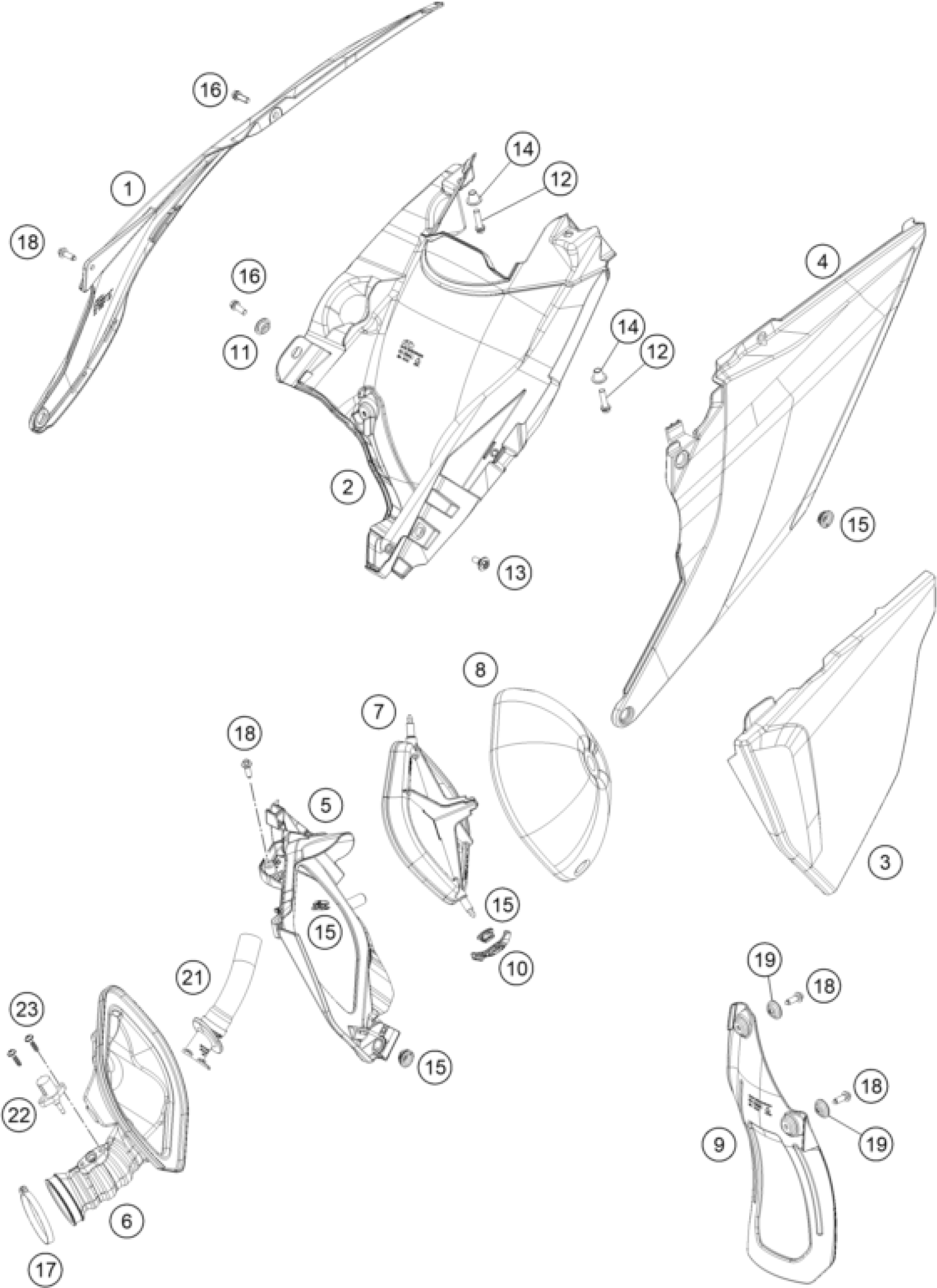

KTM 150 EXC 2023 AIR FILTER Diagram

#

Description
Price

1

Air filter panel

79106004000EB

$48.44

2

Air filter box

79106001000C1

$25.80

3

Air filter box cover, left

79106003000EBC

$70.02

4

Air filter box lid, left

79106005000EBC

$75.07

5

air cleaner box front

79106001010C1

$18.04

6

Intake connection boot

51706026000

$62.36

7

AIR FILTER SUPPORT

50406016000

$18.60

8

AIR FILTER

79006015000

$32.12

9

SPLASH GUARD

79006010000

$15.79

10

FILTER MOUNTING BRACKET

79006017000

$2.05

11

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

12

HH collar screw M6x25 TX30

0025060256

$3.08

13

SPECIAL SCREW M6X15X3

83008000015

$3.08

14

Subframe bush

79103002020

$2.05

15

quick release rubber grommet

47106003160

$4.11

16

HH collar screw M6x16 TX30

0025060166

$3.08

17

HOSE CLAMP 45-65MM

78006027000

$5.23

18

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

19

Chain slider bushing

77304066150

$1.49

21

Air quantity restrictor cmpl.

51706026050

Unavailable

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

23

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05
