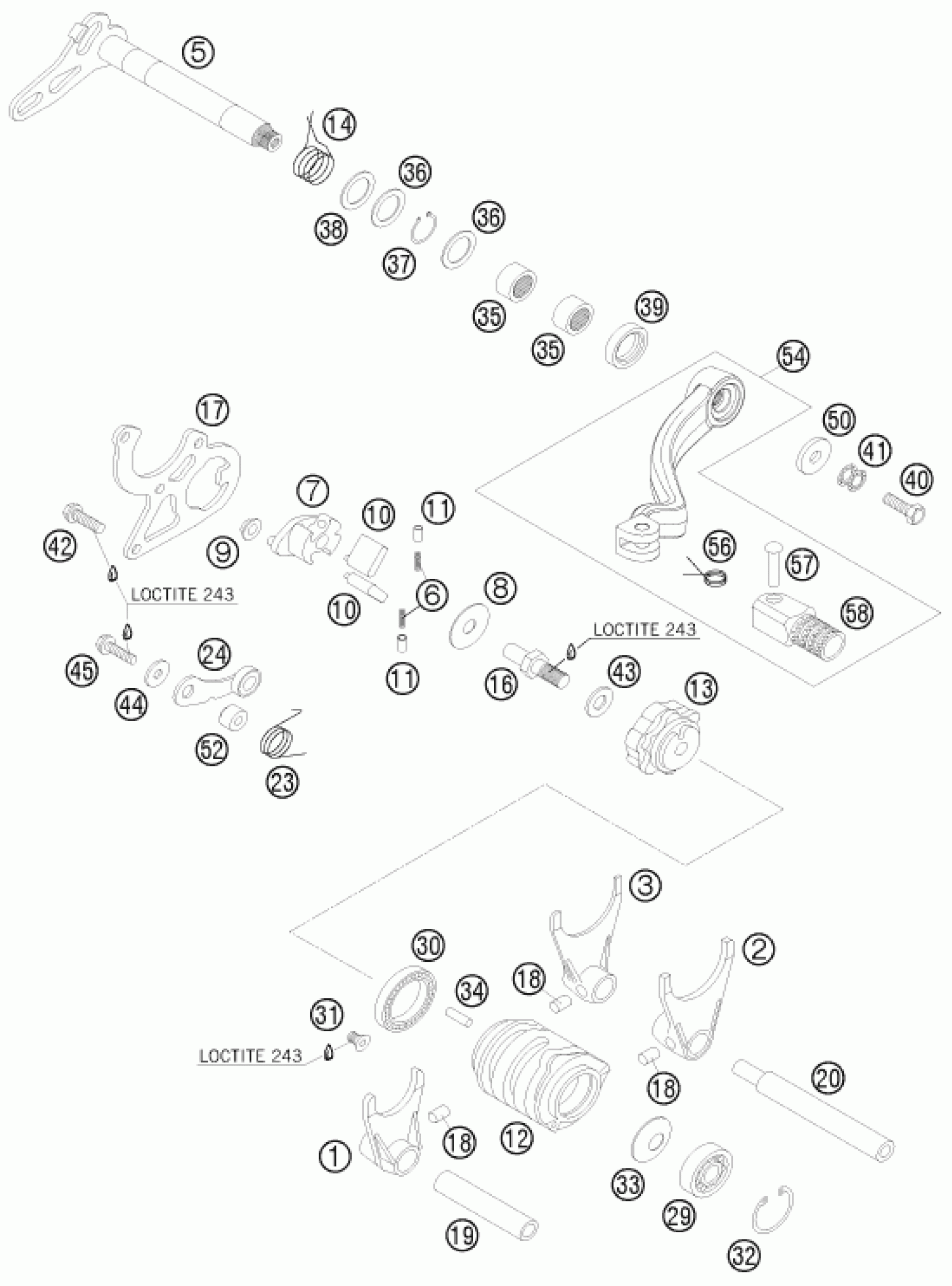

KTM 144 SX <2008> SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFTING FORK 5TH/6TH GEAR

50334001200

$54.69

2

SHIFTING FORK 2ND/4TH GEAR

50334002200

$57.59

3

SHIFTING FORK 1ST/3RD GEAR

50334003200

$54.88

5

SHIFTING SHAFT 125/200'98

50334005000

$67.53

6

Spring for ratchet 0.5X11.5

50334007052

$3.08

7

RATCHET SUPPORT 125/200'98

50334007000

$79.47

8

STOP DISK 8,2X26X0,7

50334007054

$4.11

9

BUSHING 6X8X12X4,5

50334007053

$6.72

24

LOCATING LEVER CPL. 08

50334024144

$14.58

29

BALL BEARING 6000 RS1 C3

0625060006

$20.94

30

BALL BEARING 61805 C3

0625618050

$43.94

31

Flat head screw DIN7991 M5X10

0991050102

$2.05

32

LOCK RING DIN0472-26X1,2

0472260120

$2.05

33

SPRING WASHER 12,2X25X0,9

0093251209

$3.08

34

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

35

needle sleeve HK 1412 14x20x12

54632095000

$7.00

36

STOP DISK 14,3X20X1

49033031000

$5.23

37

retaining ring DIN 471 14x1

0471140100

$1.49

38

STOP DISK 14,2X22X1,5

49033031015

$2.05

39

radial shaft seal 14x24x6 B

0760142460

$9.25

40

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05

41

Pair of washers M6 NORDLOCK

50233041000

$4.11

42

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

43

washer DIN 125 A -8.4

0125080003

$1.49

44

WASHER DIN7349-5X15X2

0349000050

$1.49

45

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

50

STEEL WASHER 6,4X17X3

50232050001

$5.23

52

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

54

SHIFT LEVER CPL. 2-STROKE 2001

54734031000

$79.09

56

SHIFTING LEVER SPRING 250

54634032100

$3.08

57

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

58

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59

19

SHIFTING ROD DRIVE 11,8X67,5

50334019000

$9.62

20

SHIFT. ROD DRIVE END 11,8X94,5

50334020000

$26.45

10

SHIFTING RATCHET 125/200'98

50334007050

$10.00

11

PRESSURE END PAD 4,1X5,6X8,4

50334007051

$14.58

12

SHIFTING DRUM 06

50334012300

$112.47

13

LOCATING DRUM 125/200'98

50334013000

$84.98

14

RETURN SPRING 3MM

50334014000

$6.35

16

SPECIAL SCREW M8X21,5 WS=12

50334016000

$10.65

17

SHIFTING GATE 3MM 125/200'98

50334017000

$23.46

18

NEEDLE ROLLER ZRB 6X10

0402061000

$6.35

23

LOCATING LEVER SPRING 2,5MM'98

50334023000

$4.11
