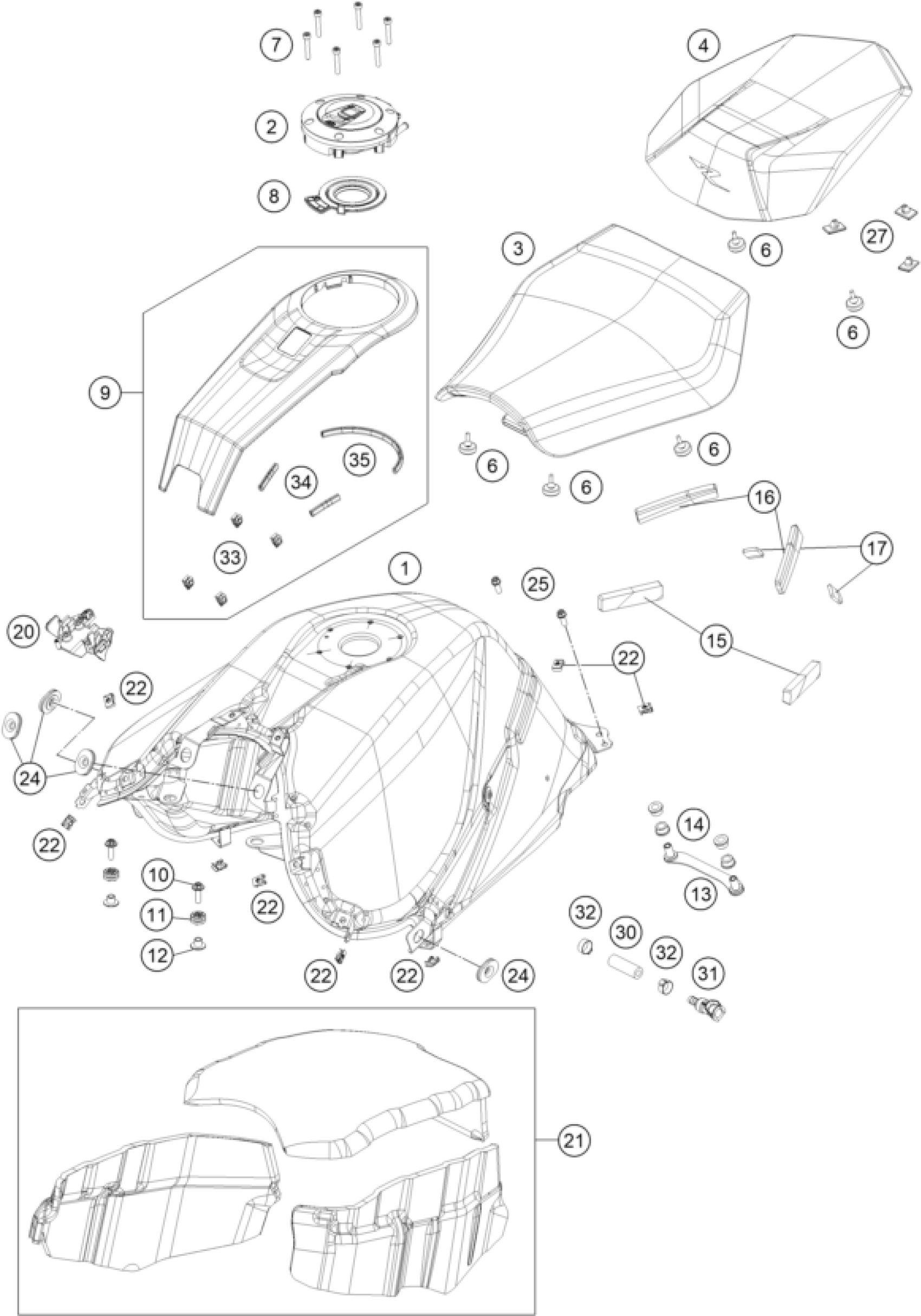

KTM 1390 SUPER DUKE R, orange 2025 TANK, SEAT Diagram

#

Description

Price

1

Fuel tank

A62407013000EBA

$2,450.44

2

Fuel tank cap

61907008100

Unavailable

3

Rider's seat

61707040000C1A

$159.78

4

Passenger seat

A62407047000C1A

$140.05

6

Distance rupper airbox 03

60006001021

$2.05

7

Screw ISO 14579-M5x30-8.8-P3R

014579050301

$1.49

8

Fuel tank cap gasket

61907008110

$18.22

9

Fuel tank fairing cmpl.

A62407058033

Unavailable

10

HH collar screw M6x20 TX30

0024060206

$3.08

11

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

12

Collar bushing 6,5x9x18x8.5

61342041100

$1.49

13

Rear fuel tank mounting

61707013010C1

$36.27

14

Rubber bushing 9X17X8.5

75608006000

$4.11

15

Cellular rubber 20x80x10

0660002008000

Unavailable

16

Cellular rubber 20x100x4

0660002010000

Unavailable

17

METAMOLL F. TAIL LIGHT COVER

61408015030

$1.49

20

Bracket LF antenna

A62411168010

$5.13

21

silencer packing SD-R 24

A62406095000

$148.10

22

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

24

GROMMET

90108060003

$1.49

25

HH collar screw M6x16 TX30

0025060166

$3.08

27

Isolation pad

77307040041

$2.05

30

Fuel hose pump

A62407017050

$50.95

31

Clutch CPC PLCD17005, black

5850701050030

$55.90

32

Variable one-ear clamp 15.7mm

00050157706

$5.23

33

Bracket for side fairing

61908040030

$1.69

34

Edge protection 8x5,5x40

A62407075040

Unavailable

35

Edge protection 8x5,5x160

A62407075160

Unavailable
