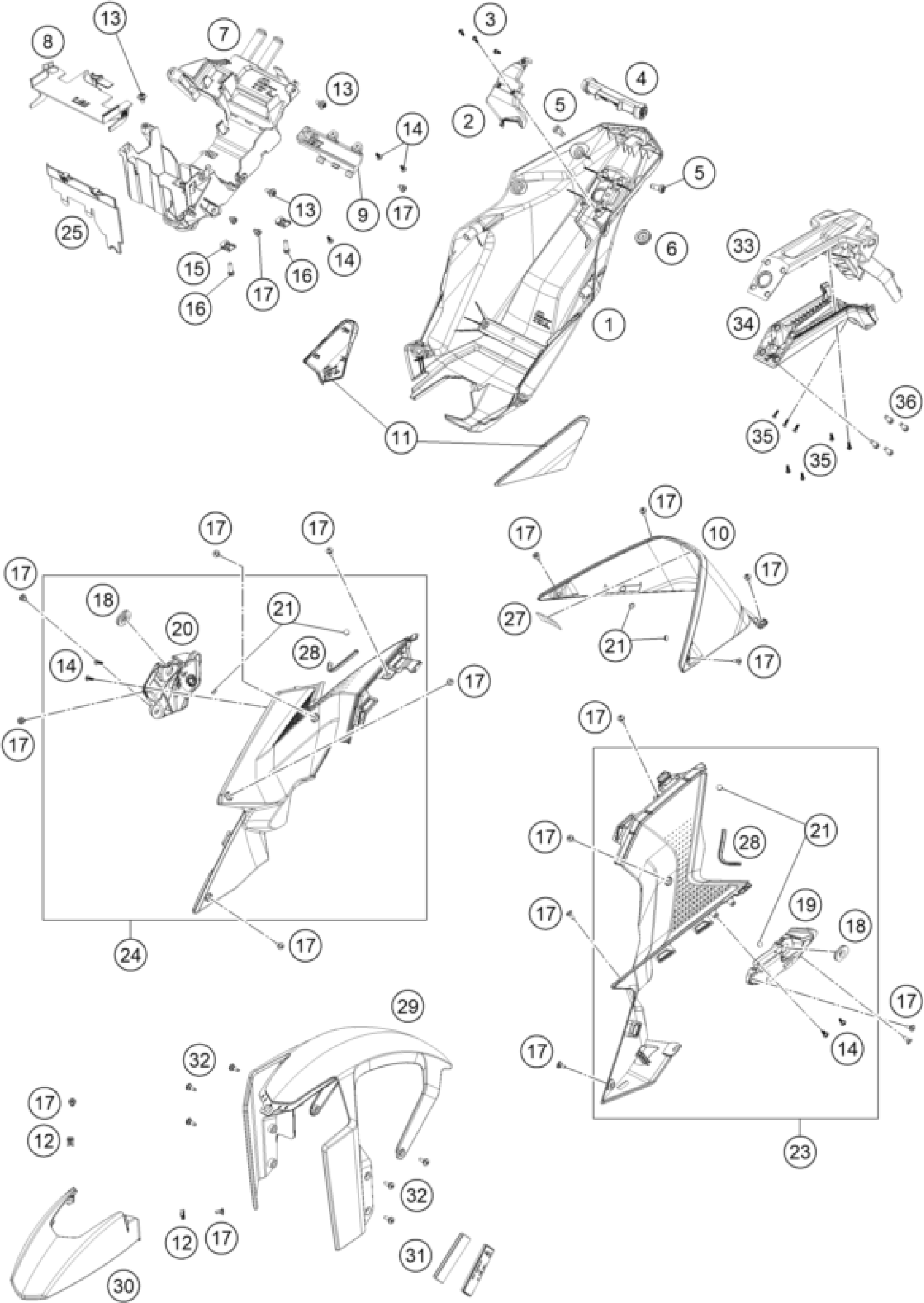

KTM 1390 SUPER DUKE R, orange 2024 MASK, FENDERS Diagram

#

Description

Price

1

Tail end lower part

A62408019000

Unavailable

3

EJOT Delta PT K40x12

0081040121

Unavailable

4

Cross-connector

61708019050

Unavailable

5

SHCS M8x20 TX45

0035080206S

Unavailable

6

Rubber grommet, standby gas se

60006001023

Unavailable

7

Electrics carrier cpl.

A62411054033

Unavailable

9

Electrical carriers cover

A62411054010

Unavailable

11

Side Cover Set SD-R 20

61708044000

Unavailable

12

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

13

special screw M6x12x3

83008000012

Unavailable

15

clip nut M6

54603048100

Unavailable

16

HH collar screw M6x20 TX30

0025060206

Unavailable

29

Fender rear part

61708011000

Unavailable

30

Fender front part

61708010000ED

Unavailable

31

SIDE REFLECTOR YELLOW "CEV"

60012080100

Unavailable

32

special screw M5x17

69008021060

Unavailable

8

Battery compartment preass.

61711055100

Unavailable

14

EJOT PT screw K50x12

0081050121

Unavailable

25

Battery compartment cover

A62411054060

Unavailable

33

License plate holder support,

A60708015010

Unavailable

34

License plate holder support,

A60708015020

Unavailable

35

EJOT Delta PT K40x12

0081040121

Unavailable

36

HH collar screw M6x16 TX30

0025060166

Unavailable

17

special screw M5x12

69008021160

Unavailable

18

GROMMET

90108060003

Unavailable

19

Tank pad left

A62407011010

Unavailable

20

Tank pad right

A62407011020

Unavailable

21

Elastic buffer self-adhesive

0660003301000

Unavailable

24

Inner cover right preass.

A62408027033

Unavailable

23

Inner cover left preass.

A62408026033

Unavailable

10

Rear fuel tank fairing

A62408049000EB

Unavailable

27

dual lock 25,4mm

61707015001

Unavailable

28

Edge protection 8x5.5x95

A62407075095

Unavailable

2

Cable bracket tail end lower p

A62408019010

Unavailable
