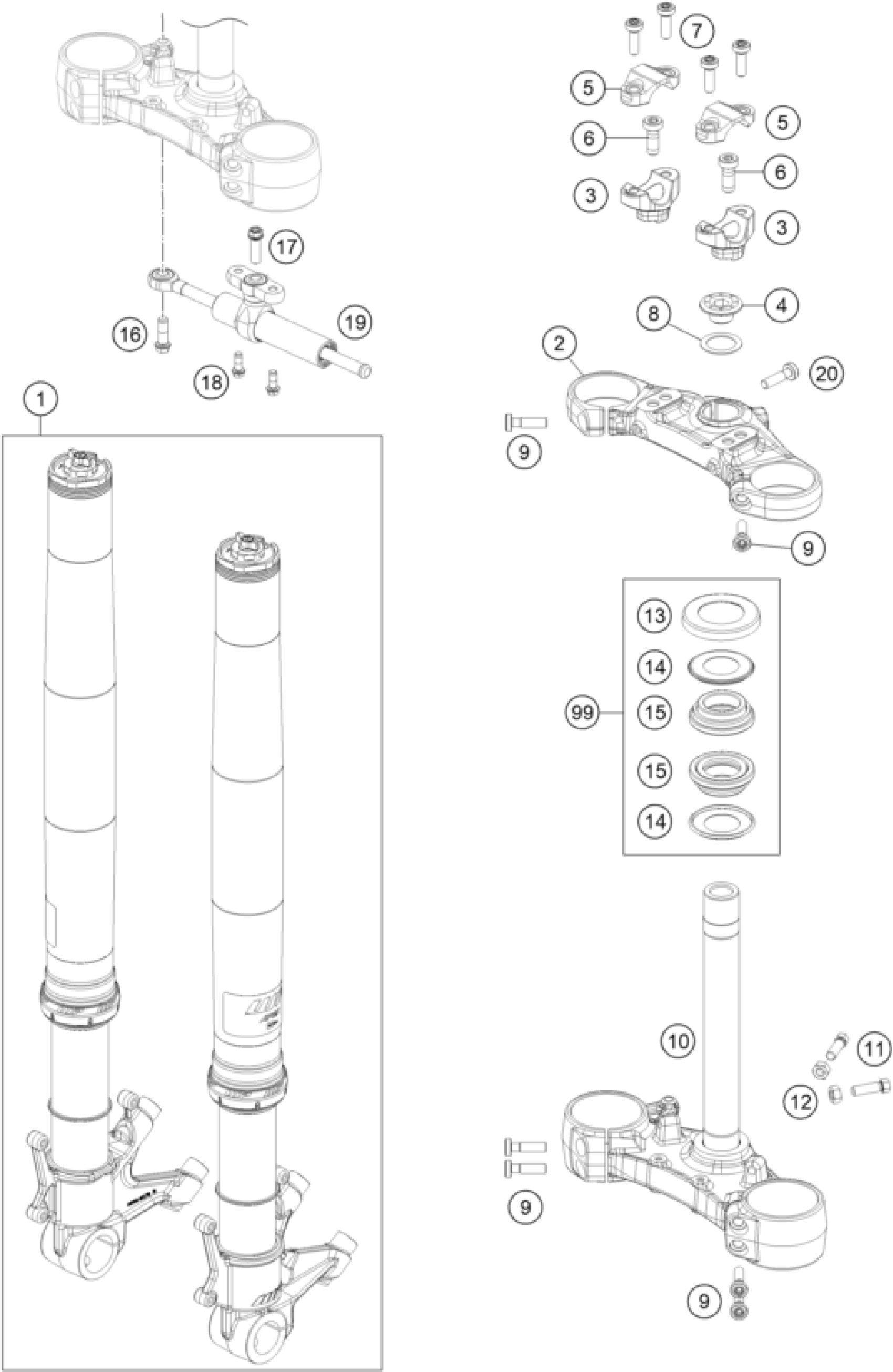

KTM 1390 SUPER DUKE R, black, Display 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Fork KTM 1290 SuperDuke R 24

A624C122X401000

Unavailable

2

Top triple clamp X=32 mm

A6240193413204A

Unavailable

3

Handlebar mount h=32

61701039032C1

$45.99

4

Steering head screw M20x1,5 WS

61701036000C1

$22.90

5

Handlebar clamp

6160103800030S

$34.31

6

AH collar screw M10x25 ISA45

0032100256S

$4.11

7

AH collar screw M8x25 ISA45

0035080256

$4.11

8

Shim ring DIN0988-25X35X1

0988253510

$2.05

9

AH collar screw M8x30 ISA45

0035080306

$3.08

10

Factory btm. triple clamp cmpl

6170193213204A

Unavailable

11

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

12

Hexagon nut DIN934 M8

0934080003

$2.05

13

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

14

Stearing head gasket

69001084100

$5.23

15

STEERINGHEAD KPL.17

69001181000

$37.77

16

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

17

HH collar screw M8x25

0025080256

$2.05

18

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

19

Steering damper Superduke R 20

16181T56E

$304.33

20

AH collar screw M8x30 ISA45

0035080306S

$3.08

99

Stearing head rep. Kit

69001181010

$91.81
