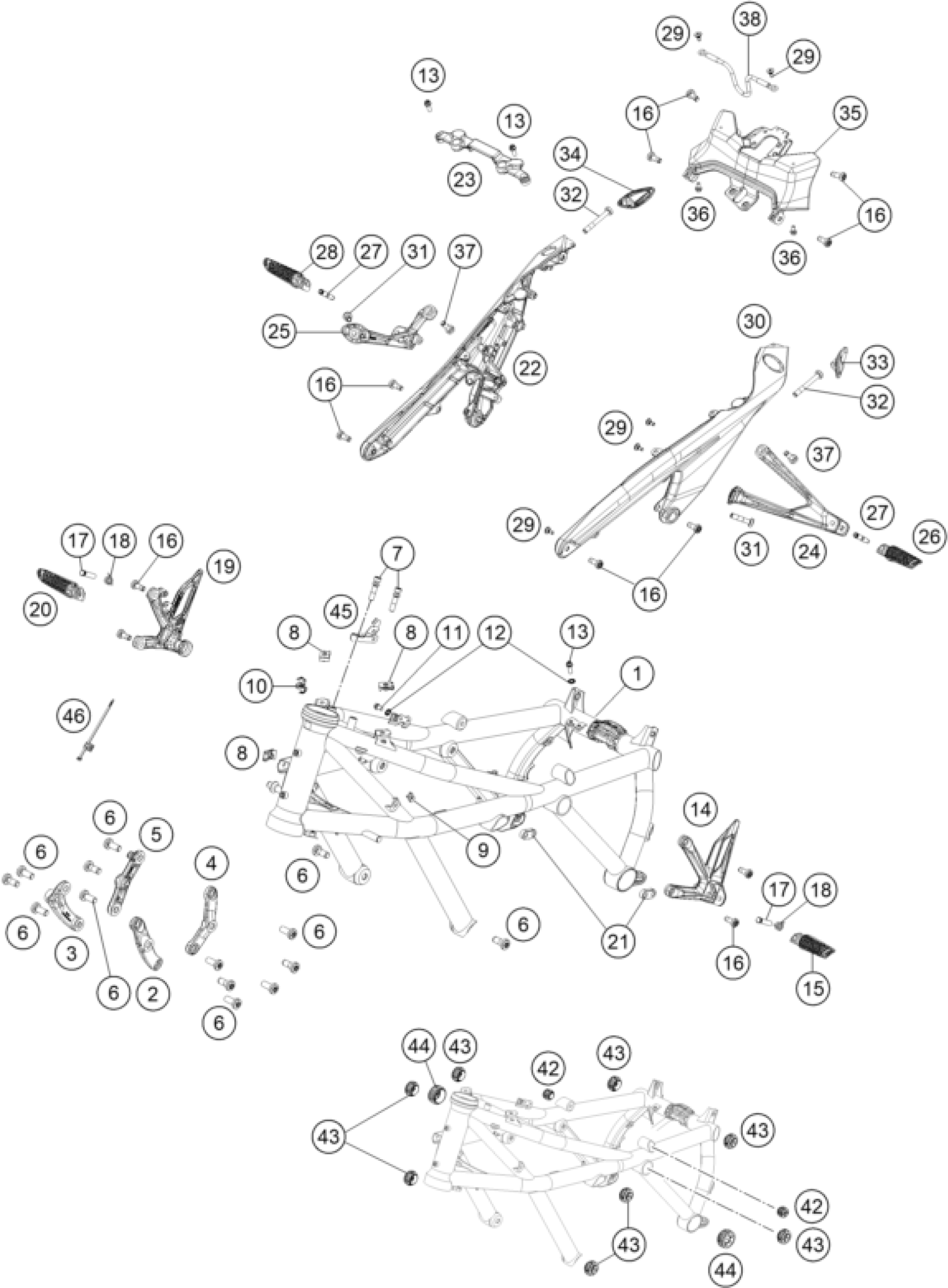

KTM 1390 SUPER DUKE R, black 2025 FRAME Diagram

#

Description

Price

1

Frame A624

A62403001100EB

Unavailable

2

Engine brace, front, left

A62403005000C1

$45.34

3

Engine brace, front, right

A62403006000C1

$45.34

4

Engine brace, rear, left

A62403007000C1

$40.10

5

Engine brace, rear, right

A62403008000C1

$41.41

6

HH collar screw M10x24 ISA45 S

0035100249S

$2.05

7

Special screw for ignition loc

0900000802801

$7.94

8

clip nut M6

54603048100

$4.11

9

clip nut M5

69008021080

$3.08

10

Support ABS-pipe d7.5

61342046000

$11.68

11

HH collar screw M6x10 TX30

0025060106

$3.08

12

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

13

HH collar screw M6x16 TX30

0025060166

$3.08

14

Front footpeg bracket left

61703038000C1

$114.06

15

Front footpeg left

61703040000C1

$55.25

16

SHCS M8x20 TX45

0035080206S

$5.32

17

Footpeg bolt

61703043000

$15.14

18

Spring footrest front

61703042000

$2.05

19

Front footpeg bracket right

61703039000C1

$131.17

20

Front footpeg right

61703041000C1

$55.25

21

Footrest bottom fixing nut

61703045010

$24.86

22

Subframe right black

61703002020C1

$422.05

23

Fuel tank bridge

61703002030C1

$72.83

24

Rear footpeg bracket left

61703048000C1

$295.73

25

Rear footpeg bracket right

61703049000C1

$295.73

26

Rear footpeg left cmpl.

61703050033C1

$68.06

27

Rear foot peg bolt

61703053000

$26.55

28

Rear footpeg right cmpl.

61703051033C1

$67.97

29

Screw, reservoir

69013099150

$2.05

30

Subframe left black

61703002010C1

$422.05

31

ISA collar screw, M8x35, MK-IS

0000350803500S

$2.05

32

Hex screw w.intern.Torx w.coll

0035080606S

$4.11

33

Mounting flange top left black

61703002054C1

$32.81

34

Mounting flange top right blac

61703002055C1

$32.72

35

Cross brace, rear part

A62403002040C1

$179.89

36

HH collar screw M5x10 TX30

0025050106

$1.49

37

ISA collar screw M8x25 ISA45

0035080256S

$2.05

38

Tether, passenger

61707048170

$30.57

42

Plug small

61703288000

$2.80

43

Plug, small

61703188000

$2.80

44

Plug, large

61703088000

$3.73

45

Connector support ignition loc

A62411066010

$14.86

46

Cable tie with foot section

0330000520000

$5.23
