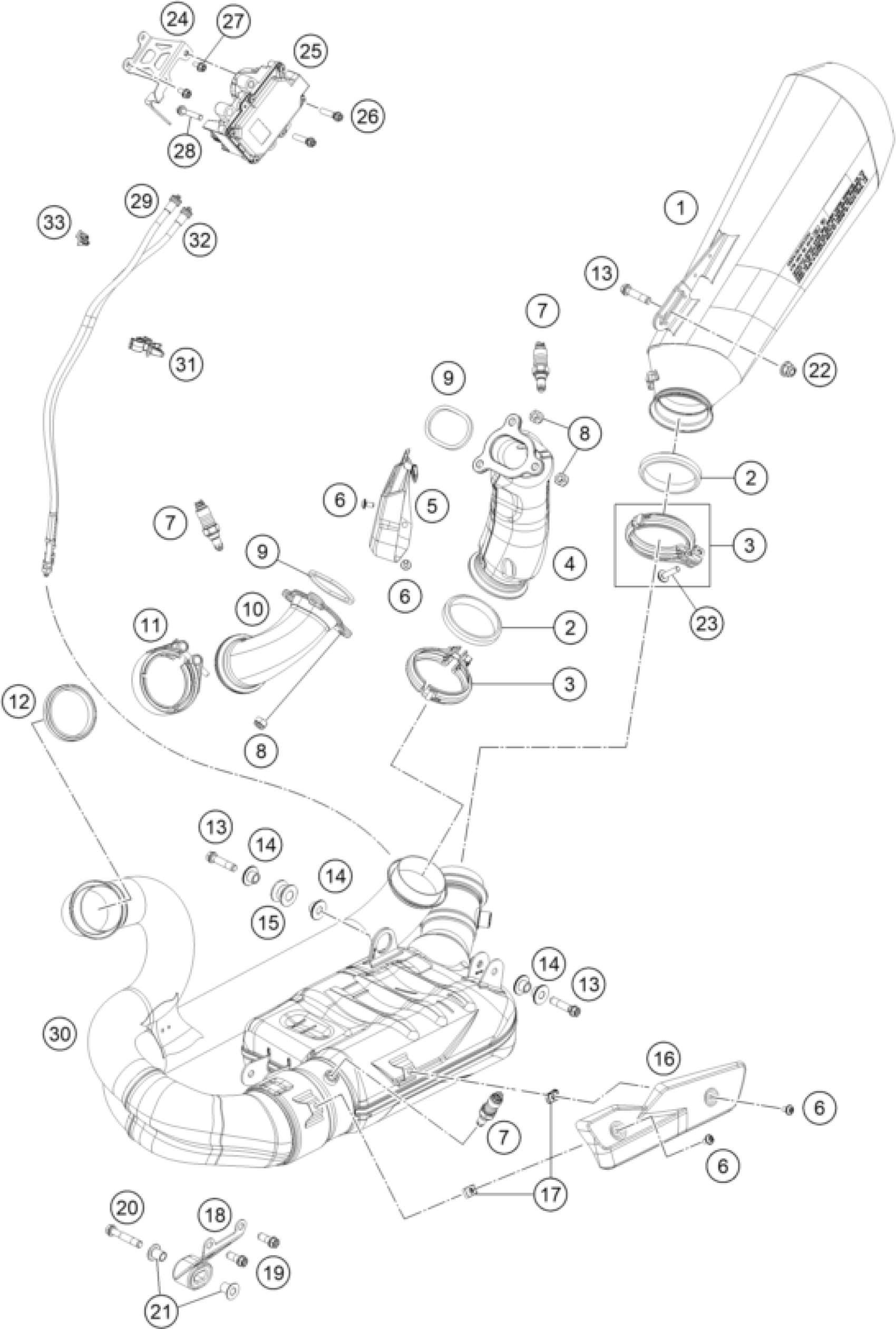

KTM 1390 SUPER DUKE R, black 2025 EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer

A62405083000

$934.99

2

Manifold gasket 60mm

61305105005

$11.02

3

Exhaust clamp, tube, 50mm

61305058200

$35.24

4

mainfold with integral insulat

61705008200

$338.27

5

Heat protection complete, blac

61705011100C1

$104.24

6

Torx screw M5x10 black

78105181010

$1.49

7

LAMBDA SENSOR

75041090200

$327.34

8

self-locking nut M8 Cu

51010086100

$3.08

9

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

10

Header front

61705007100

$196.15

11

V-clamp D=70.1

61705058200

$34.12

12

Header gasket 54 mm

61705005105

$33.93

13

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

14

Collar bushing 8.5x12.5x23.5x1

61705069000

$4.11

15

damp. component silicone grey

54305068100

$8.31

16

Front heat shield

61705012110C1

Unavailable

17

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

18

Pre muffler mounting 2 complet

61705055000

$66.75

19

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

20

HH COLLAR SCREW M8X45 ISA40

0025080456S

$3.08

21

BUSHING

60305069000

$2.05

22

STOP NUT DIN6926 M8 SS

0926080003

$1.49

23

HH collar screw M8x35 TX40

0025080356

$4.11

24

Retaining bracket actuator

61741070011C1

$48.61

25

Exhaust flap controll motor

61441070100

$295.36

26

HH collar screw M6x30 TX30

0025060306

$3.08

27

HH collar screw M5x10 TX30

0025050106

$1.49

28

HH collar screw M6x35 TX30

0025060356

$3.08

29

Bowden cable short

A62441065000

$61.70

30

Pre-Muffler

61705050200

$4,939.41

31

Plug clip

0340000950650

Unavailable

32

Bowden cable long

A62441066000

$63.38

33

Cable failure protection

61741070020

Unavailable
