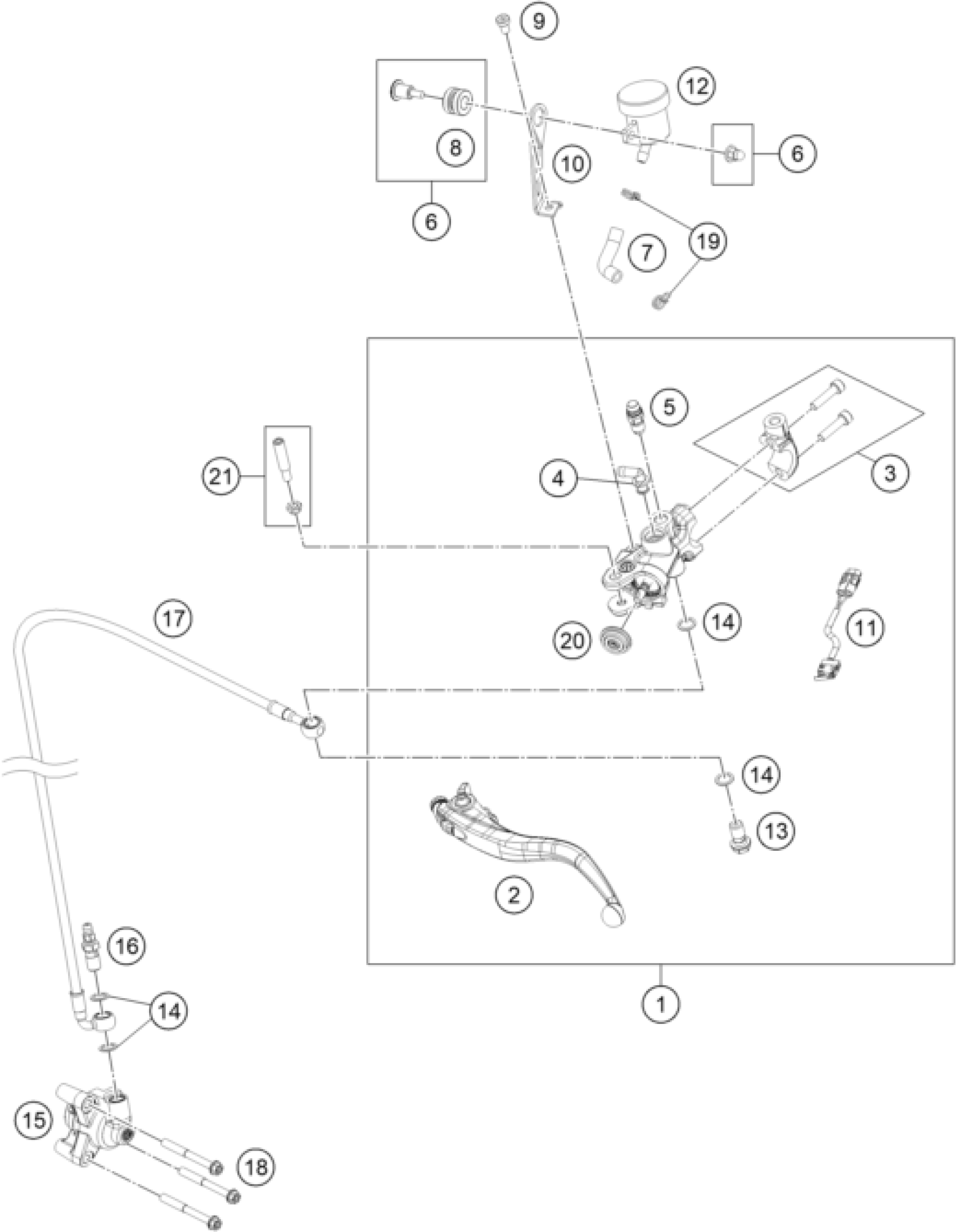

KTM 1390 SUPER DUKE R, black 2025 CLUTCH CONTROL Diagram

#

Description

Price

1

MASTER CYLINDER

A62402030100

Unavailable

2

clutch lever

A62402031000C1

Unavailable

3

Clamp

A62413005000

$57.49

4

ANGLE PIECE

54513155000

$14.58

5

Bleeder screw with cap

60513020000

Unavailable

6

mounting kit reservoir

61913028044

$20.00

7

Hose reservoir 6x1,5

57313072001

Unavailable

8

RUBBER BUSH 05

61013013000

$3.08

9

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

$1.49

10

Retaining bracket reservoir co

A62432060005

Unavailable

11

MICROSWITCH

A62411049000

Unavailable

12

Break Fluid Reservoir

A62402055000

Unavailable

13

banjo bolt

A62432060095

Unavailable

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

Clutch slave cylinder cmpl.

A68132061044

Unavailable

16

BLEEDER SCREW CPL. 05

62513020000

$27.48

17

CLUTCH PIPE

A62432063000

Unavailable

18

HH collar screw M6x55 TX30

0025060556

$3.08

19

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

20

RUBBER CUP

A62413008000

$12.24

21

LEVER SCREW CPL. 05

61013006000

$12.43
