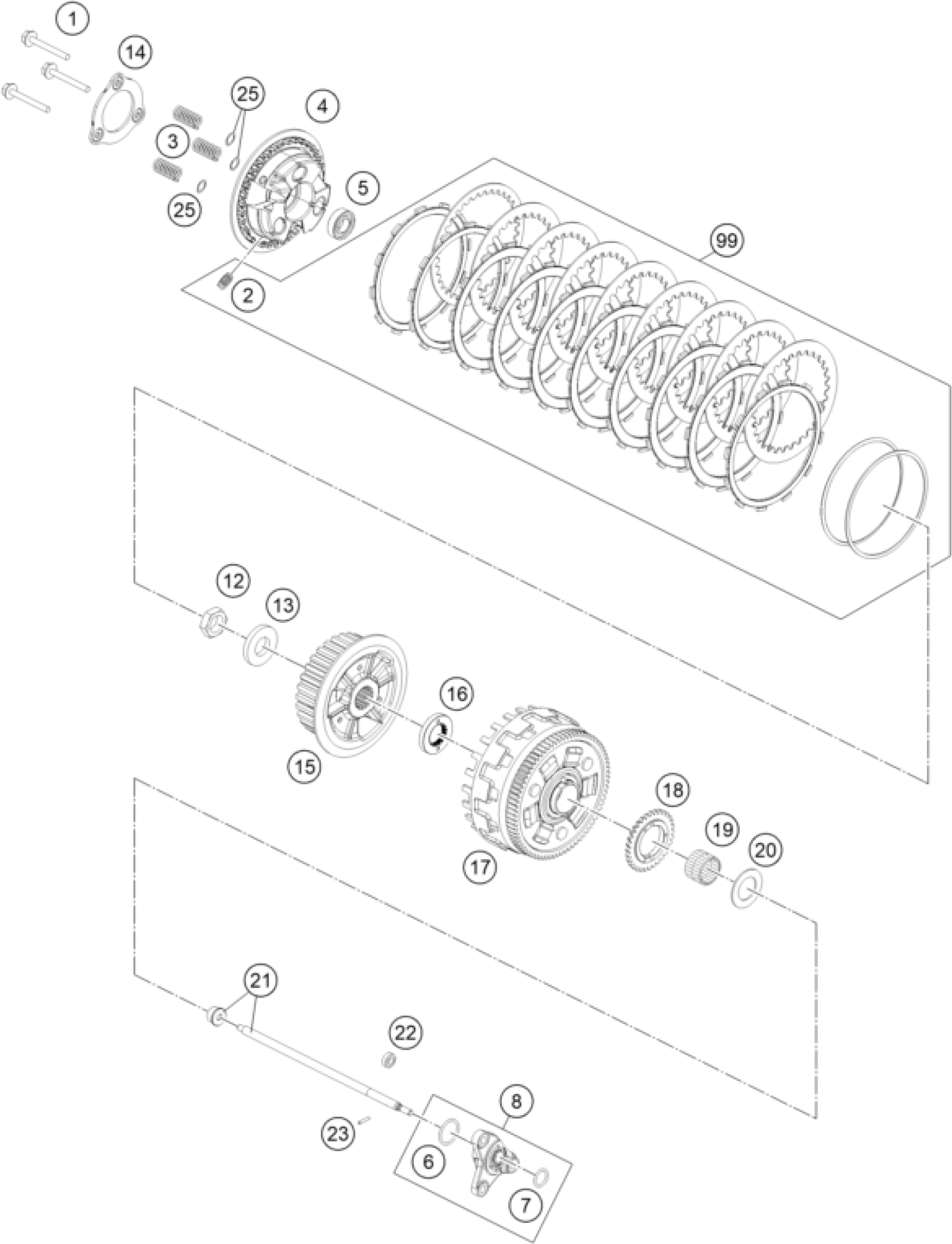

KTM 1390 SUPER DUKE R, black 2025 CLUTCH Diagram

#

Description

Price

1

HH collar screw M6X45 WS10

61332044000

$9.62

2

DAMPER

61332007000

$35.71

3

Clutch spring, orange

61432005000

$12.15

4

PRESSURE CAP

61332003000

$124.35

5

BALL BEARING 6003 C3

0625060033

$15.98

6

O-RING 20X2 VITON

0770020020

$4.11

7

O-Ring 13,0 x 2,0 Viton

0770001320000

Unavailable

12

hexagonal nut M22x1.5

0910002200800

$4.11

13

wedge lock washer M22

0252012303500

$5.70

14

ARRESTOR PRESSURE CAP

61332006000

$21.03

15

Center clutch

61332002100

$124.44

16

SECTION WASHER 03

60032021000

$33.93

17

CLUTCH CAGE CPL.

61332001044

$829.34

18

oil pump gear 32 teeth

60038001132

$27.85

19

Needle bushing HK 30X35X26

0618303526

$60.11

20

STOP DISK 30,2/50/2

60032020000

$7.85

21

Push rod assembly 117mm

61232154000

$26.83

22

SHAFT SEAL RING 9X18X06 B-NBR

0760091862

$5.23

23

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

25

SUPPORT CLUTCH SPRING

61332004000

$8.69

99

Clutch kit

A62432011010

Unavailable

8

Push rod guide cmpl.

T06232054033

Unavailable
