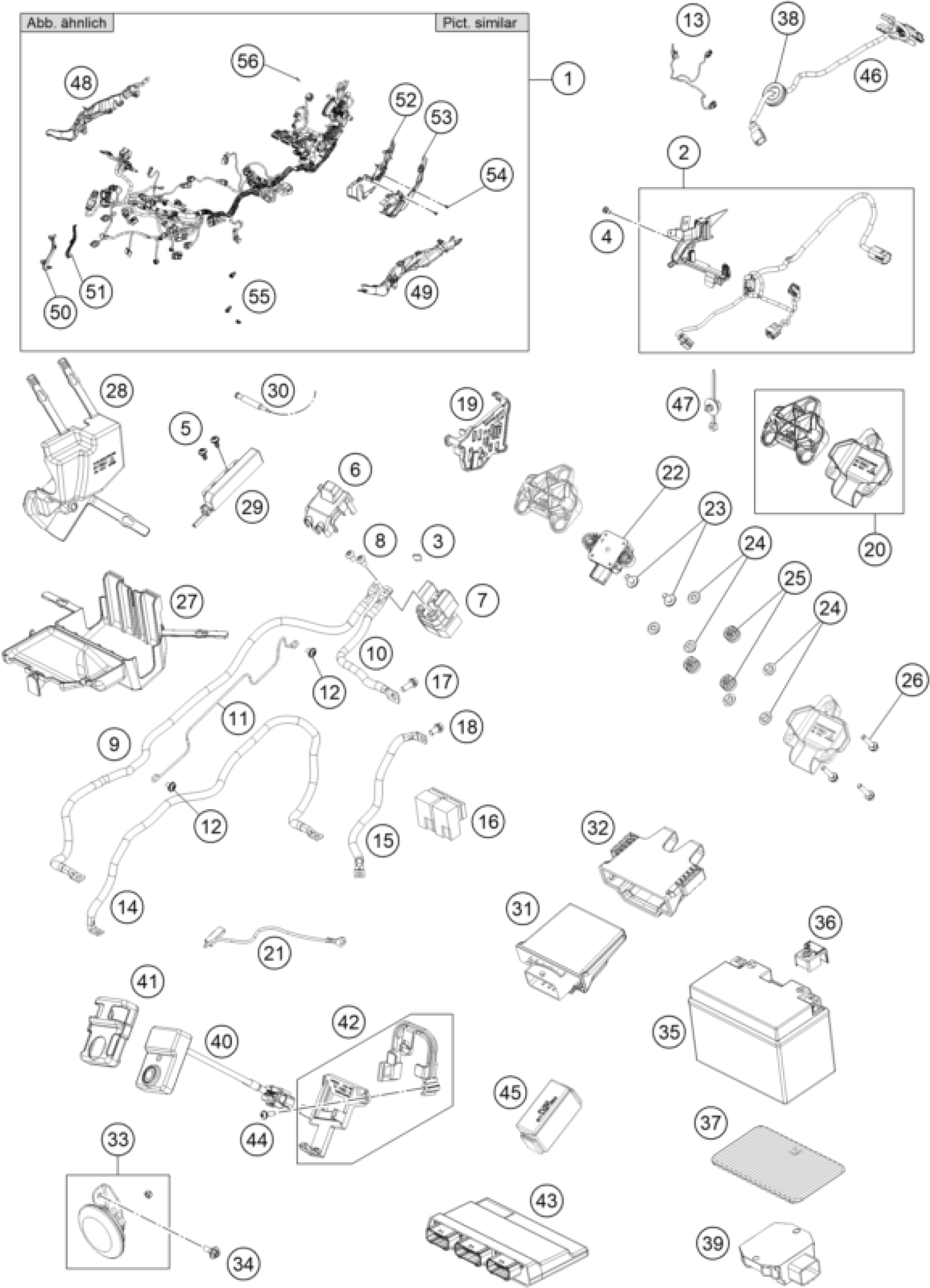

KTM 1390 SUPER DUKE R, black 2024 WIRING HARNESS Diagram

#

Description

Price

1

Main wiring harness

A62411175033

Unavailable

2

Main wiring harness

A62411085033

$41.69

3

Plug-in fuse, big 30A

58011109130

$2.05

4

special screw M5x12

69008021160

$4.11

5

EJOT PT screw K50x12

0081050121

$2.05

6

Cover flap, starter relay

64111058110

$3.08

7

Starter relay

76211058000

$79.19

8

Oval head screw ISK ISO7380 M6

0738060101

$1.49

9

Starter cable

61711059000

$22.62

10

Battery cable

61711059050

$18.22

11

Cable bracket

61711010010

$4.11

12

Oval head screw ISR M5x8-A2-07

073802050085

$1.49

13

Harness topfeeder

A62411086000

$32.62

14

Earth wire

61711097000

$22.06

15

Ground wire bat. Frame

61711098000

$14.48

16

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

17

HH collar screw M6x20 TX30

0025060206

$3.08

18

HH collar screw M6x12 TX30

0025060126

$3.08

19

Connector support frame

61711083050

$5.70

20

Coverage lean angle sensor SD-

61742190000

$31.22

22

Angle sensor

61542090000

$391.01

23

HH collar screw M6x13 TX30

0024060136

$3.08

24

Tachometer support bush

60714069050

$2.05

25

DAMP. COMPONENT SPEEDOMETER

61314069051

$5.32

26

HH collar screw M5x25 TX30

0025050256S

$1.49

27

Rubber plug box

A62411054050

$25.70

28

Rubber connector box

A62411003060

$23.18

29

Race on antenna

61911168000

$78.81

30

Temperatur sensor

61111018100

$31.59

31

BCU1.0 EXT

T03711033000

$834.67

32

Rubber band BCU

T03711033050

$9.81

33

Direct current horn complete

64111060033

$35.05

34

HH collar screw M6x15 TX30

0024060156

$3.08

35

BATTERY 12V/11AH 03

60011053000

$366.89

36

COVER POSITIVE POLE

62111059060

$4.11

37

RUBBER PLATE FOR BATTERY

61311053050

$10.84

39

VOLTAGE REGULATOR

60311034000

$177.55

40

Connectivity unit

79114086100

$491.72

41

Rubber support, CCU

79114086050

$7.47

42

Fixation-Set Connectivity Box

61711046030

$20.37

44

EJOT PT SCREW K50X16 1451

0081050161

$1.49

45

Fuse Box

61711087050

$15.98

46

Rear wiring harness cmpl.

A62411076033

$46.09

47

Plug-in cable tie for M5

61711094000

$14.58

48

CABLE CHANNEL

A62411047020

$11.77

49

Cover main wiring harness

A62411047010

$11.77

50

Front end cable duct

A62411047050

$7.56

51

Front end cable duct cover

A62411047060

$7.28

52

Main wiring duct rear

A62411047040

$10.84

53

cover main cable channel rear

A62411047030

$10.56

54

SCREW FOR PLASTIC K45X12 T20

0081045121

$1.49

55

Edge clip cable tie

0330000416000

$8.13

38

Gummitülle d 22.5/5/2

64106001025

$2.05

43

Control unit

A62441031000

$387.64

21

Ground wire tank

A62411197000

$6.44

56

Littelfuse 7,5A

75011088075

Unavailable

56

FUSE 10A 07

75011088010

$4.11

56

FUSE 15A 07

75011088015

$4.11

56

STECKSICHERUNG KLEIN 25A

75011088025

Unavailable
