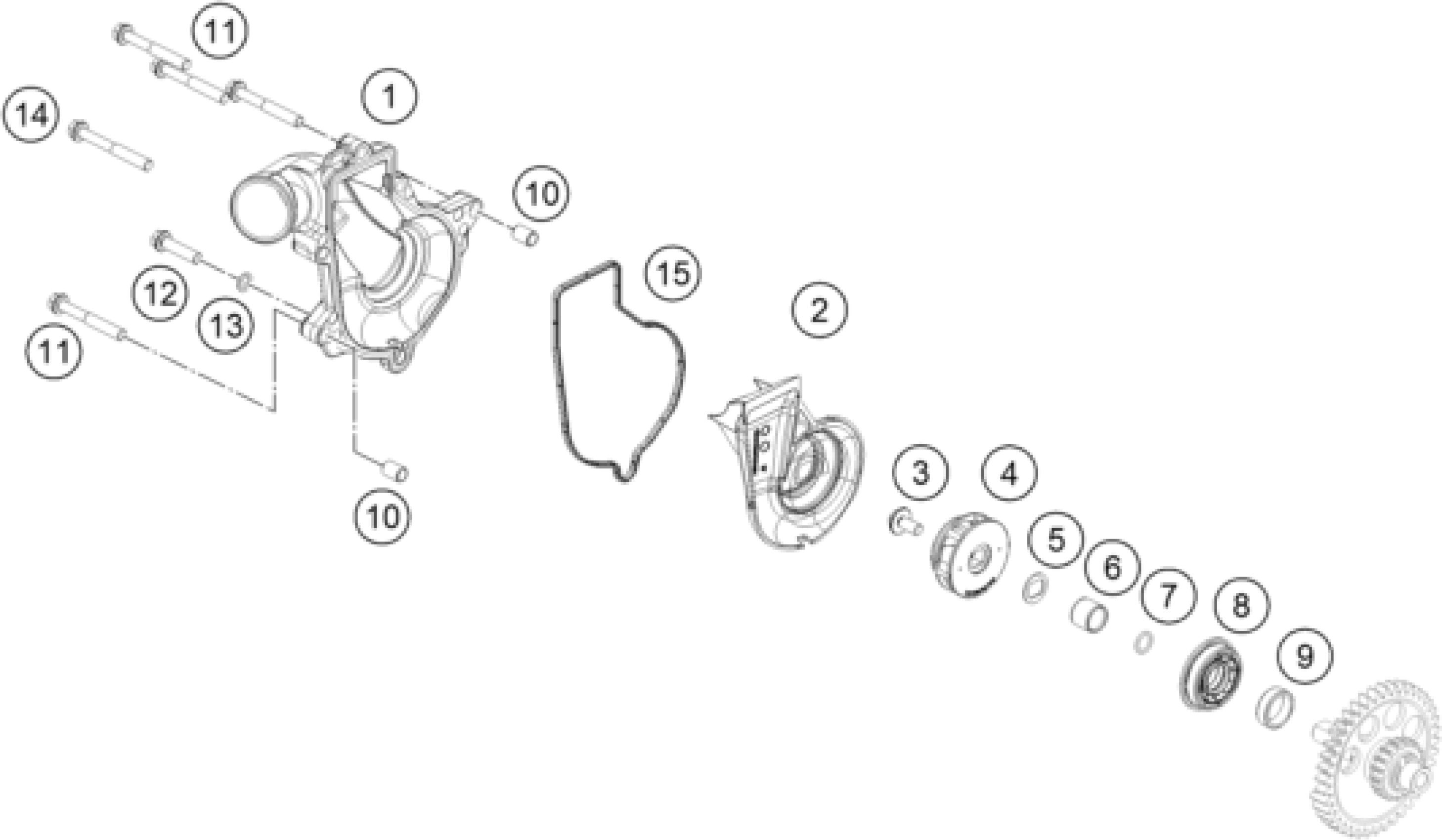

KTM 1390 SUPER DUKE R, black 2024 WATER PUMP Diagram

#

Description

Price

1

Waterpump cover

A60035052010C1

Unavailable

2

Waterpump cover insert

A60035052020

Unavailable

3

HH Collar screw M6x13 TX30 SL

0024060136S

Unavailable

4

water pump wheel cpl.

63535055000

Unavailable

5

double-d washer 16x1 SST

60035055150

Unavailable

6

Wear bushing 12/15/12,5

77236072120

Unavailable

7

O-RING 9X1,5 NBR

0770090015

Unavailable

8

radial shaft seal 34.5x15x9 Du

0760153459

Unavailable

9

SLIDE BEARING

61330157050

Unavailable

10

Dowel, 6x8x11.5

59030023100

Unavailable

11

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

13

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

14

HH collar screw M6x50 TX30

0025060506

Unavailable

15

Water pump cover gasket

A60035053000

Unavailable
