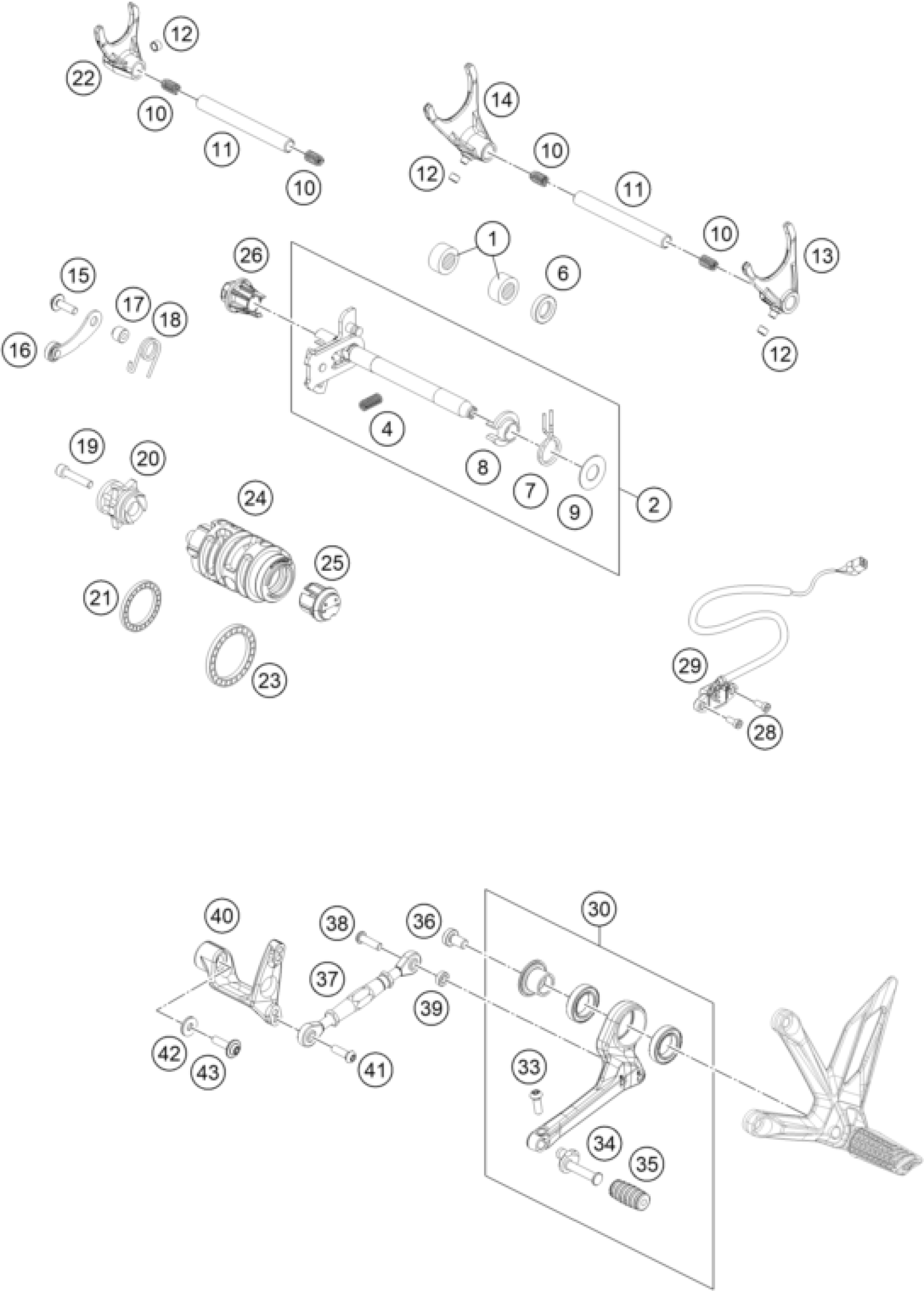

KTM 1390 SUPER DUKE R, black 2024 SHIFTING MECHANISM Diagram

#

Description

Price

1

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

2

SHIFT SHAFT CPL.

61434005044

Unavailable

4

TENSIONING SPRING 0,8MM

56534013100

Unavailable

6

radial shaft seal 14x24x6 B

0760142460

Unavailable

7

RETURN SPRING 2.3 MM

61434014000

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

STOP DISK 14X30X1

54634050000

Unavailable

10

Compression spring L=25mm D=0.

58038023400

Unavailable

11

SHIFT RAIL 11,8X105MM

59034020000

Unavailable

12

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

13

Shift fork 2/3 gear

61734002000

Unavailable

14

Shift fork 1/4 gear

61734001000

Unavailable

15

HH collar screw M6x20 TX30

0024060206S

Unavailable

16

LOCKING LEVER CPL.

61434024000

Unavailable

17

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

18

SPRING - LOCKING LEVER

61234023000

Unavailable

19

Hexagon socket screw, DIN0912-

0912060309S

Unavailable

20

SHIFT LOCATING DRUM CPL.

61434015000

Unavailable

21

BALL BEARING 61805 C3

0625618050

Unavailable

22

Shift fork 5/6 gear

61734003000

Unavailable

23

GROOVED BALL BEARING 6808 JRC3

0625068080

Unavailable

24

Selector drum 6 gear

61734012001

Unavailable

25

Magnet bracket cmpl.

79234012020

Unavailable

26

MAGNET HOLDER

61434050000

Unavailable

28

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

29

Gear position sensor

A60011023000

Unavailable

30

Gear shift lever cmpl.

61734031033C1

Unavailable

33

Round head scr. ISR M6x18-A2-7

0738060185

Unavailable

34

Gear shift lever, foot peg

61734032000C1

Unavailable

35

Rubber Step Shiftlever

61734035000

Unavailable

36

AH-COLLAR SCREW M8X15 TORX45

0035080156S

Unavailable

37

Shift rod cmpl.

61334036044

Unavailable

38

Oval head screw ISR M6x22-A2-7

0738060225S

Unavailable

39

Spacer bushing

61703038060C1

Unavailable

40

Gear linkage

61734030000C1

Unavailable

41

Oval head screw ISR M6x20-A2-7

0738060205S

Unavailable

42

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

43

Collar screw M6x22

0900000602201S

Unavailable
