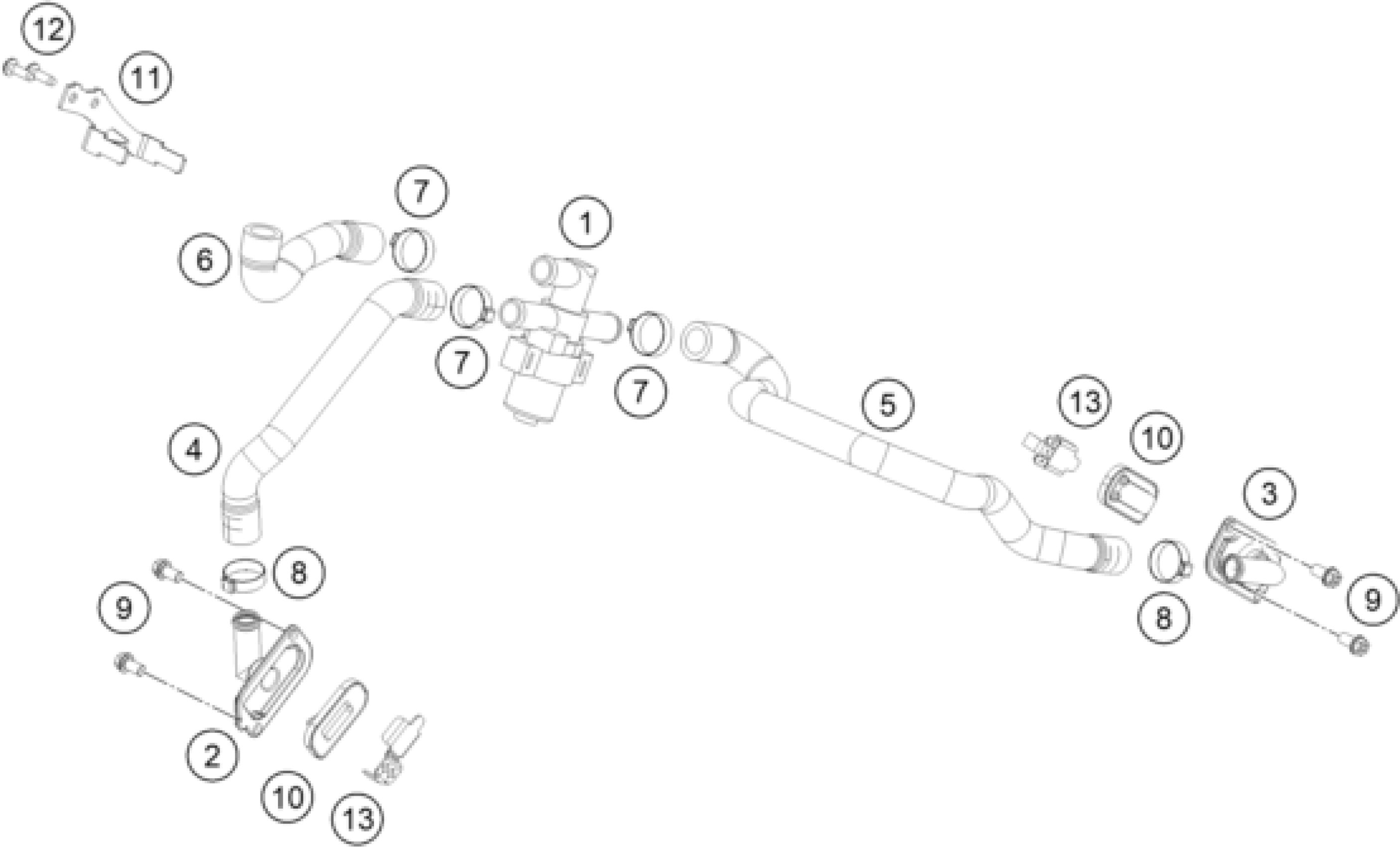

KTM 1390 SUPER DUKE R, black 2024 SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

1

CONTROL VALVE SAS 05

61005026000

$132.76

2

Secondary air system flange

61705022000

$35.33

3

SAS-FLANGE

61205032000

$18.97

4

SAS hose cylinder, front

A62405035021

$20.66

5

SAS hose cylinder, rear

A62405035022

$33.56

6

SAS hose air filter box

A62405035023

$20.19

7

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

8

VARIABLE ONE-EAR CLAMP 22,0MM

00050220706

$3.08

9

HH collar screw M6x12 TX30

0025060126

$3.08

10

SAS Reed Valve

60005026000

$21.50

11

SAS retaining bracket

A62405025010

$30.85

12

EJOT PT SCREW K50X16 1451

0081050161

$1.49

13

SAS heat shield

61705031000

$10.84
