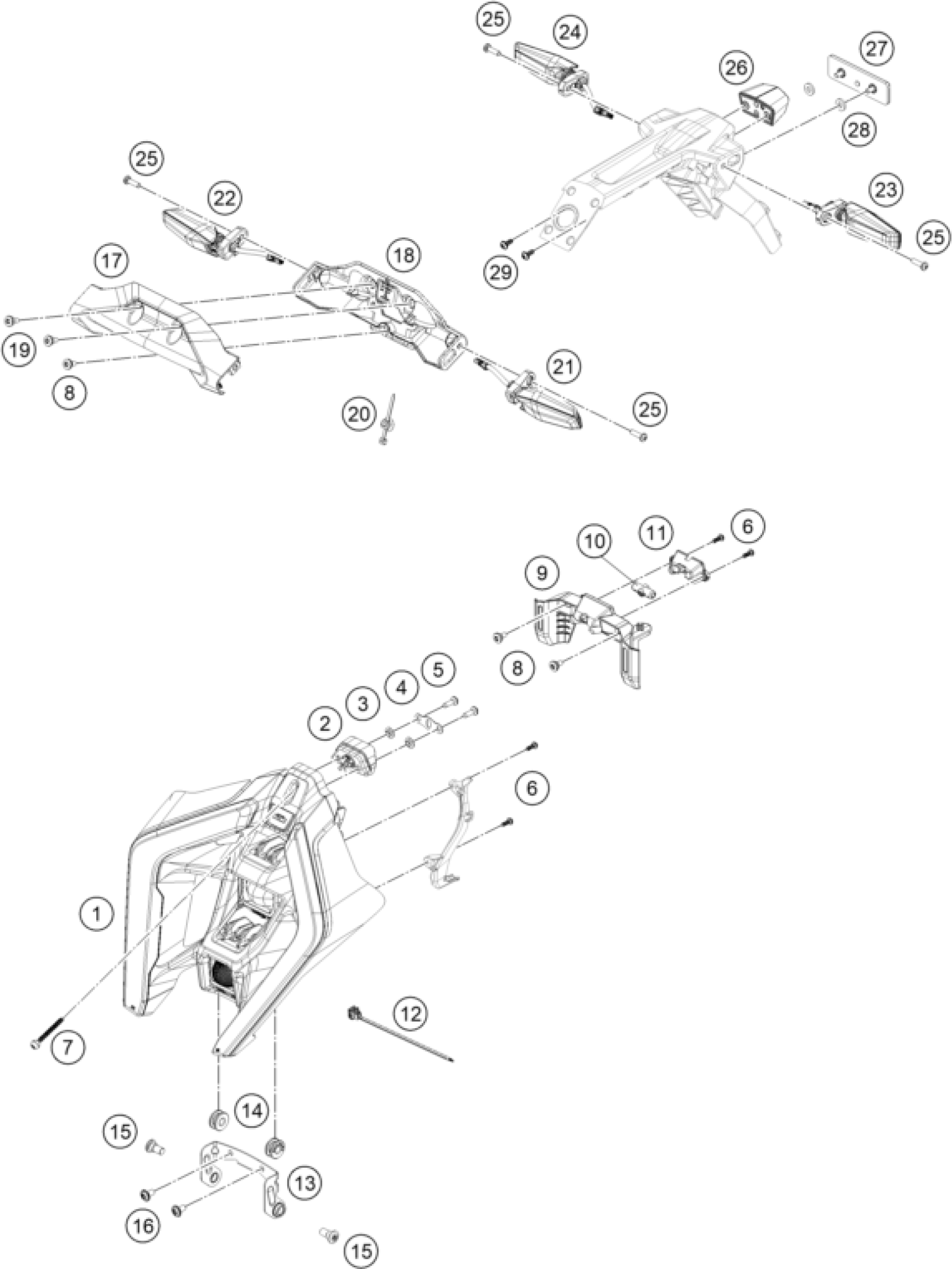

KTM 1390 SUPER DUKE R, black 2024 LIGHTING SYSTEM Diagram

#

Description

Price

1

Headlight

A62414001000

$986.51

2

Ball-head holder

A62414020000

$5.60

7

Ball-head screw L=50

0900000505001

$4.48

4

Failure protection ball head

A62414020011

$7.56

3

Collar bushing 5.5x7x13x3.3

61412132010

$1.49

5

EJOT PT SCREW K50X16 1451

0081050161

$1.49

14

Rubber grommet

61614013150

$2.05

15

Special screw M10x1.5

009221001600

$6.07

6

EJOT Delta PT K40x12

0081040121

$3.08

8

special screw M5x12

69008021160

$4.11

9

Headlight carrier top

A62414011001

$18.88

11

Top headlight carrier

A62414011002

$9.72

10

Screwshaft

61614019100

$2.05

12

Edge clip cable tie

0330000416000

$8.13

13

Bottom headlight carrier cmpl.

A62414010133C1

$56.93

16

Oval head screw ISR M6x12-A2-0

0738020601200

$1.49

17

Turn signal bracket front

A62414032002

$20.00

18

Turn signal bracket rear

A62414035000

$23.18

19

Special screw, M5x14

69008021260

$2.05

20

Cable strap w.plug-in foot for

61711094100

$2.05

21

Turn signal ECE front left/rea

T03014025000

Unavailable

22

Turn signal ECE front right

T03014026000

Unavailable

25

Flat-head screw ISO 14583-M5x1

0145830501800

$4.01

23

Combined turn signal ECE

T03014050000

Unavailable

24

Combined turn signal rear righ

T03014051000

Unavailable

26

License plate lighting

60314147000

$27.67

29

EJOT PT screw K50x12

0081050121

$2.05

27

Rear reflector red

58412080400

$5.23

28

RUBBER 14X6.5X2.3MM

60408061050

$5.23
