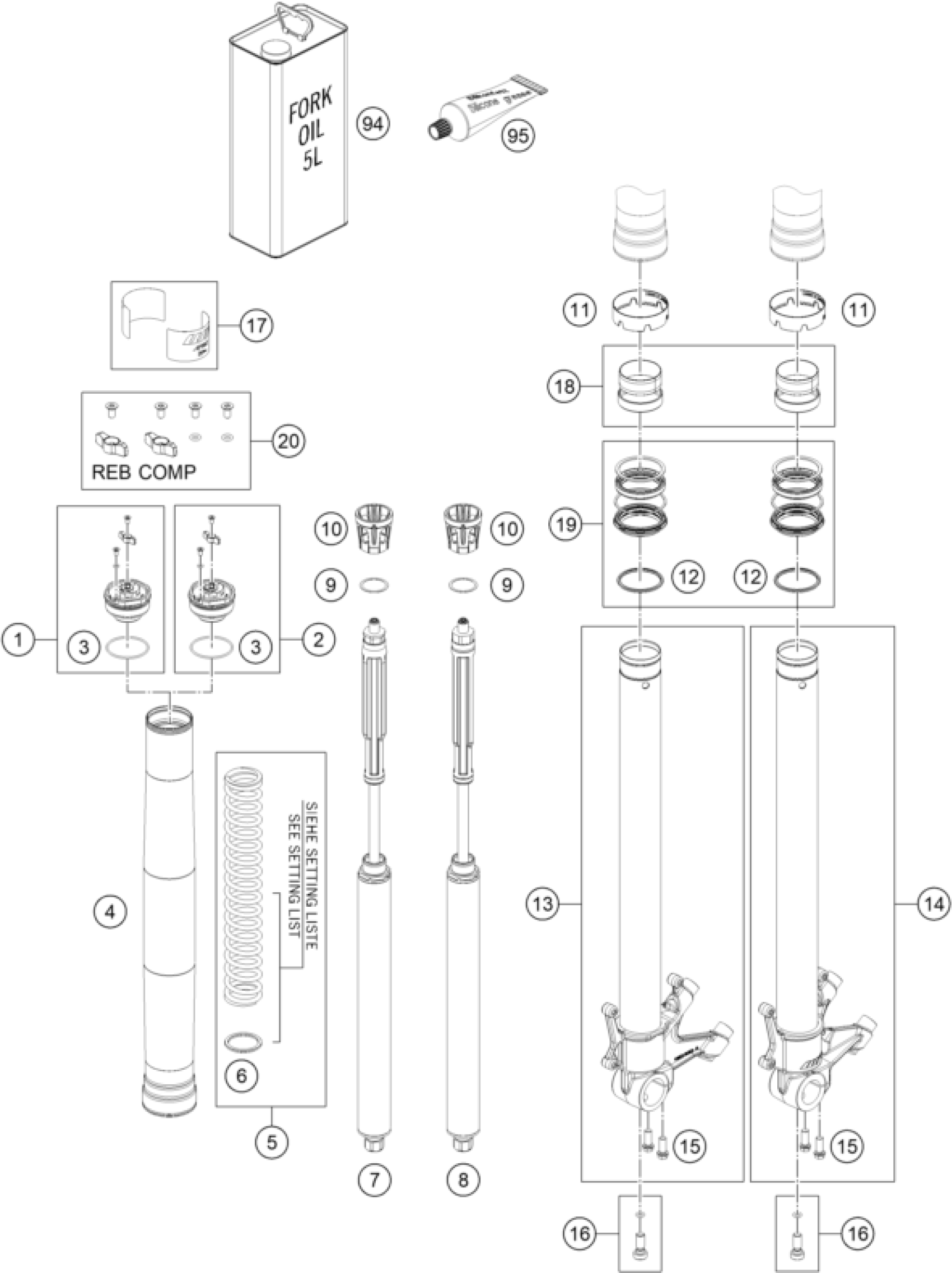

KTM 1390 SUPER DUKE R, black 2024 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

screw cap M51x1.5 rebound cpl.

48602129S1

$151.09

2

Screw cap M51x1.5 compression

48602129S2

$151.65

3

O-ring 46x2 NBR70 siliconized

48600048

$3.08

4

Fork outer tube 19,13x515 dt54

48601931

$234.02

5

Main spring fork cmpl.

S809800002S0000

Unavailable

6

Washer 35x43x1,5 plastic

48600458

Unavailable

6

Washer 35x43x2,5 plastic

48600456

Unavailable

6

Preload bush 35x43x3,5

48600457

Unavailable

7

Catrdige right cmpl. R

S963500000S0000

Unavailable

8

Catridge left cmpl. R

S963500001S0000

Unavailable

9

Shim 27,5x33x0,3

48601702

$10.74

10

Spring retainer 27,08x43x45

48601298

$5.88

11

Fork protection ring 60,1mm

48601986

$2.05

12

Stroke indicator 48mm red

48602007

$4.11

13

Fork fist right cpl. R

S444800010S0000

Unavailable

14

Fork fist left cpl. R

S444800011S0000

Unavailable

15

HH collar screw M8x20

0025080206

$2.05

16

AH SCREW M10X20 SET

00501020S1T

$3.26

17

Sticker set, APEX PRO OC 90x40

52000209SET

$46.74

94

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

95

Fuchs grease IPR (250g)

T14034

Unavailable

18

Guide bushing set fork 48mm

R14047T

Unavailable

19

Seal kit 48mm SKF black

RP10048T

Unavailable

20

Adjuster Kit screw cap

RP10021T

Unavailable

5

S809800028S0000

Unavailable
