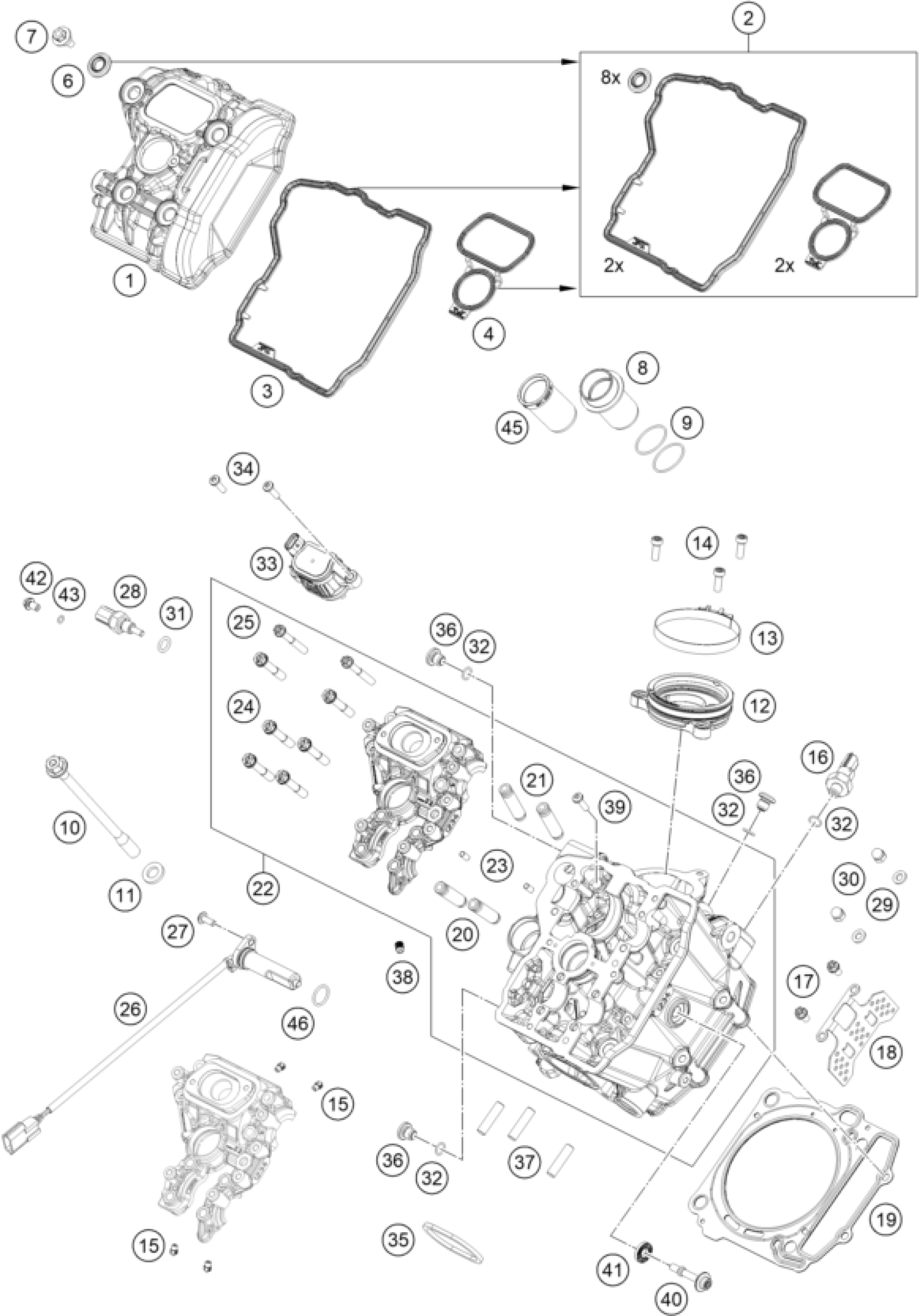

KTM 1390 SUPER DUKE R, black 2024 CYLINDER HEAD FRONT Diagram

#

Description

Price

1

Valve cover front

A60036052000C1

$45.99

2

VALVE COVER GASKET SET

A62436099044

$49.64

6

Sealing element

77036054250

$4.11

7

VALVE COVER SCREW

77336054150

$5.23

8

Spark plug shaft inser

A60036075000

$20.28

9

O-RING 29,87X1,78 VITON

0770298178

$2.05

10

CYLINDER HEAD SCREW 08

61236079000

$15.79

11

WASHER 11,1X20X3 08

61236079050

$5.51

12

Intake sleeve

A60036044000

$38.23

13

HOSE CLAMP GEMI 75

61336048000

$14.30

15

oil jet 50 M5

60030063050

$9.44

16

oil pressure switch ''BITRON''

61238091100

$33.46

19

Cylinder head gasket

A60030036075

$41.79

37

STUD M 8X16 10.9

0835080165

$3.08

22

Front cylinder head

A6003622004424

$849.63

23

needle roller DIN 5402 5x9.8

0402050980

$1.49

24

Collar screw M7x1x38

0000150703800

$1.49

28

water temperature sensor

79435047000

$23.74

29

WASHER DIN0125-A 6,4

0125060003

$1.49

30

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

31

o-ring 10.00x2.00 silicone

0770100020

$2.05

32

O-RING 9X1,5 NBR

0770090015

$2.05

35

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

36

SCREW PLUG

77336056095

$7.00

42

VENT SCREW M6X10 CPL.

59036006090

$4.11

43

O-RING 5,0X1,2 NBR 70

0770050012

$1.49

45

INSERT SPARK-PLUG SHAFT

61336074100

$22.71

19

Cylinder head gasket

A60030036085

Unavailable

19

Cylinder head gasket

A60030036095

Unavailable

25

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

18

Lock washer

A60036055000

$10.74

17

Hex collar screw M6x10 ISA30 S

0025060106S

$1.49

14

SHCS ISO 14580 M6x16 SL

014580060166S

$2.05

3

Valve cover seal

A60036053000

$4.76

4

Spark plug shaft seal

A60036075050

$2.80

27

Oval head screw M5x14 TX25

58605083014

$3.08

26

Sliding piece position sensor

A60036085000

$127.71

33

Double pin actuator

A60036084000

$167.08

34

Flat-head screw ISO 14583-M5x1

0145830501800

$4.01

20

VALVE GUIDE EXHAUST 08

61236026001

$25.70

21

VALVE GIUDE INTAKE 6MM

61236025001

$22.43

40

valve mechanism cover screw

75036055000

$4.11

41

decoupling element

75036052010

$4.11

38

SCREW PLUG

59030296000

$6.26

39

Flat-head screw ISO 14583-M5x1

0145830501800

$4.01

46

O-ring 16x2 Viton 75

0770160021

$3.08
